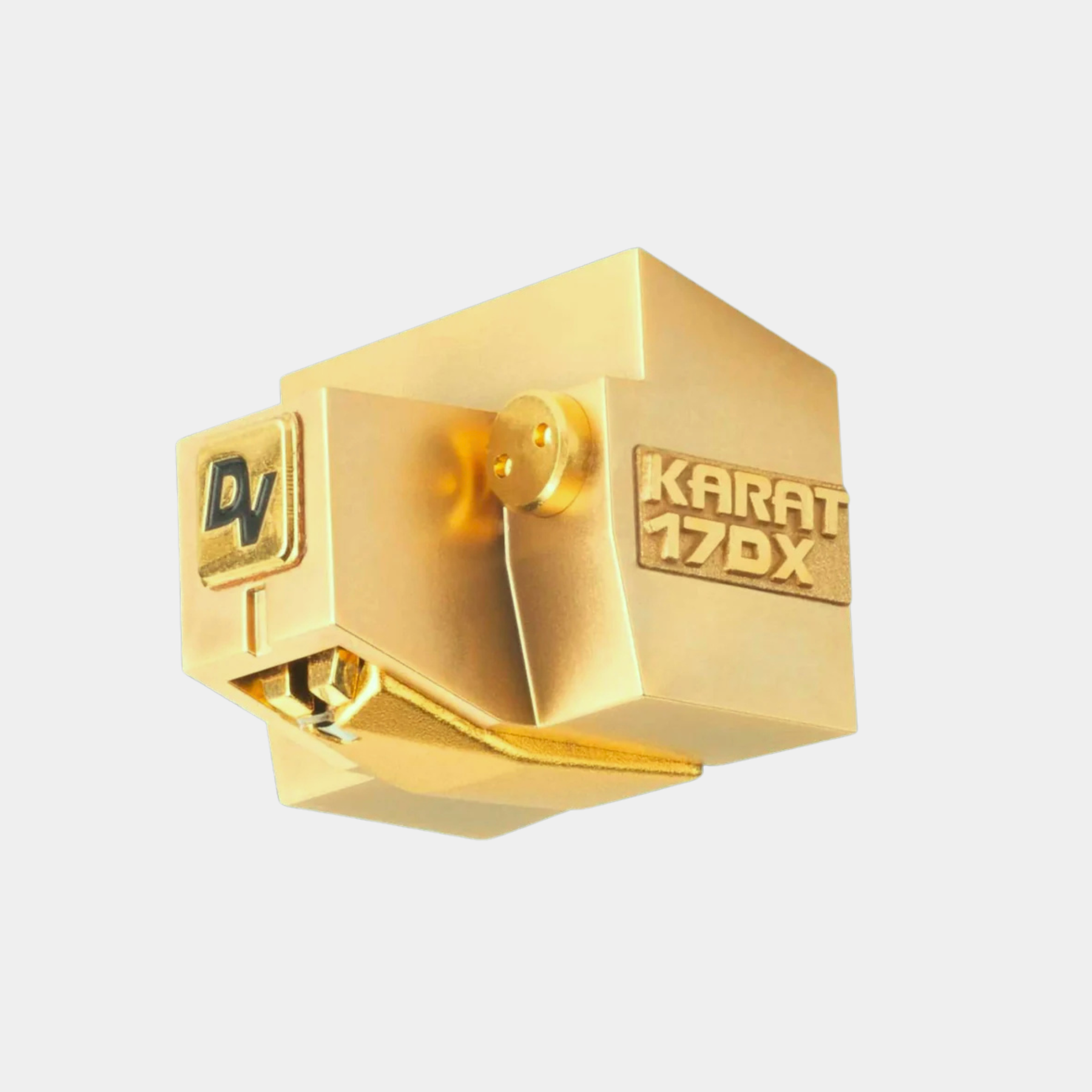

Dynavector DV Karat 17DX Low-Output Moving Coil Cartridge
Dynavector DV Karat 17DX Low-Output Moving Coil Cartridge

Dynavector DV Karat 17DX Low-Output Moving Coil Cartridge

Regular price£1,599.00
/
Tax included. Shipping calculated at checkout.

  • Free Mainland UK Shipping on orders over £100
  • Official Hi-Fi Retailer since 1973
  • Usually in stock and dispatched in 1-5 working days

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

We offer free delivery on all orders over £100 to mainland UK. Orders under £100 are subject to a £6.50 shipping charge.

Delivery is available across mainland UK. If you are located outside mainland UK and would like a shipping quote, please get in touch before placing your order.

We aim to dispatch in-stock items as soon as possible provided that we physically have the stock - but please note that sometimes we have to order from our supplier for certain products, in which case delivery should take place within 1-5 working days of the order being placed.

Tracking details or estimated delivery timescales will be provided once your order has been processed. If there are any delays due to stock availability, we will contact you as soon as possible with the option to wait or receive a full refund.

Please note that certain products may be subject to specific distance selling or delivery regulations. If you are unsure about a product or its delivery terms, we recommend contacting us before purchase.

You can cancel your order within 14 days of receiving your goods, in line with UK distance selling regulations. Once you’ve notified us, you have a further 14 days to return the item. Please contact us by email, phone or in writing before sending anything back.

Items must be returned in original condition and packaging, including all accessories, manuals and any promotional items. The cost of return is your responsibility and we strongly recommend insuring the goods, as refunds cannot be issued for damaged or incomplete returns. If items show excessive handling, are missing components, or cannot be resold as new, a reasonable deduction may be made.

Please note that used headphones (for hygiene reasons) and custom or special-order items cannot be returned. If you need assistance arranging a return, we’re always happy to help.

Product Summary

The Dynavector DV Karat 17DX is a highly specialised low-output moving coil cartridge that continues the legendary KARAT series tradition of ultra-short cantilever design. By dramatically reducing cantilever length, Dynavector minimises mechanical resonance and improves the speed and accuracy with which vibrations travel from the stylus to the generator.

The cartridge features an exceptionally short 1.7 mm solid diamond cantilever paired with a Micro-Ridge stylus. This advanced design allows the cartridge to track record grooves with outstanding precision while retrieving extremely fine musical detail.

A solid brass body provides improved rigidity and resonance control, while samarium-cobalt magnets and Dynavector’s magnetic flux damping system help stabilise the magnetic circuit and reduce distortion. These engineering choices result in a cartridge capable of delivering remarkable transparency, speed and tonal accuracy.

Designed for use with high-quality moving coil phono stages, the DV Karat 17DX is a superb choice for serious vinyl enthusiasts seeking exceptional resolution and dynamic realism from their analogue system.

Key Benefits

  • Low-output moving coil phono cartridge
  • Ultra-short 1.7 mm solid diamond cantilever
  • Micro-Ridge stylus for precise groove tracing
  • Solid brass body improves rigidity and resonance control
  • Samarium-cobalt magnet system for stable magnetic flux
  • Dynavector magnetic flux damping technology
  • Extremely fast transient response and excellent detail retrieval
  • Wide soundstage with exceptional imaging
  • Designed for high-performance moving coil phono stages
  • Precision Japanese engineering

Technical Specifications

Cartridge Design

  • Type: Low output moving coil cartridge
  • Stylus: Micro-Ridge line contact diamond
  • Cantilever: 1.7 mm solid diamond
  • Body: Solid brass construction

Electrical Performance

  • Output Voltage: approx. 0.3 mV (1 kHz, 5 cm/sec)
  • Internal Impedance: approx. 32 Ohms
  • Recommended Load Impedance: >100 Ohms
  • Channel Separation: approx. 25 dB (1 kHz)
  • Channel Balance: approx. 1.0 dB

Playback Performance

  • Frequency Response: 20 Hz – 20 kHz (±1 dB)
  • Compliance: approx. 15 mm/N
  • Recommended Tracking Force: 1.8 – 2.0 g

Physical

  • Weight: approx. 11 g
  • Mounting: Standard 1/2 inch headshell mount
  • Threaded mounting holes

What’s in the Box

  • Dynavector DV Karat 17DX moving coil cartridge
  • Stylus guard
  • Mounting screws and hardware
  • Product documentation
