Atlas Eos 1.5em UK Mains Power Cable
- UK Wide Shipping Available
- Long established Official Retailer
- Usually in stock and dispatched in 1-5 working days

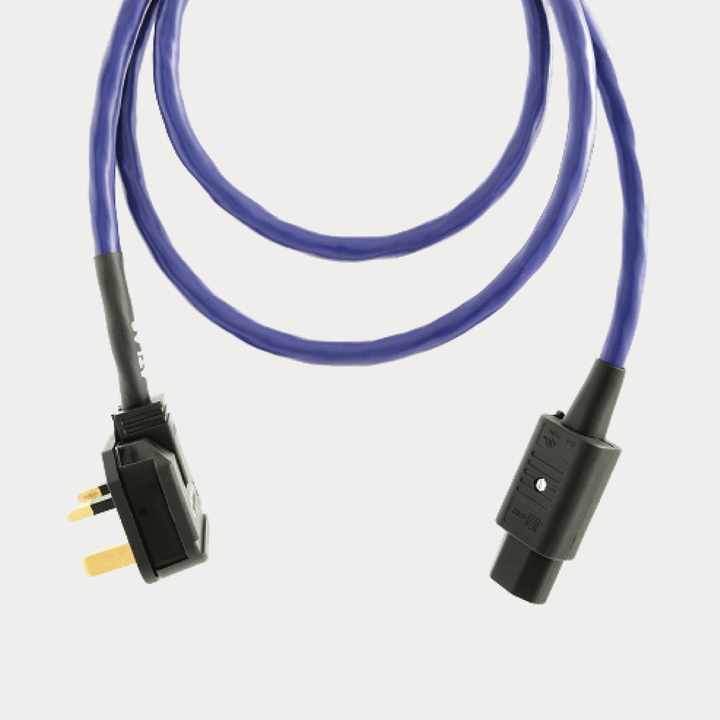

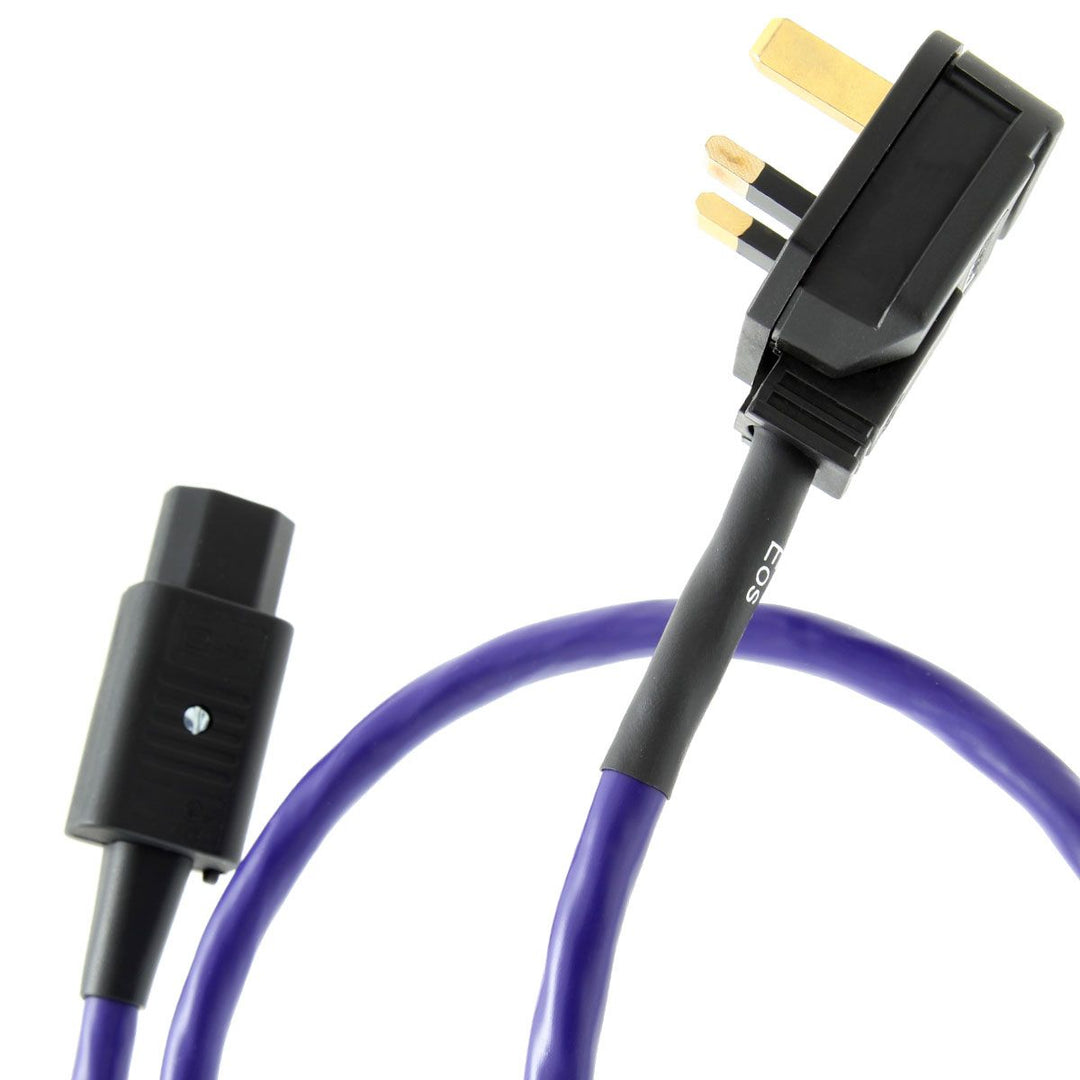

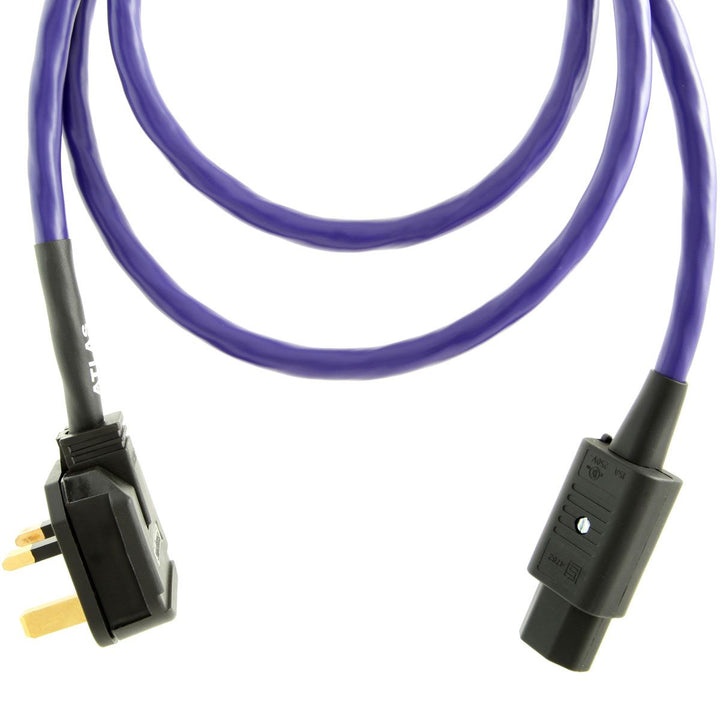

Atlas EOS 1.5em UK Mains Power Cable
It’s long been known that the quality of mains power can have a real impact on the performance of hifi & home cinema systems. A quality power supply to your components requires cables designed to be resistant to both external RF interference and generated noise on the mains itself.
The Eos 1.5em Power Cable uses OFC conductors in a sophisticated fully screened configuration, implementing Atlas' ‘dd’ (dual drain) screening in an entry-level power cable for the first time.
Electical, radio frequency and electromagnetic noise pollution floods our homes and daily life. Our replay equipment has come under assault by extraneous high energy broad spectrum noise, both airborne and directly induced through the mains supply circuits. Wi-fi networks, BlueTooth devices, mobile & domestic cordless phones, ‘wallwart’ power adapters, low voltage light bulbs & dimmer switches are among the worst noise-generating culprits.
Eos power cables are designed specifically to allow your equipment to perform properly. Built around high purity low resistance OFC (Oxygen Free Copper), with low series resistance, high-efficiency dielectrics and extensive screening, Eos power cables effectively filter out harmful incoming radio frequency and power contamination, dumping these rapidly to earth.
The Eos 1.5em utilises our high purity, low resistance, oxygen free copper (OFC) conductors,contained in a highly-stabilised PVC dielectric. The dd (dual drain) conductors and the power conductors, are then enclosed by anti-vibration layer and an innovative hybrid carbon-loaded polymer screen. The assembly is then wrapped in a royal blue PVC sleeve.
Twin symmetrical drain wires connect the screen to the cable return/plug interface, meaning the cable can be terminated without distorting, twisting or mechanically stressing the screen. The benefits are a consistent low impedance load to the plug, and a total 360° screening against noise and signal loss caused by RFI (Radio Frequency Interference).
Features :
- Atlas EOS Mains Plugs
- OFC Conductors
- 1.5mm2 OFC conductors
- Dual Drain ('DD') System
- Stabilised PVC Dielectric
- Triple Multi-Core Construction
Atlas EOS Mains Plugs
Precision-machined Atlas-designed mains connectors with silver/rhodium-plated pins for low contact resistance. Available in UK (13A Silver), Schuko & Nema versions depending on country of original supply.
Oxygen Free Copper (OFC)
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
Atlas DD (Dual Drain) System
Normally screened cables suffer from screen distortion when they are prepared for production. (If you've ever wired a plug or connector which uses a screened cable, you've done this yourself, cutting back and probably twisting the screening braid for termination). This distortion of the screen has a measurable impact, effectively changing the impedance and therefore the performance of the cable.
Atlas' ‘dd’ configuration is based on a simplified version of the techniques they developed for their top-of-the-range Mavros and Asimi interconnects. Twin symmetrical drain wires (each attached to 180° segments of the plug) are inserted between a 100% copper/Mylar™ foil and screen. The unique dd system connects the screen effectively to the cable return/plug interface, meaning the cable can be terminated without distorting, twisting or mechanically stressing the precision-laid screen. The benefits are in maintaining a consistent low impedance load to the plug, and a total 360° screening against noise and signal loss caused by RFI (Radio Frequency Interference).
Triple Multi-Core Construction
A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.
Specification :
- Construction : Multicore, dual drain
- Material : OFC
- Dielectric : Stabilised PVC
- Screen : Carbon-loaded hybrid screen
- Capacitance : 95.08 pF/m
- Inductance : 0.43 µH/m
- Resistance : 0.0859 Ohm/m
- Outside Diameter : 9.5mm
- Current Capacity : 20A
