Product Summary

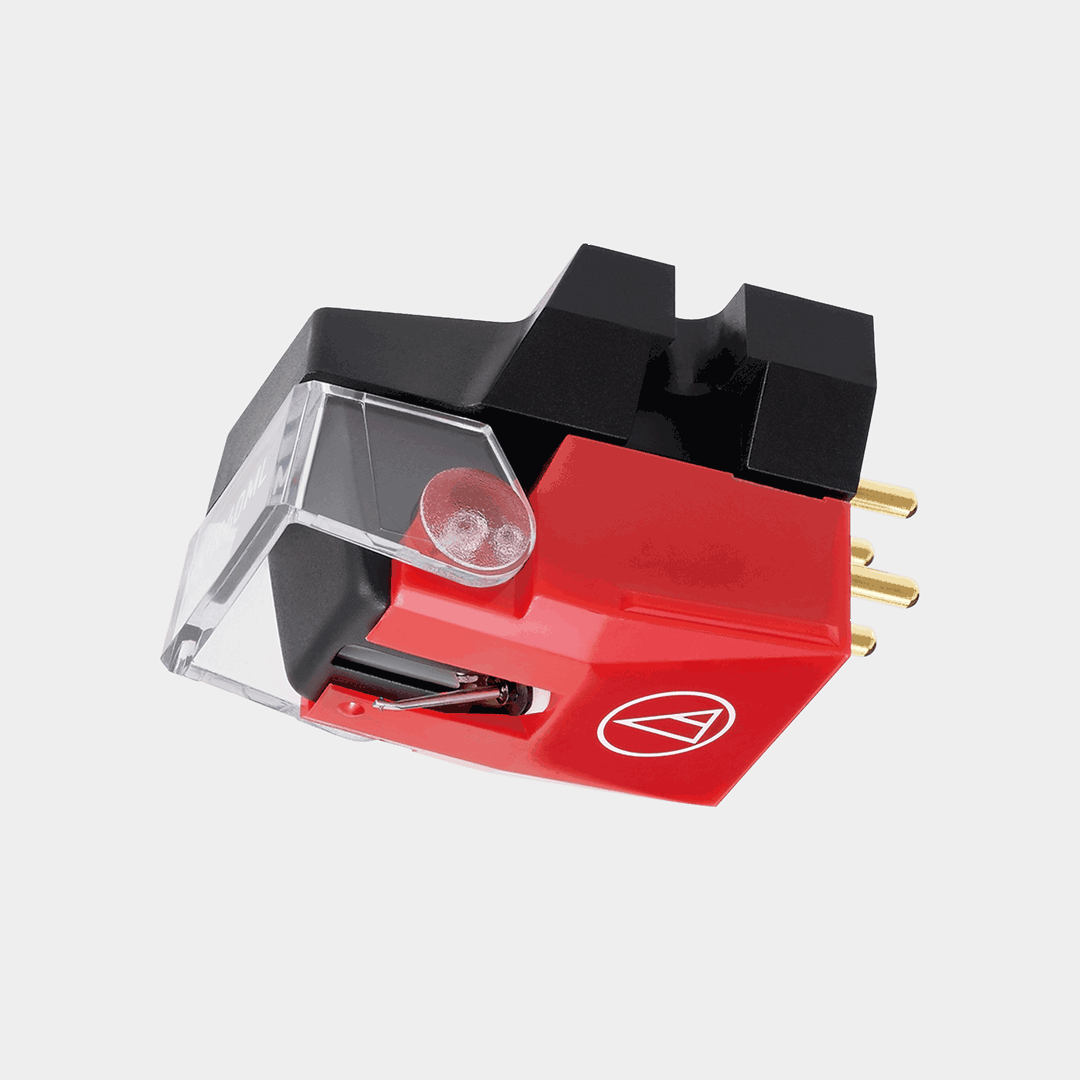

The Audio-Technica VM540ML is a high-performance moving magnet cartridge from the VM500 Series, designed to deliver exceptional detail, tracking accuracy and balanced sound reproduction. It uses Audio-Technica’s dual moving magnet generator system, where two magnets are aligned to correspond with the left and right groove walls of a stereo record for improved channel separation and accurate stereo imaging.
The cartridge features a MicroLine diamond stylus mounted on a tapered aluminium cantilever. This advanced stylus shape closely resembles the cutting stylus used during record mastering, allowing it to trace record grooves with exceptional precision while reducing inner-groove distortion and retrieving fine musical detail.
Designed for high-quality turntable systems, the VM540ML also includes para-toroidal coils for improved generating efficiency and a centre shield plate between the channels to reduce crosstalk. The stylus assembly can be replaced when worn using the VMN40ML replacement stylus, making long-term maintenance simple.
Key Features
- Dual moving magnet (VM) cartridge design
- MicroLine diamond stylus for extremely precise groove tracing
- Tapered aluminium cantilever
- Paratoroidal coils for improved generating efficiency
- Centre shield plate reduces channel crosstalk
- Replaceable stylus: VMN40ML
- Standard half-inch cartridge mount
Warranty
- Covered by Audio-Technica manufacturer warranty when purchased via an authorised retailer
- Your statutory consumer rights remain unaffected
Cartridge & Stylus
- Type: Dual Moving Magnet (VM / Moving Magnet)
- Stylus Shape: MicroLine
- Stylus Size: 2.2 × 0.12 mil
- Cantilever: Tapered aluminium
- Replacement Stylus: VMN40ML
- Mounting: Standard half-inch (1/2")
Performance
- Frequency Response: 20 – 27,000 Hz
- Output Voltage: 4.0 mV (1 kHz, 5 cm/sec)
- Channel Separation: 28 dB (1 kHz)
- Channel Balance: 1.0 dB (1 kHz)
- Vertical Tracking Force: 1.8 – 2.2 g (2.0 g standard)
- Vertical Tracking Angle: 23°
- Recommended Load Impedance: 47,000 ohms
- Recommended Load Capacitance: 100 – 200 pF
Physical
- Dimensions (H × W × D): approx. 17.3 × 17.0 × 28.2 mm
- Weight: approx. 6.4 g
What’s in the Box
- Audio-Technica VM540ML moving magnet cartridge
- Mounting screws (5 mm ×2, 10 mm ×2)
- Washers and nuts
- Non-magnetic screwdriver
- Stylus brush
- Lead wire set
- User documentation
Connectivity
- Connection: Standard cartridge pins via tonearm wiring
- Compatible With: Moving magnet (MM) phono stages
