Product Summary

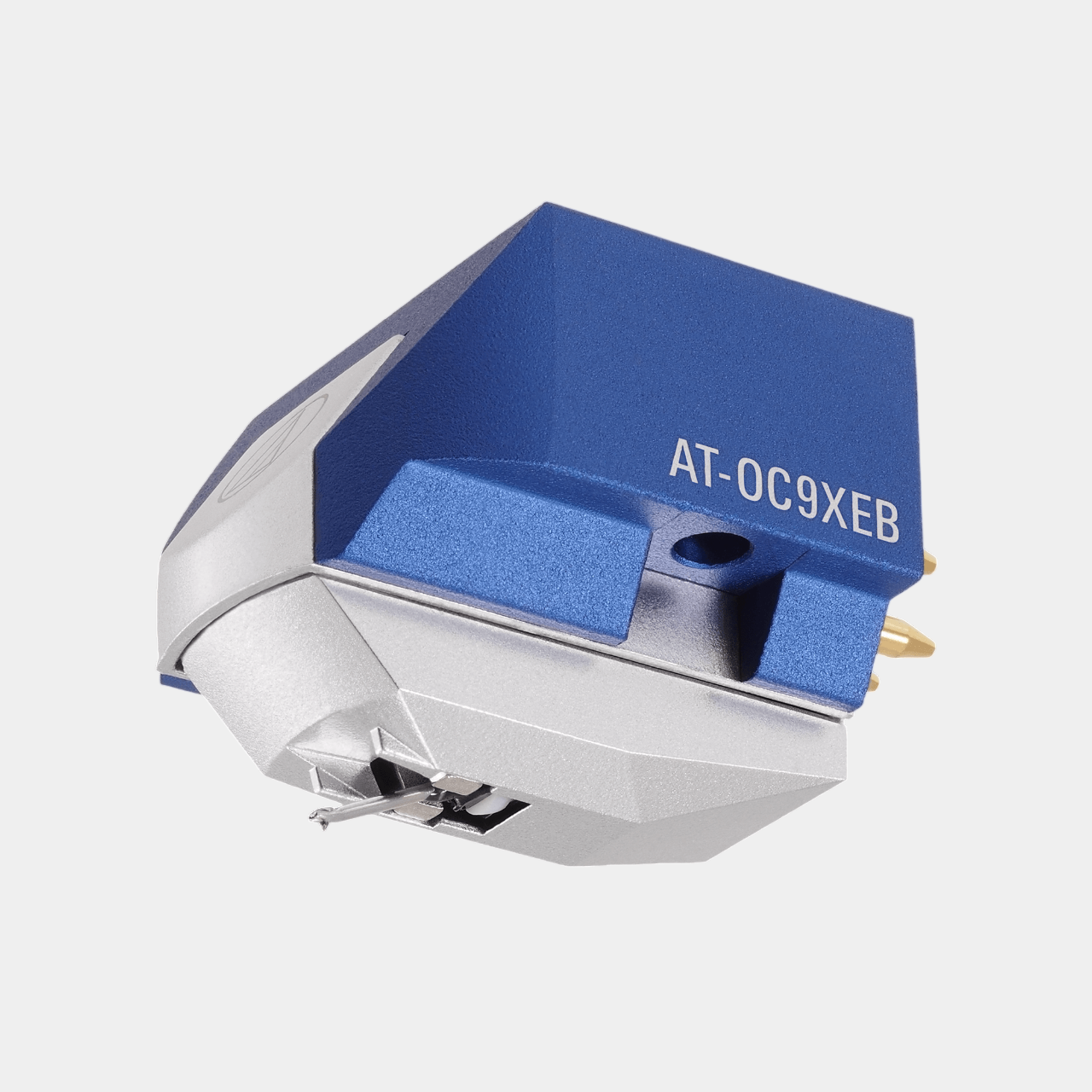

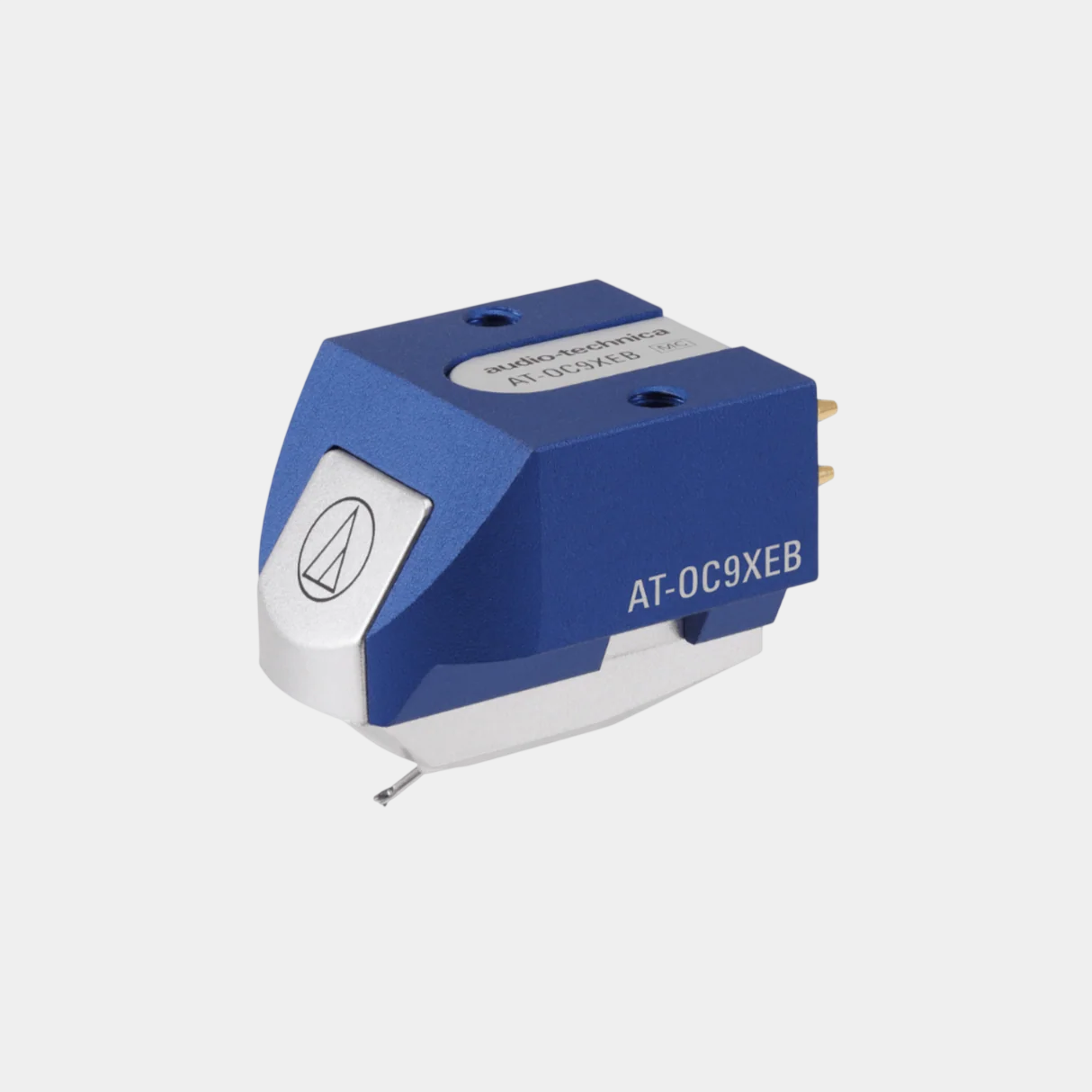

The Audio-Technica AT-OC9XEB is a dual moving coil phono cartridge designed to deliver detailed and dynamic vinyl playback. As part of the respected OC9X series, it combines Audio-Technica’s moving coil generator technology with carefully engineered materials for precise sound reproduction.
The cartridge features a 0.3 × 0.7 mil bonded elliptical stylus mounted on an aluminium cantilever. This stylus profile follows record groove modulation more accurately than a conical stylus, helping improve frequency response and reduce distortion during playback.
Audio-Technica’s dual moving coil design uses independent left and right channel coils arranged in a reverse V configuration. This layout helps reduce stylus pressure while improving channel separation and stereo imaging.
A rigid aluminium body helps minimise unwanted resonance, while a neodymium magnet and pure iron yoke increase magnetic energy for improved signal accuracy. Threaded mounting holes also simplify cartridge installation on standard headshells.
Key Benefits
- Dual moving coil phono cartridge for detailed analogue playback
- 0.3 × 0.7 mil bonded elliptical stylus
- Aluminium cantilever for stable tracking
- Reverse V dual coil arrangement improves stereo separation
- PCOCC copper coils support clean signal transmission
- Neodymium magnet and pure iron yoke enhance magnetic efficiency
- Rigid aluminium body reduces unwanted vibration
- Threaded cartridge body simplifies installation
- Standard ½-inch mount compatible with most tonearms
- Made in Japan
Technical Specifications
Cartridge & Stylus
- Type: Dual Moving Coil (MC)
- Stylus Shape: Bonded elliptical
- Stylus Size: 0.3 × 0.7 mil
- Cantilever: Aluminium pipe
Performance
- Frequency Response: 20 – 30,000 Hz
- Output Voltage: 0.32 mV
- Channel Separation: 25 dB (1 kHz)
- Channel Balance: 1.5 dB
- Vertical Tracking Angle: 20°
- Recommended Tracking Force: 2.0 g
- Tracking Force Range: 1.8 – 2.2 g
Electrical
- Coil Impedance: 12 Ω
- DC Resistance: 12 Ω
- Recommended Load Impedance: 100 Ω or higher
- Coil Inductance: 25 μH
Physical
- Mount Type: Standard ½-inch mount
- Dimensions: approx. 17.3 × 16.8 × 25.7 mm
- Weight: approx. 7.6 g
- Colour: Blue
What’s in the Box
- Audio-Technica AT-OC9XEB moving coil cartridge
- Cartridge installation screws (multiple lengths)
- Washers
- Non-magnetic screwdriver
- Stylus protector
- Cleaning brush
- Product documentation
