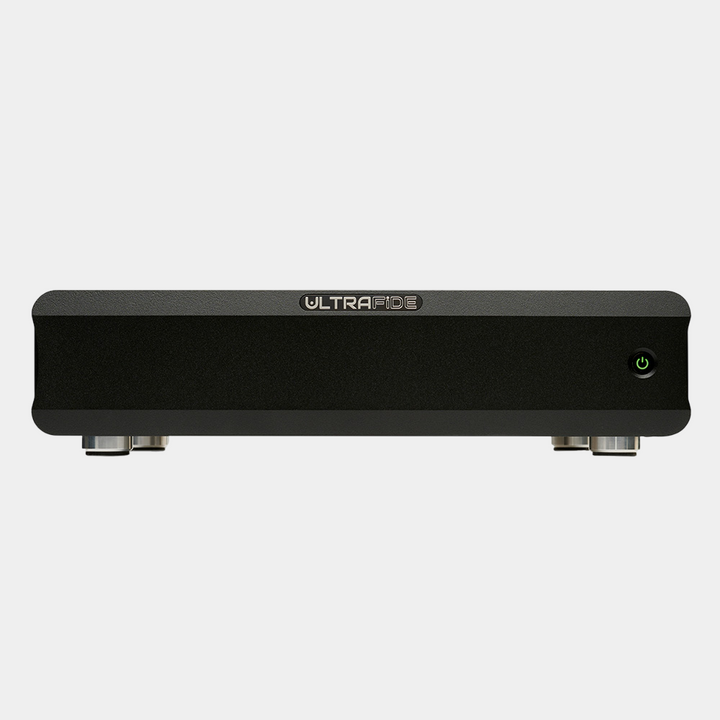

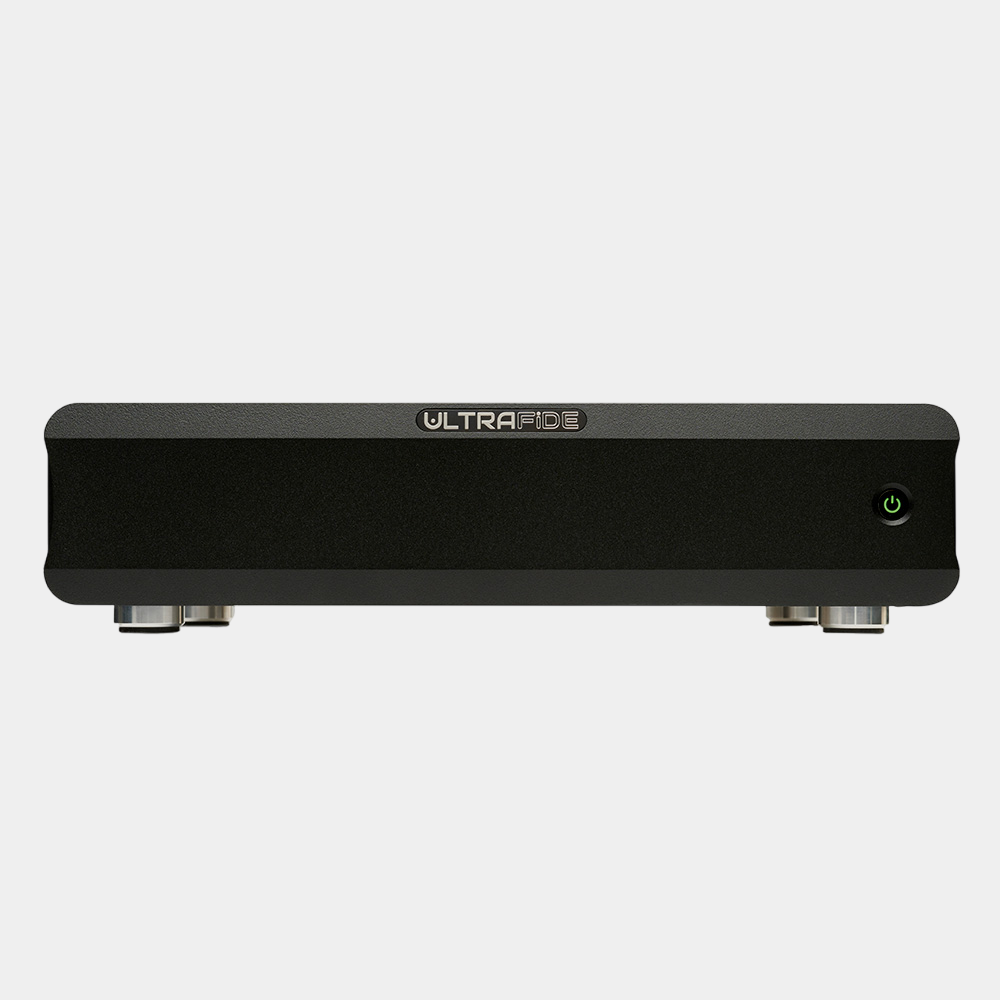

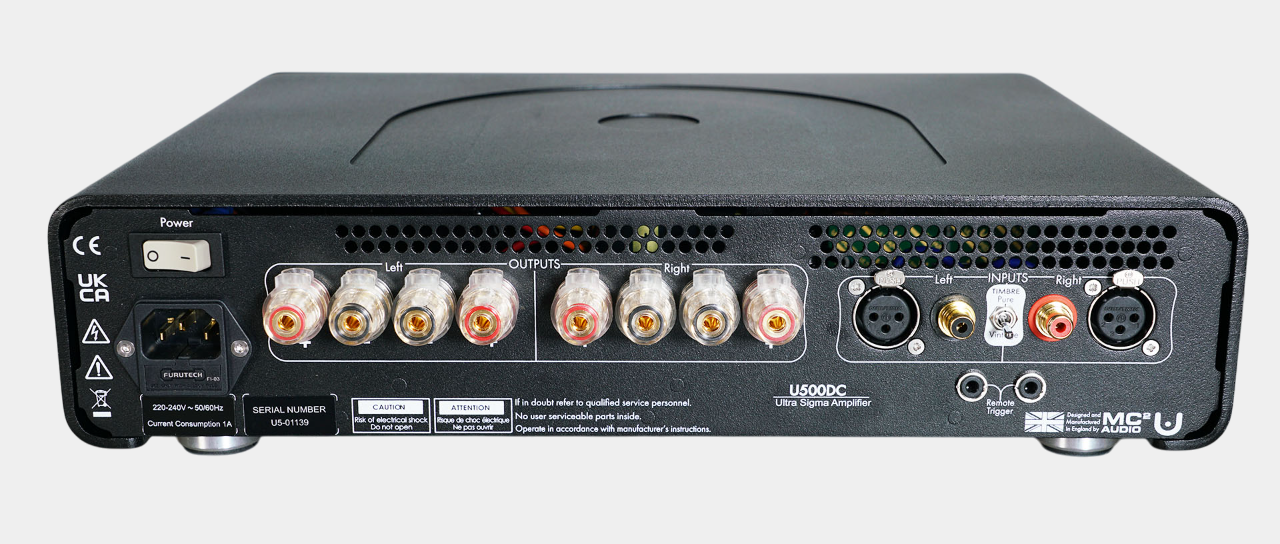

Ultrafide U500DC Power Amplifier
Ultrafide U500DC Power Amplifier
Ultrafide U500DC Power Amplifier
Ultrafide U500DC Power Amplifier

Ultrafide U500DC Power Amplifier

£4,500.00 GBP.
/
Tax included. Shipping calculated at checkout.
  • FREE UK Wide Shipping Available for purchases over £100
  • Long established Official Retailer
  • Buy Now, Pay Later with KLARNA or NOVUNA
  • Usually in stock and dispatched in 2-4 working days

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

A total start again process allowing freedom to over engineer.  Reinventing the Ultimate Amplifier, utilising years of experience.

  • 2 channels of 500W @ 4 Ohms | 250W @ 8 Ohms, Ultra high fidelity amplification
  • Brand New “ground up” design
  • “Ultra Sigma” design topology
  • Fully DC Coupled input to output
  • Class A driver stage
  • Bringing professional audio home
Specifications
  • CHANNELS: 2
  • INPUT / OUTPUT: Fully DC Coupled input to output
  • DRIVER STAGE: Class A
  • AUDIO INPUTS: 4
  • INPUT IMPEDANCE: 10k
  • OUTPUTS: 4
  • OUTPUT IMPEDANCE: 25mR
  • VOLTAGE GAIN: 26dB (x20), 29dB (x26)
  • SENSITIVITY: 2.2v
  • FREQUENCY RESPONSE: 5Hz-20KHz +/-3dB
  • POWER (PER CHANNEL) @ 4R: 500W
  • POWER (PER CHANNEL) @ 6R: 333w
  • POWER (PER CHANNEL) @ 8R: 250W
  • POWER (PER CHANNEL) @ 12R: 200W
  • POWER CONSUMPTION (OPERATIONAL): 200W average, 1,000W max
  • POWER CONSUMPTION (IDLE): 15W
  • POWER CONSUMPTION (STANDBY): 1W
