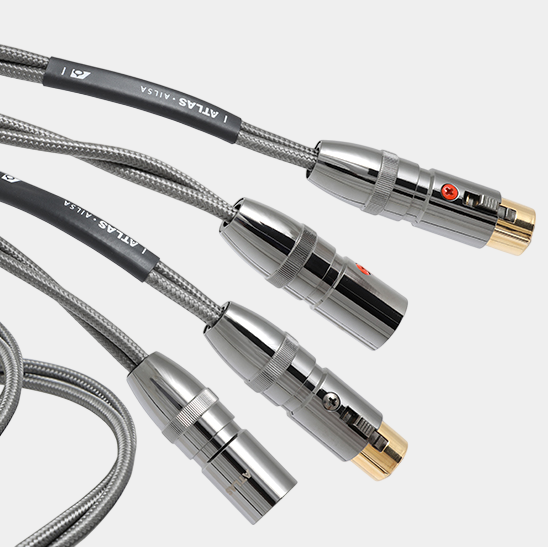

Atlas Ailsa XLR (3 pin)

The Ailsa OCC XLR is a wide-bandwidth interconnect designed to maximise the performance of high-performance audio systems using the increasingly popular XLR connectors. It incorporates our precision dd (dual-drain) system.
The Ailsa OCC XLR features an unusually sophisticated specification for an interconnect at this price point. The result is a beautifully balanced, open, accurate, natural sound, which we think defines a new performance standard at this level. It is an ideal upgrade choice for owners of any of our co-axial interconnect cables.
A symmetrical interconnect featuring four central multi-core conductors of ultra-high purity OCC (Ohno Continuous Casting) copper encapsulated within a microporous PTFE dielectric. Termination is with our aluminium alloy ‘dark Chrome’ XLR connectors with silver-plated OCC copper pins.

We based our ‘dd’ (dual-drain) configuration on techniques originally developed for our top-of-the-range Mavros and Asimi interconnects.Twin symmetrical drain wires connect the screen to the cable return/plug interface, allowing cable termination without distorting, twisting or mechanically stressing the precision-laid screen. Typically, screened cables suffer from screen distortion when prepared for production. Cutting and twisting the screening braid has a measurable impact, effectively changing the impedance and, therefore, the cable’s performance.

The benefits are maintaining a constant low impedance load to the plug and total 360° screening against noise and signal degradation caused by RFI (Radio Frequency Interference).

CONNECTOR TYPE:  OCC XLR

CONDUCTOR MATERIAL: OCC Copper

DIELECTRIC MATERIAL: PTFE

Specifications:
