Product Summary
The Anthem MCA 225 Gen 2 is a high-current two-channel power amplifier designed for demanding stereo and home cinema systems. Delivering 225 watts per channel into 8 ohms, with significantly greater output into lower impedances, it provides the control and headroom required to drive a wide range of high-performance loudspeakers.
A custom low-noise toroidal transformer, high-current bipolar output transistors and oversized aluminium heatsinks form the foundation of the MCA 225 Gen 2. Anthem's Advanced Load Monitoring technology continuously monitors operating conditions to provide dependable performance when driving difficult speaker loads.
Balanced XLR and single-ended RCA inputs make system integration straightforward, while trigger, automatic signal sensing and manual power modes allow the amplifier to work equally well in dedicated stereo systems or more complex AV installations.
Key Benefits
- High-performance 2-channel power amplifier
- 225W per channel into 8 ohms
- 400W per channel into 4 ohms
- 600W per channel into 2 ohms
- High-current bipolar output stage
- Custom low-noise toroidal transformer
- Advanced Load Monitoring technology
- 120dB signal-to-noise ratio
- Balanced XLR and RCA inputs
- High-quality speaker binding posts
- Manual, trigger and automatic signal-sensing power modes
- Designed and crafted in Canada
Technical Specifications
Amplification
- Channels: 2
- Power Output into 8 Ohms: 225W per channel
- Power Output into 4 Ohms: 400W per channel
- Power Output into 2 Ohms: 600W per channel
- Power Output Rating: Continuous, 20Hz - 20kHz, less than 1% THD
- Power Bandwidth: 90kHz (-3dB at 200W into 8 ohms)
- Voltage Gain: 29dB
- Slew Rate: 30V/µs
- Damping Factor: 300, 20Hz - 1kHz
- Signal-to-Noise Ratio: 120dB, IEC-A referenced to 225W
- THD+N at 100W / 1kHz: 0.0010%
Frequency Response
- 8 Ohms: 20Hz - 20kHz ±0.1dB
- 4 Ohms: 20Hz - 20kHz ±0.1dB
- 2 Ohms: 20Hz - 20kHz ±0.2dB

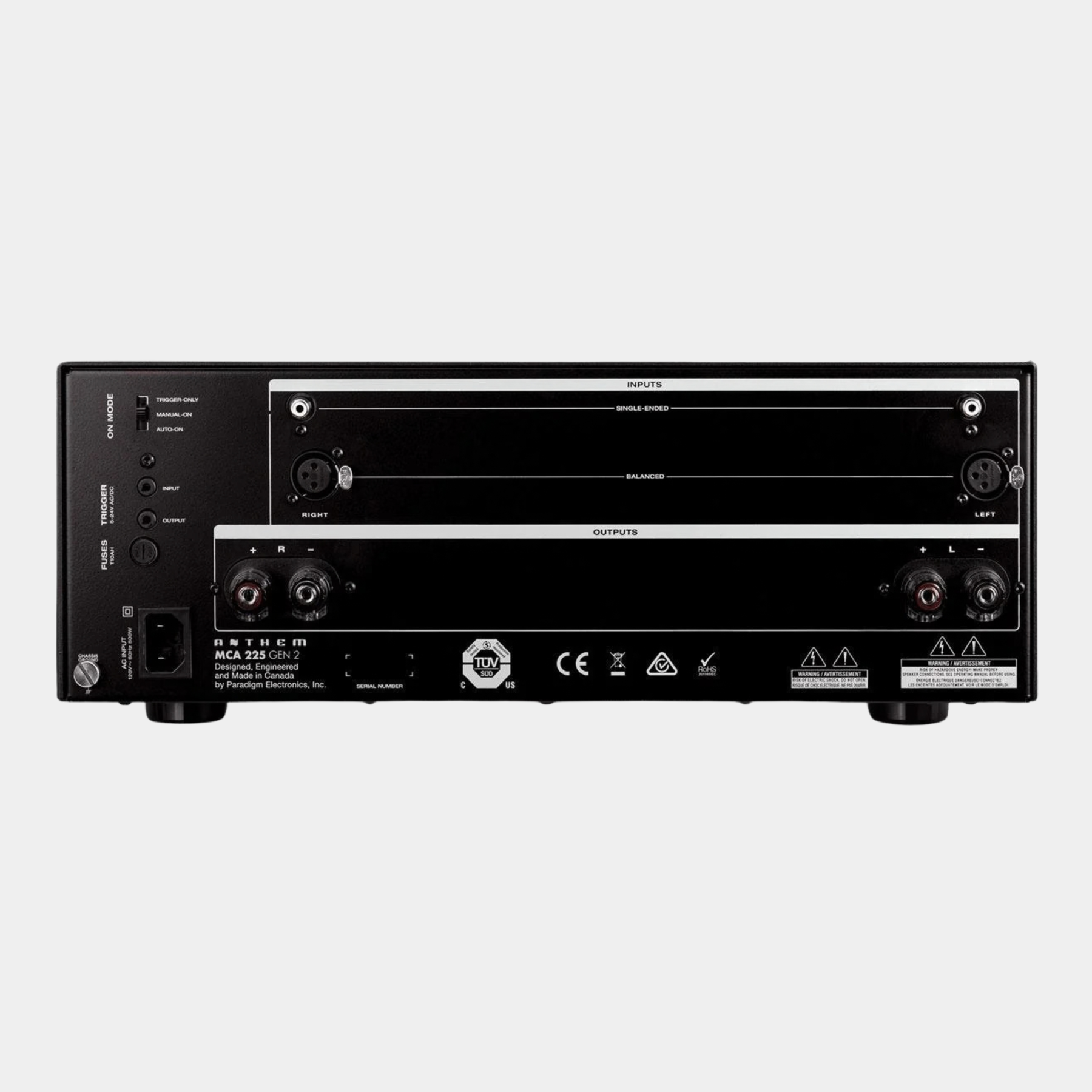

Inputs & Outputs
- 2 x Balanced XLR Inputs
- 2 x Single-Ended RCA Inputs
- 2 x Speaker Outputs via Binding Posts
- 12V Trigger Input
- 12V Trigger Output
- Chassis Ground Connection
Input Specifications
- Input Sensitivity: 1.5Vrms for 225W into 8 ohms
- RCA Input Impedance: 10k ohms
- XLR Input Impedance: 15k ohms
Power Control
- Manual-On Mode
- Trigger-On Mode
- Automatic Signal-Sensing Mode
- Standby Power Consumption: 1W
- Typical Power Consumption: 240W
- High Output Power Consumption: 500W
Dimensions & Weight
- Width: 438mm
- Height: 169mm
- Depth: 460mm
- Rack Height: 4U
- Weight: 18kg
What's in the Box
- 1 x Anthem MCA 225 Gen 2 Power Amplifier
- 1 x Mains Power Cable
- Documentation
