Anthem MCA 525 Gen 2 Multi-Channel Power Amplifier
- Free Mainland UK Shipping on orders over £100
- Official Hi-Fi Retailer since 1973
- Usually in stock and dispatched in 1-5 working days
We offer free delivery on all orders over £100 to mainland UK. Orders under £100 will be subject to a shipping charge starting at £4.50, where you may select a more premium option if desired.
Please note that the estimated time of arrival is measured from when we post your order - if a product is not available for immediate dispatch we will let you know as soon as possible.
Delivery is available across mainland UK. If you are located outside mainland UK and would like a shipping quote, please get in touch before placing your order.
We aim to dispatch in-stock items as soon as possible provided that we physically have the stock - but please note that sometimes we have to order from our supplier for certain products.
Tracking details or estimated delivery timescales will be provided once your order has been processed. If there are any delays due to stock availability, we will contact you as soon as possible with the option to wait or receive a full refund. In most cases however, orders are fulfilled within 1-5 working days.
Please note that certain products may be subject to specific distance selling or delivery regulations. If you are unsure about a product or its delivery terms, please do get in touch.
You can cancel your order within 14 days of receiving your goods, in line with UK distance selling regulations. Once you’ve notified us, you have a further 14 days to return the item. Please contact us by email, phone or in writing before sending anything back.
Items must be returned in original condition and packaging, including all accessories, manuals and any promotional items. The cost of return is your responsibility and we strongly recommend insuring the goods, as refunds cannot be issued for damaged or incomplete returns. If items show excessive handling, are missing components, or cannot be resold as new, a reasonable deduction may be made.
Please note that used headphones (for hygiene reasons) and custom or special-order items cannot be returned. If you need assistance arranging a return, we’re always happy to help.
Product Summary

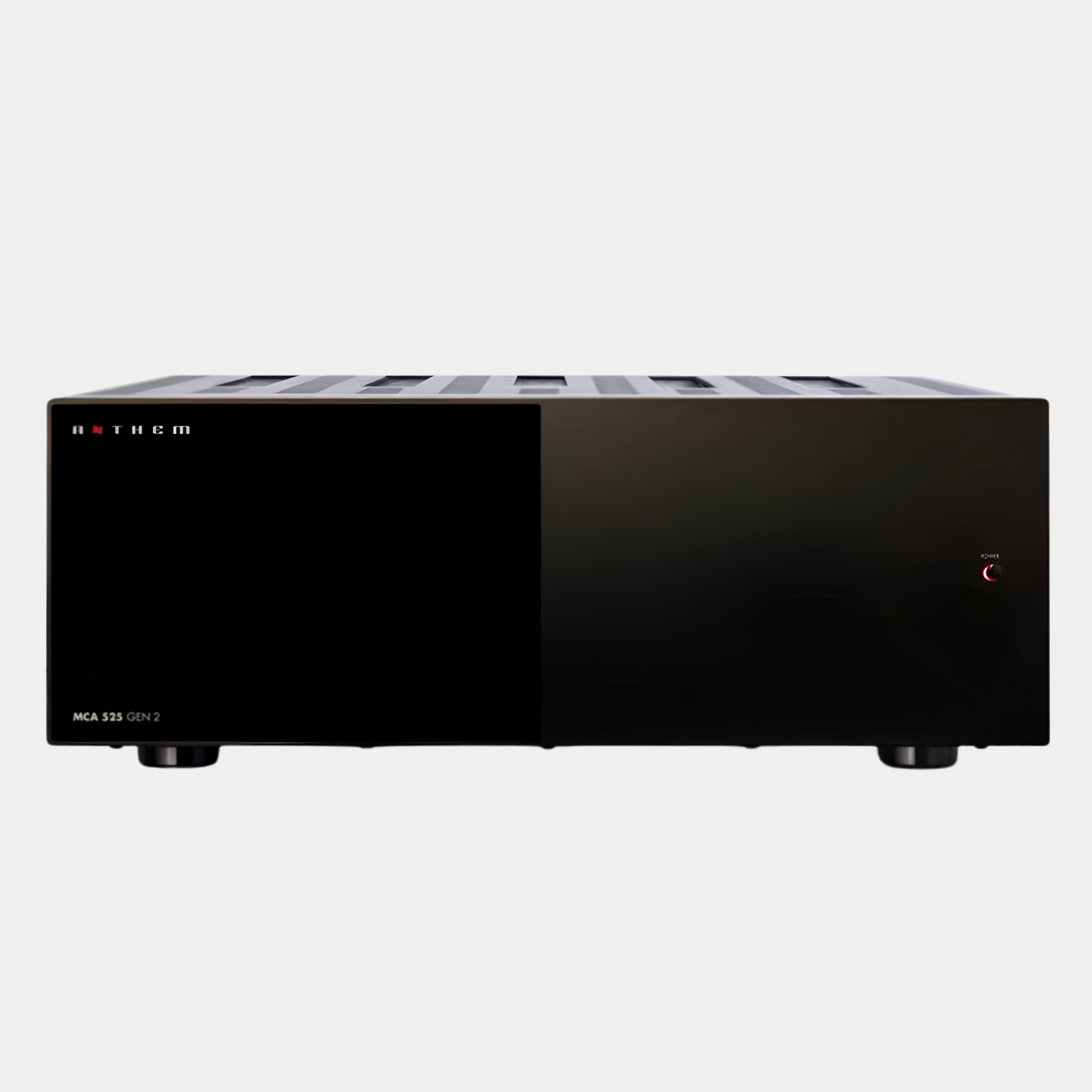

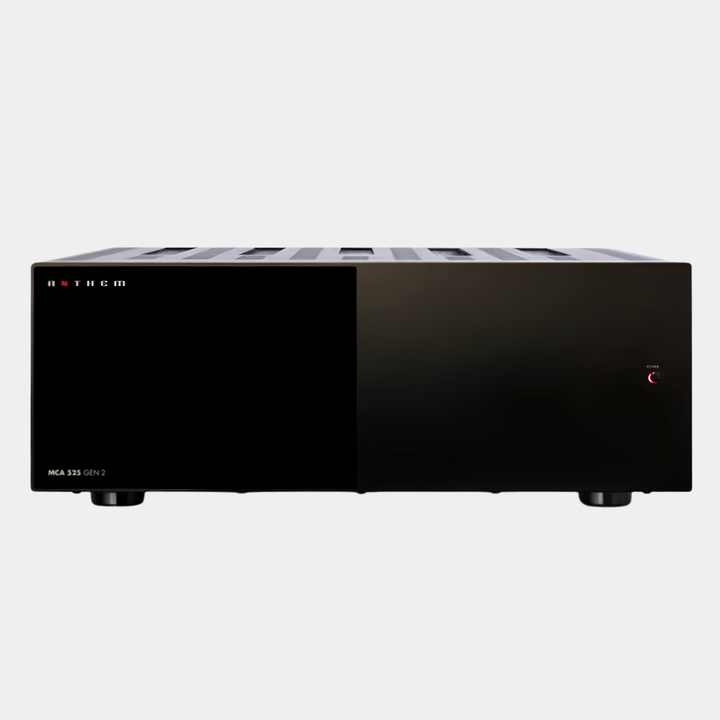

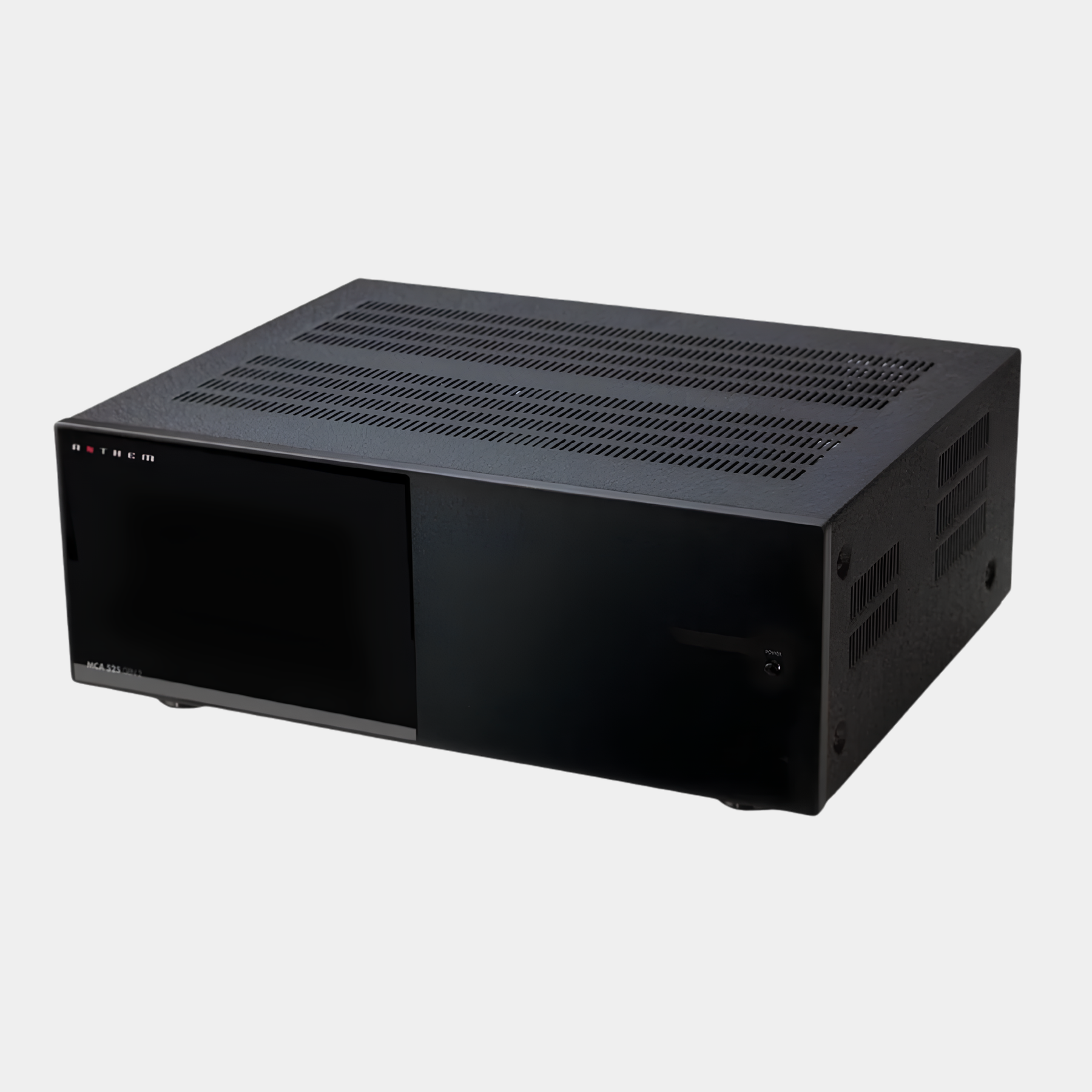

The Anthem MCA 525 Gen 2 is a powerful five-channel amplifier designed for premium home cinema and multi-channel audio systems. Delivering 225 watts per channel into 8 ohms, with substantially greater output into lower impedances, it provides the control and headroom required for demanding loudspeaker systems.
A custom low-noise toroidal transformer, high-current bipolar output transistors and oversized aluminium heatsinks provide clean and stable amplification across all five channels. Anthem's Advanced Load Monitoring technology also helps protect the amplifier and connected loudspeakers when driving difficult loads.
Balanced XLR and single-ended RCA inputs make integration straightforward, while manual, 12V trigger and automatic signal-sensing power modes allow the MCA 525 Gen 2 to fit easily into both dedicated cinema rooms and high-performance multi-channel systems.
Key Benefits
- High-performance 5-channel power amplifier
- 225W per channel into 8 ohms
- 400W per channel into 4 ohms
- 600W per channel into 2 ohms
- Ideal for premium multi-channel and home cinema systems
- High-current bipolar output stage
- Custom low-noise toroidal transformer
- Advanced Load Monitoring technology
- 120dB signal-to-noise ratio
- Balanced XLR and RCA inputs
- Manual, trigger and automatic signal-sensing power modes
- Designed and manufactured in Canada
Technical Specifications
Amplification
- Channels: 5
- Power Output into 8 Ohms: 225W per channel
- Power Output into 4 Ohms: 400W per channel
- Power Output into 2 Ohms: 600W per channel
- Power Rating: Continuous, 20Hz - 20kHz, less than 1% THD
- Power Bandwidth: 90kHz (-3dB at 200W into 8 ohms)
- Voltage Gain: 29dB
- Slew Rate: 30V/µs
- Damping Factor: 300, 20Hz - 1kHz
- Channel Separation: Greater than 65dB, 100Hz - 10kHz
- Signal-to-Noise Ratio: 120dB, IEC-A referenced to 225W
- THD at 100W / 1kHz: 0.0010%
Frequency Response
- 8 Ohms: 20Hz - 20kHz ±0.1dB
- 4 Ohms: 20Hz - 20kHz ±0.1dB
- 2 Ohms: 20Hz - 20kHz ±0.2dB

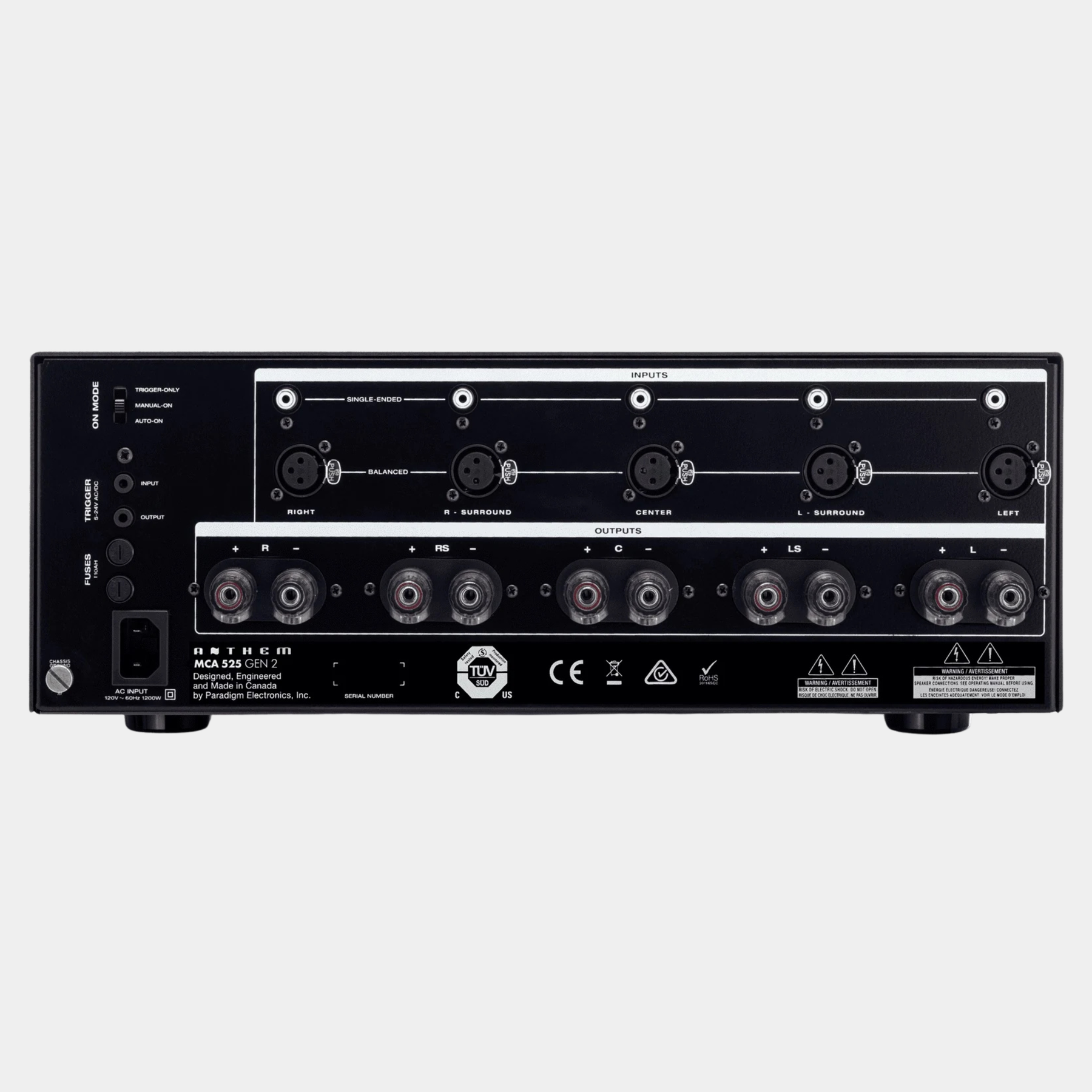

Inputs & Outputs
- 5 x Balanced XLR Inputs
- 5 x Single-Ended RCA Inputs
- 5 x Speaker Outputs via Binding Posts
- 12V Trigger Input
- 12V Trigger Output
- Chassis Ground Connection
Input Specifications
- Input Sensitivity: 1.5Vrms for 225W into 8 ohms
- RCA Input Impedance: 10k ohms
- XLR Input Impedance: 15k ohms
Power Control
- Manual-On Mode
- Trigger-On Mode
- Automatic Signal-Sensing Mode
- Standby Power Consumption: 2.0W
- Idle Power Consumption: 80W
- Typical Power Consumption: 550W
- High Output Power Consumption: 1200W
Dimensions & Weight
- Width: 438mm
- Height: 169mm
- Depth: 460mm
- Rack Height: 4U
- Weight: 27.5kg
What's in the Box
- 1 x Anthem MCA 525 Gen 2 Power Amplifier
- 1 x Mains Power Cable
- Documentation
