ARCAM Premium System Bundle
- UK Wide Shipping Available
- Long established Official Retailer
- Usually in-stock ready to ship
HOLBURN ONLINE EXCLUSIVE BUNDLE DEAL -
- ARCAM RADIA A5/A15/A25 INTEGRATED AMPLIFIER
- ARCAM ST5 STREAMER
- ARCAM CD5 CD PLAYER
- 2x ATLAS ELEMENT RCA INTERCONNECTS/ 2x ATLAS HYPER RCA INTERCONNECTS (1M)
THE A5 BUNDLE CHOICE INCLUDES THE ATLAS ELEMENT RCA
THE A15 + A25 BUNDLE CHOICES INCLUDE THE VASTLY IMPROVED ATLAS HYPER RCA
High Quality Hi-Fi bundle. Arcam systems are known for their excellent sound quality - making this the perfect choice for truly engaging music reproduction. Includes Atlas Element RCA Cables which are built to an exceptionally high standard, maintaining the purest fidelity of the original audio signal.

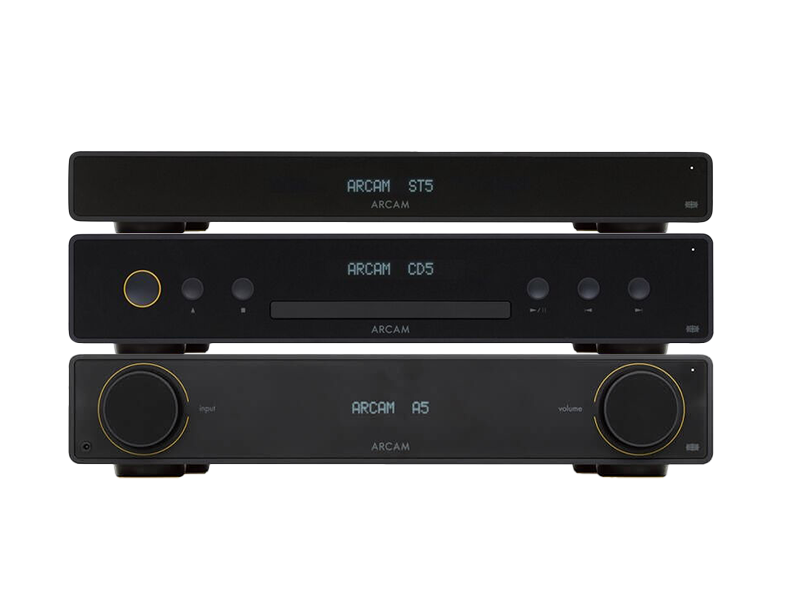

ARCAM A5
The ARCAM A5 is for those intimate listening experiences with your favourite music.
The "A" in ARCAM stands for Amplification - this is our core competance. The A5 is the latest in more than 45 years of amplifier design and manufacture, going back to our first product in 1976 - the A&R Cambridge A60 amplifier. New components and materials have been painstakingly analysed and reviewed to ensure brilliant sound quality.
So you can play music straight out of the box, the ARCAM A5 includes a Bluetooth solution with Qualcomm AptX Adaptive technology. This provides up to 24-bit HD audio for the best sound quality from your phone or tablet, no matter what you are playing. It can also connect to Bluetooth headphones so your listening experience can continue sensitively after dark.
Hi-res audio is included with high resolution digital audio inputs included.
Like any ARCAM integrated amplifier, we pay particular attention to the built in phono stage to ensure your records sound as lush and engaging as possible.
- ARCAM Class AB amplification - provides brilliant musicality
- 50W per channel (8Ω) - powers loudspeakers with ease
- Bluetooth with aptX™Adaptive Technology - for the best sound with the most convenience
- Specially selected components and materials - to deliver on sound quality
- Wired or Wireless Headphones - connect your headphones for quiet listening with, or without wires
- All new Radia design - Purposeful yet playful
- MM phono stage - ready for Turntables
- Hi-Res Digital Audio Inputs
- Plastic Free Packaging - for easy disposal of natural materials
TECHNICAL SPEC
| Continuous power output (0.5% THD), per channel | 2 channels driven, 20Hz - 20kHz, 8Ω 50W 2 channels driven, 1kHz, 4Ω 75W Harmonic distortion, 80% power, 8Ω at 1kHz 0.003% |
| Analogue Inputs | Number of inputs 3 (RCA pairs) Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB Frequency response 20Hz—20kHz ± 0.2dB |
| Phono (MM) Input | Input impedance 47kΩ + 100pF Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB |
| Digital Inputs | Supported Sample Rates (kHz) Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1 Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1 Bit depths (bit) 24, 16 Frequency response (filter 1) 20Hz—20kHz ± 0.2dB Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB |
| Headphone Output | Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V Load range 16Ω - 2kΩ |
| General | Mains voltage 100V or 110–120V or 220–240V, 50–60Hz Power consumption (maximum) 350W Power consumption (standby) <0.5W Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 83mm Weight (net) 8kg Weight (packed) 11kg |
| Supplied accessories | Mains lead(s) Remote control with 2 x AAA batteries Quick Start Guide Important Safety Instructions |

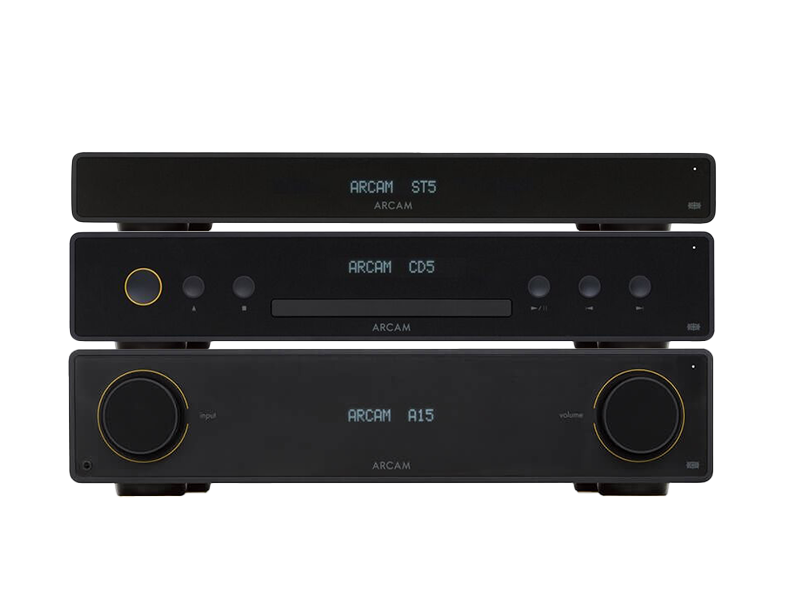

ARCAM A15
The ARCAM A15 is the power house, with 80 Watts of output per channel. It is perfect for listening with tower speakers, in larger rooms, and more exuberant listening volumes.
The "A" in ARCAM stands for Amplification - this is Arcam's core competance. The A15 is the latest in more than 45 years of amplifier design and manufacture. New components and materials have been painstakingly analysed and reviewed to ensure brilliant sound performance.
So you can play music straight out of the box, the ARCAM A15 includes a Bluetooth solution with Qualcomm AptX Adaptive technology. This provides up to 24-bit HD audio for the best sound quality from your phone or tablet, no matter what you are playing. It can also connect to Bluetooth headphones so your listening experience can continue sensitively after dark.
Hi-res audio is included with high resolution digital audio inputs included.
Like any ARCAM integrated amplifier, they pay particular attention to the built in phono stage to ensure your records sound as lush and engaging as possible.
Key Features
• ARCAM Class AB amplification - provides brilliant musicality
• 80W per channel (8?) - powers loudspeakers with dynamics
• Bluetooth with aptX™Adaptive Technology - for the best sound with the most convenience
• Specially selected components and materials - to deliver on sound quality
• Wired or Wireless Headphones - connect your headphones for quiet listening with, or without wires
• All new Radia design - Purposeful yet playful
• MM phono stage - ready for Turntables
• Hi-Res Digital Audio Inputs
• Plastic Free Packaging - for easy disposal of natural materials
| Continuous power output (0.5% THD), per channel | 2 channels driven, 20Hz - 20kHz, 8Ω 80W 2 channels driven, 1kHz, 4Ω 120W Harmonic distortion, 80% power, 8Ω at 1kHz 0.002% |
| Analogue Inputs | Number of inputs 3 (RCA pairs) Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB Frequency response 20Hz—20kHz ± 0.2dB |
| Phono (MM) Input | Input impedance 47kΩ + 100pF Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB |
| Digital Inputs | Supported Sample Rates (kHz) Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1 Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1 Bit depths (bit) 24, 16 Frequency response (filter 1) 20Hz—20kHz ± 0.2dB Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB |
| Headphone Output | Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V Load range 16Ω - 2kΩ |
| General | Mains voltage 100V or 110–120V or 220–240V, 50–60Hz Power consumption (maximum) 500W Power consumption (standby) <0.5W Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 98mm Weight (net) 10kg Weight (packed) 13kg |
| Supplied accessories | Mains lead(s) Remote control with 2 x AAA batteries Quick Start Guide Important Safety Instructions |

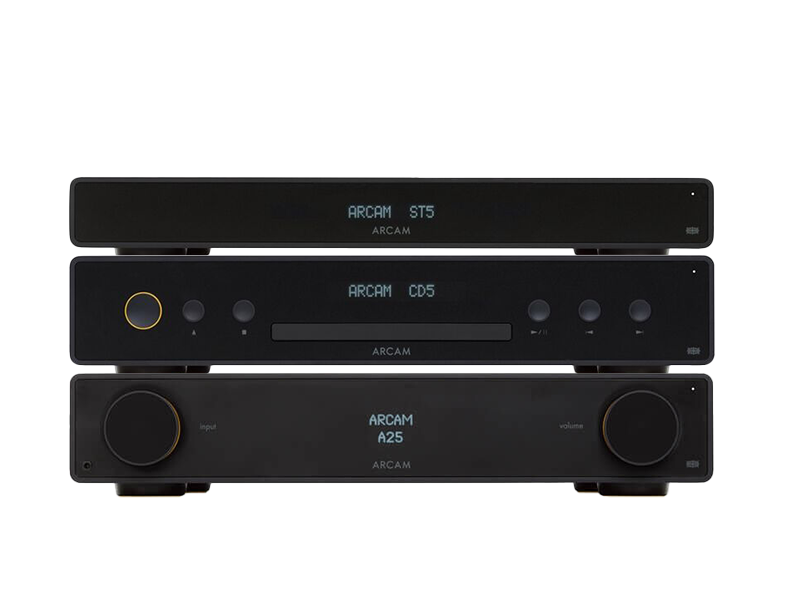

ARCAM A25
The ARCAM A25 is the best sounding, and most feature rich of Arcam's Radia Integrated amplifiers. The visual luxurious highlights hint towards the more luxurious musical experience that it offers.
This is achieved with a 5th generation Class G amplifier design. You can expect the best sound quality and dynamics from what has always been a better sounding, and more efficient Class of amplifier. New components and materials have been painstakingly analysed and reviewed to ensure uncompromising sound performance.
The rich feature set includes a USB-C input for your laptop, be it PC, MAC or Raspberry Pi! This augments a Bluetooth solution that includes Qualcomm AptX Adaptive technology with 24-bit HD audio to ensure the best sound quality no matter what you are playing. It can also connect to Bluetooth headphones so your listening experience can continue sensitively after dark.
Like any ARCAM integrated amplifier, they pay particular attention to the built in phono stage to ensure your records sound as lush and engaging as possible.
Key Features
• ARCAM Class G amplification - for ultra-low distortion
• 100W per channel (8?) - powers loudspeakers effortlessly
• Bluetooth with aptX™ Adaptive Technology - for the best sound with the most convenience
• Specially selected components and materials - to deliver on sound quality
• Wired or Wireless Headphones - connect your headphones for quiet listening with, or without wires
• All new Radia design - Purposeful yet playful
• MM phono stage - ready for Turntables
• Hi-Res Digital Audio Inputs - with the addition of USB-C for ultra Hi-Res audio
• Plastic Free Packaging - for easy disposal of natural materials
| Continuous power output (0.5% THD), per channel | 2 channels driven, 20Hz - 20kHz, 8Ω 100W 2 channels driven, 1kHz, 4Ω 165W Harmonic distortion, 80% power, 8Ω at 1kHz 0.002% |
| Analogue Inputs | Number of inputs 3 (RCA pairs) Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB Frequency response 20Hz—20kHz ± 0.2dB |
| Phono (MM) Input | Input impedance 47kΩ + 100pF Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB |
| Digital Inputs | Supported Sample Rates (kHz) USB-C 384, 352.8, 192, 176.4, 96, 88.2, 48, 44.1 Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1 Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1 Supported DSD USB-C only 1024, 512, 256, 128, 64 Bit depths (bit) 32, 24, 16 Frequency response (fi lter 1) 20Hz—20kHz ± 0.2dB Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 110dB |
| Headphone Output | Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V Load range 16Ω - 2kΩ |
| General | Mains voltage 100V or 110–120V or 220–240V, 50–60Hz Power consumption (maximum) 500W Power consumption (standby) <0.5W Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 83mm Weight (net) 9kg Weight (packed) 12kg |
| Supplied accessories |
Mains lead(s) |
ARCAM ST5 STREAMER
The ARCAM ST5 is the high resolution upgrade for our Radia integrated amplifiers. The slim form factor includes a control link to these amplifiers, allowing the 2 components to act as one from your device. Sonically, this combination off ers better sound quality due to the benefits of isolated components with individual power supplies.
The ARCAM ST5 provides an inclusive feature set supporting the majority of smart phones and tables, as well as popular streaming services. Connect the ST5 to your home network with Wi-Fi or Ethernet to enjoy instant playback using Apple Airplay2 or Google Chromecast.
The ST5 will playback music directly from Spotify Connect and Tidal Connect, and for power users, the ST5 is Roon Ready, all with Hi-res and MQA support. All digital audio is output on the analogue outputs using an ESS ES9018 high resolution DAC with time domain jitter elimination for perfect sound, every time.
- Perfect match to ARCAM A5 and A15 - with comms link for 2 components to work together
- Works with Spotify Connect and Tidal Connect - for direct connection from your preferred music service
- Works with new ARCAM app - for Wi-Fi setup and internet radio presets - includes Qobuz, Amazon Music and Podcasts
- Specially selected components and materials - to deliver on sound quality
- Supports Apple Airplay2 and Chromecast built-in - works with all Apple and Android phones and tablets
- Roon Ready
- Supports Hi-Res Audio - up to 24 bit / 192 kHz from digital and analogue outputs
- Plastic Free Packaging - for easy disposal of natural materials
TECHNICAL SPEC
| Type | Streamer / Network Media Player |
| Supported Hi-res media | FLAC, WAS (LPCM), MQA, AAC, ALAC, AIFF, DSD (128) |
| Supported Hi-res Bit depth | 16, 24 |
| Supported samples rates (kHz) | 44.1, 48, 88.2, 96, 176.4, 192 |
| Supported media | MP3, MP4, OGG, WMA |
| Supported Bit depth | 16 |
| Supported samples rates (kHz) | 44.1, 48 |
| Gapless Playback | Yes |
| Gapless Playback | Yes |
| Digital Outputs | 1x Coaxial (RCA), 1x Optical (Toslink) |
| Analogue Outputs | 1x Stereo (RCA) pair |
| Frequency response (filter 1) | 20Hz—20kHz ± 0.05dB |
| Mains voltage | 100V or 110–120V or 220–240V, 50–60Hz |
| Power consumption | 12W |
| Power consumption (Eco standby) | <0.5W |
| Dimensions W x D (including speaker terminals) x H (including feet) | 431 x 344 x 83mm |
| Weight (net) | 3.5 kg |
| Weight (packed) | 5.6 kg |
| Supplied accessories | Mains lead(s) Remote control with 2 x AAA batteries Control Cable Quick Start Guide Important Safety Instructions |
ARCAM CD5 CD PLAYER
The ARCAM CD5 is for those intimate listening experiences with your favourite music on Compact Disc.
ARCAM has been a pioneer of Compact Disc playback since the development and introduction of the Delta 70 CD player in 1986, our own ground up design. The experience of producing high quality digital audio products since then has been poured into the ARCAM CD5. New components and materials have been painstakingly analysed and reviewed to ensure brilliant sound quality.
Hi-res audio playback capability is included for FLAC and WAV encoded CD and USB files.
- Specially selected components and materials - to deliver on sound quality
- All new Radia design - Purposeful yet playful
- CD, CD-R, CD-RW playback - to enjoy your favourite album or mix CD
- USB mass storage playback - for your library of music rips and downloads from a USB stick
- Plastic Free Packaging - for easy disposal of natural materials
TECHNICAL SPEC
| Frequency Response (filter 1) | 20Hz - 20kHz ±0.05dB |
| Max Analogue Output (0dBFS) | 2.1V rms |
| SNR (A-wtd, ref. 16-bit/24-bit, 0dBFS) | 93dB/115dB |
| Mains Voltage & Power Consumption | AC 100-240V, 50/60 Hz, 12W |
| Dimensions W x D x H (including feet) | 431 x 344 x 83mm |
| Supplied Accessories | Mains lead(s), Remote control with 2 x AAA batteries, Quick Start Guide, Important Safety Instructions |
| Product Weight | 6 kg |
| Shipping Weight | 9 kg |

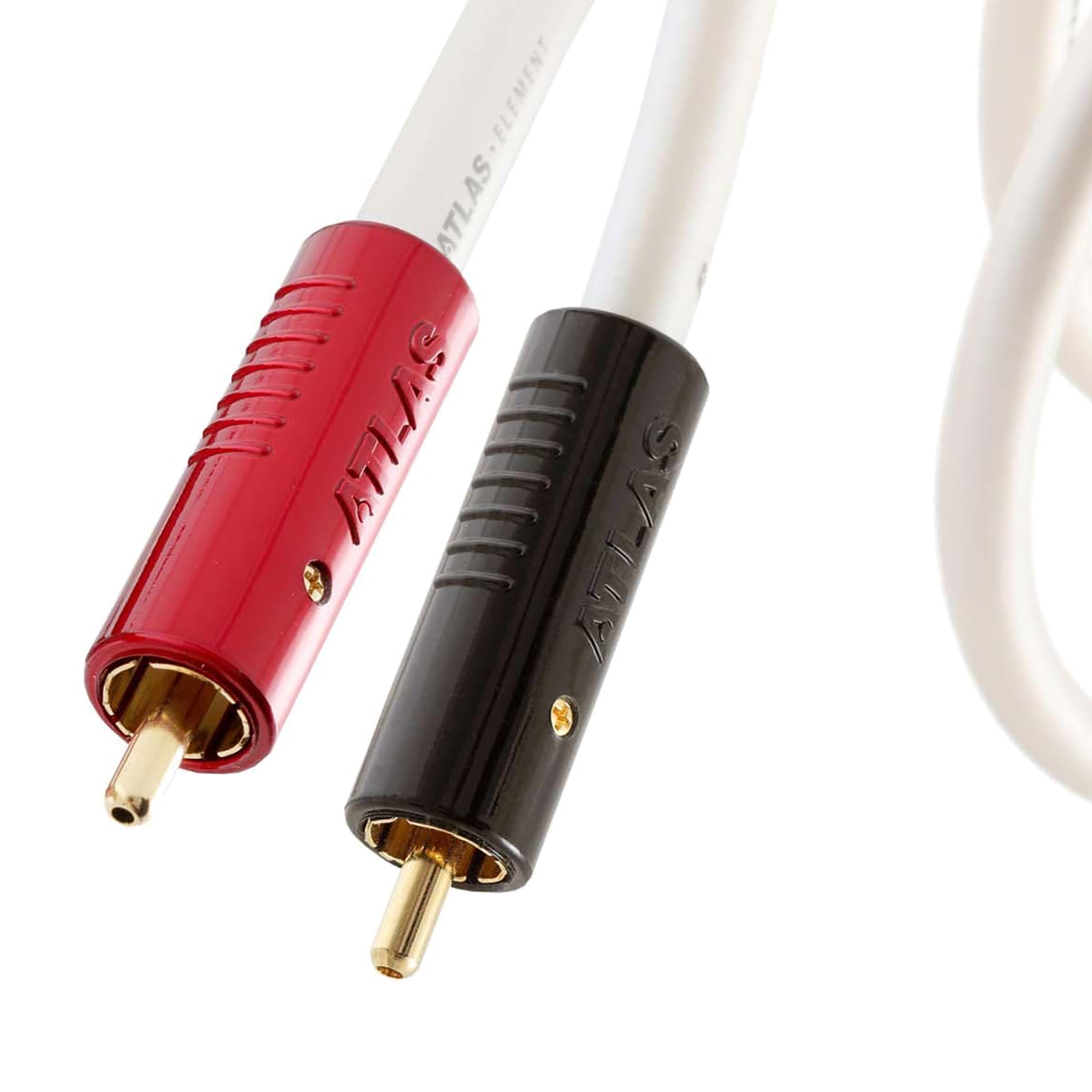

ATLAS ELEMENT RCA INTERCONNECT
A stereo interconnect with a neutral, relaxing sound, proven to be an excellent foundation for further system improvements.
The ATLAS Element Achromatic RCA benefits from ATLAS' ongoing research and development, the Element is fitted with the Achromatic non-magnetic RCA plug. The low-mass Achromatic connector features a solder-free, cold-weld connection, all optimised to create a coherent, continuous signal path.
The signal conductor is a fully shielded high-quality OCC copper, designed and constructed to provide maximum resistance to RFI (Radio Frequency Interference) which can raise noise levels in a poorly shielded cable.
The result is a cable that offers a large three-dimensional soundstage and fine levels of detail without the artificial brightness which affects many budget cables. The Element Achromatic offers a neutral, relaxing sound and has proven to be an excellent foundation for further system improvements.
The ATLAS Element range includes other analogue termination options, complementary USB & digital interconnects, and speaker cables.
CONNECTOR TYPE: Achromatic RCA
CONDUCTOR MATERIAL: OCC Copper
DIELECTRIC MATERIAL: PEF (Polyethylene)
Specifications:
Construction 4 core plus screen
Material OFC
Dielectric PEF
Screen Braid OFC, 85%
Capacitance 83.34 pF/m
Inductance 0.512 µH/m
Resistance 0. 0810 Ohms/m
Outside Diameter 7.0mm

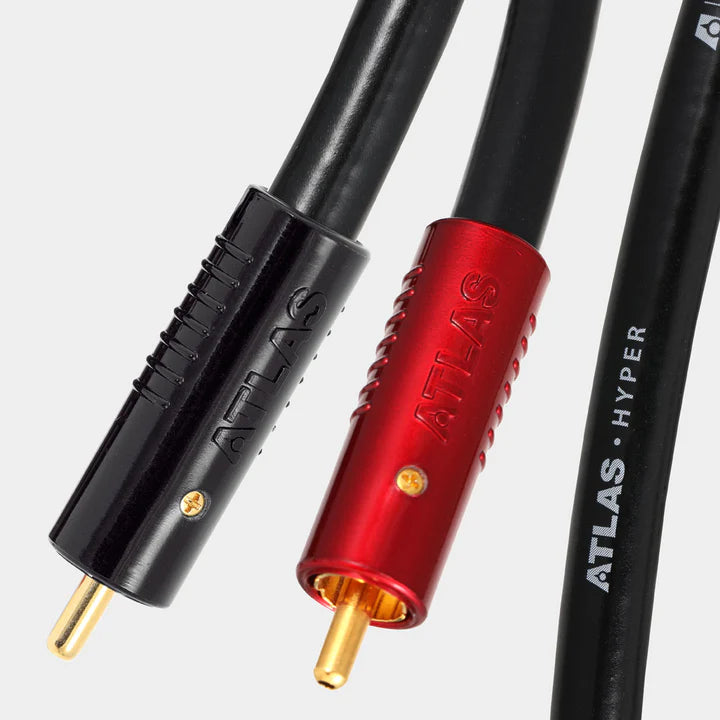

ATLAS HYPER RCA INTERCONNECT
The latest generation Hyper Achromatic offers a sophisticated, evenly balanced sound which draws you into the musical performance.
A stereo interconnect with a high level of transparency, ideally suited to improving mid-level systems.
Hyper utilises an OCC (Ohno Continous Casting) high purity copper conductor with a PEF (Foamed Polyethylene) dielectric, This design and construction combines wide bandwidth with excellent resistance to RFI (Radio Frequency Interference), which can raise noise levels, resulting in a loss of low level detail, in a poorly shielded cable, The Hyper Achromatic is fitted with our self-cleaning (just remove and insert it to clean the contact areas) Achromatic RCA plug. The low-mass Achromatic connector features a solder-free, cold-weld connection, optimised to create a coherent, continuous signal path.
The end result is a natural-sounding interconnect which achieves a large open soundstage and fine levels of resolution without any sense of exaggerated ‘detail’ which is superficially impressive but quickly fatiguing to listen to.
The Hyper range includes DIN & XLR termination options, digital interconnects plus stereo & bi-wire speaker cables.
CONNECTOR TYPE: Integra RCA
CONDUCTOR MATERIAL: OCC Copper
DIELECTRIC MATERIAL: PEF
Specifications:
| Construction | Co-ax |
| Material | 6n OCC Copper |
| Dielectric | PEF |
| Screen | OFC 94.2% – 252 strands |
| Capacitance | 71.54 pF/m |
| Inductance | 0.542 µH/m |
| Resistance | 0.0239 Ohms/m |
| VOP | 0.682 |
| Outside Diameter | 9.0mm |
