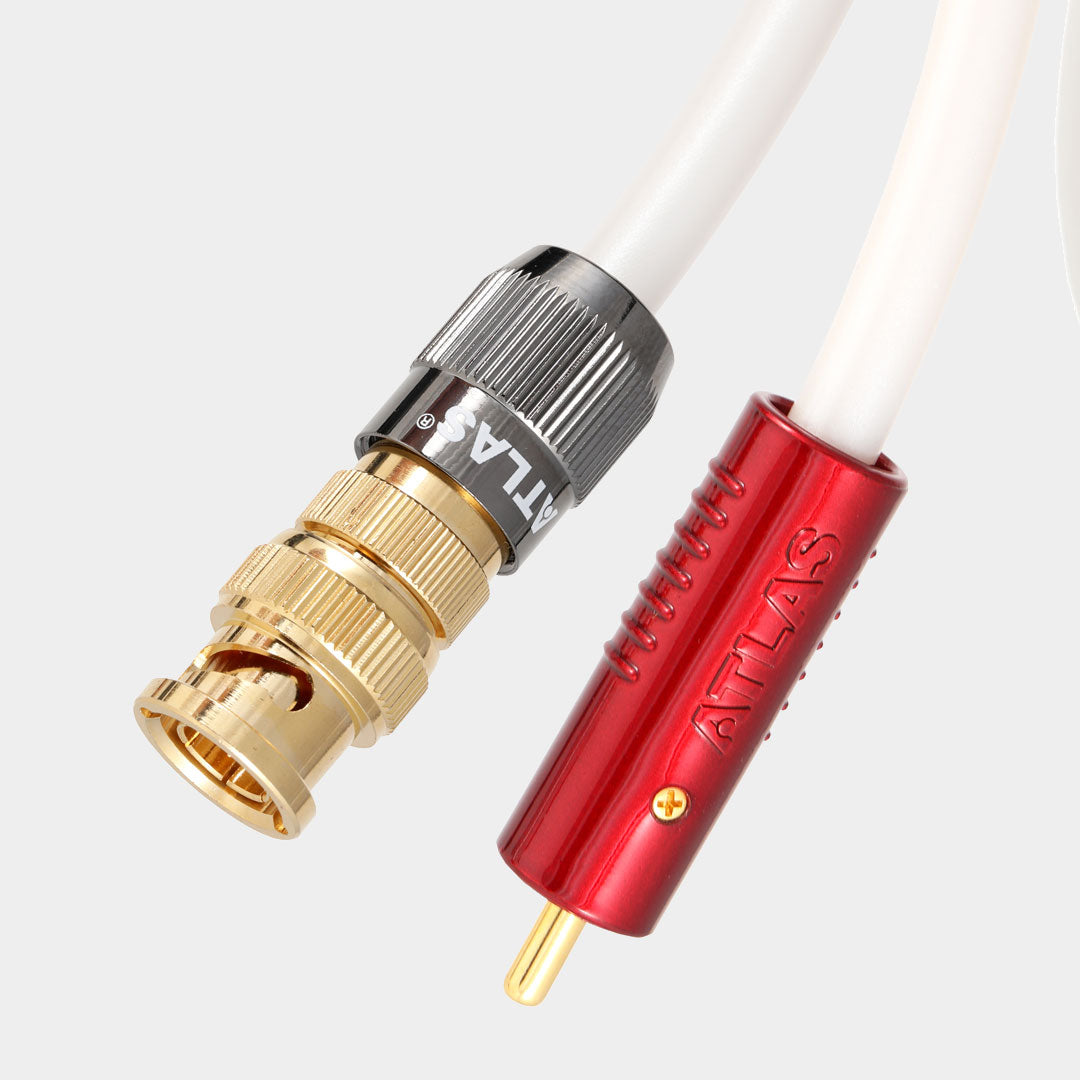

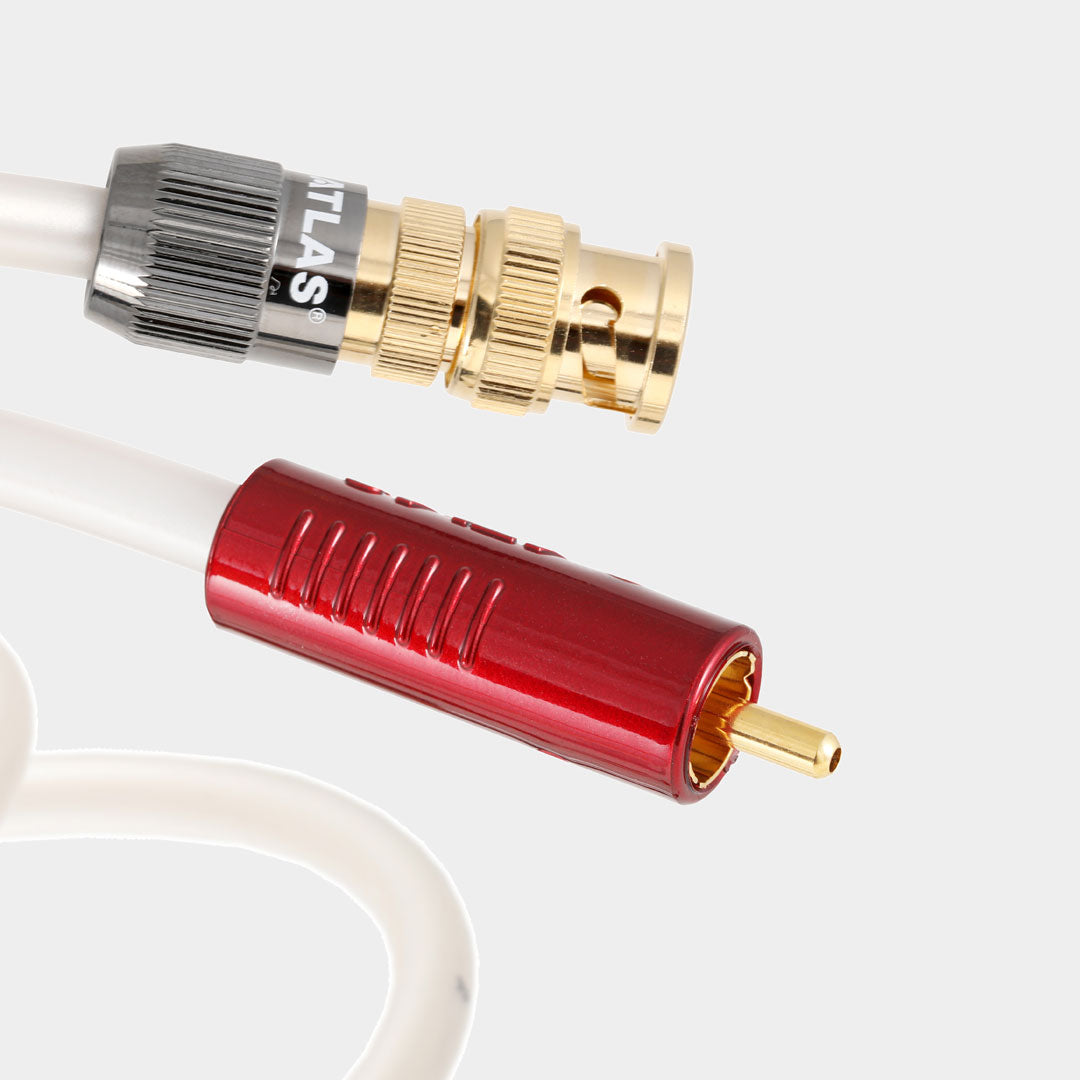

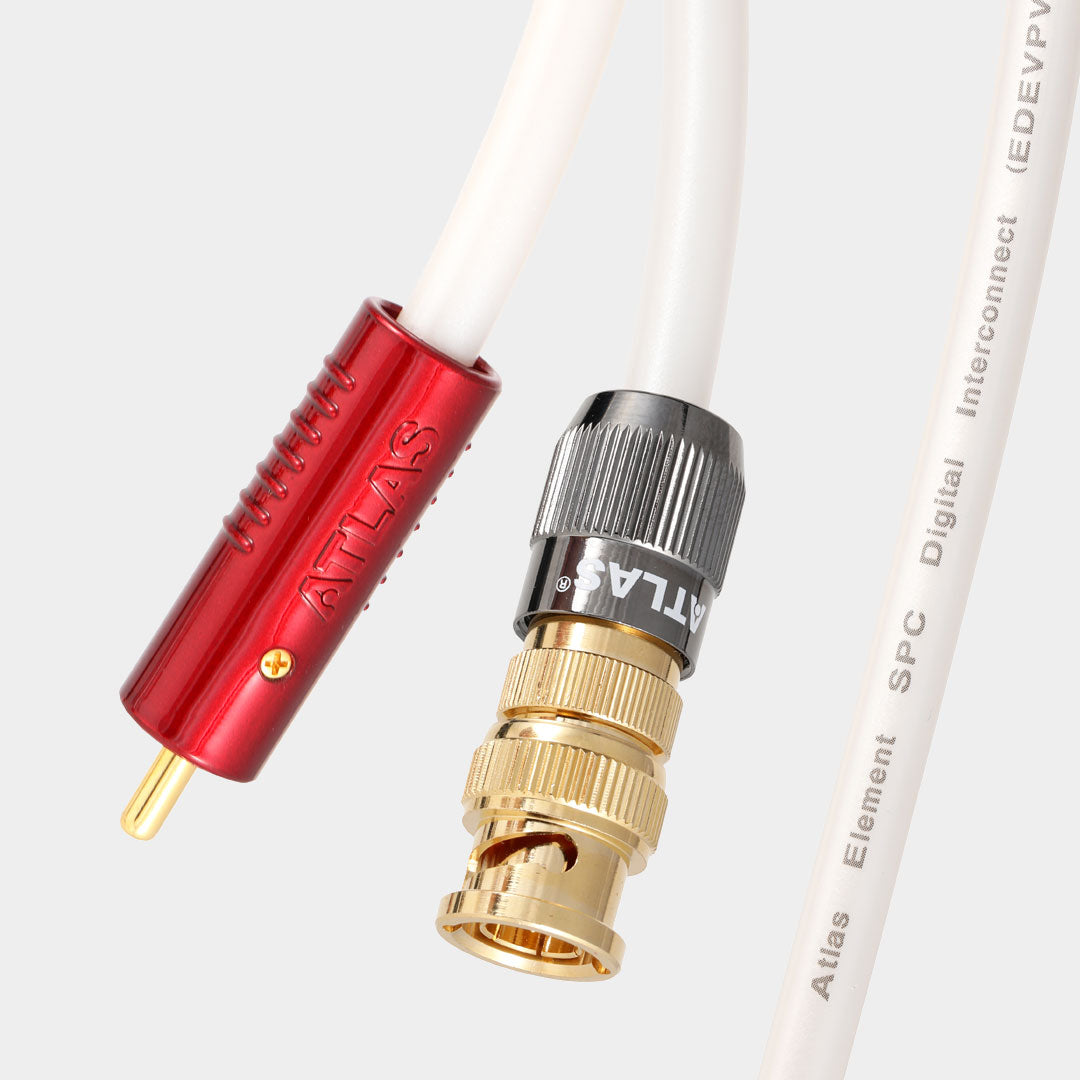

ATLAS Element Achromatic RCA-BNC S/PDIF

Regular price £104.75 GBP.
/
Tax included. Shipping calculated at checkout.

Only 0 items in stock!

The ATLAS Element Achromatic RCA-BNC S/PDIF is a true 75 Ohm digital interconnect with a detailed, non-fatiguing sound avoiding the digital ‘glare’ which affects many inexpensive digital cables.

The Element Achromatic BNC is designed to match the consumer digital audio specification by maintaining a true 75 Ohm impedance, ensure error-free transmission of digital data signals. ATLAS' cold-weld solder-free connectors avoid the continuity breaks and compression of the cable’s shielding screen which cause impedance problems and lead to compromised jitter performance.

The central conductor is multi-stranded OCC (Ohno Continuous Casting) copper, insulated by an extremely low-loss foamed polyethylene dielectric, the resulting sound being clear and dynamic with minimal jitter-induced noise. The Element Achromatic BNC makes an ideal entry level digital cable between CD transport or streamer and DAC – if your equipment has BNC socketry, this will normally offer superior performance to RCA connectors.



CONNECTOR TYPE

BNC Connector



CONDUCTOR MATERIAL

OFC



DIELECTRIC MATERIAL

PEF



Specifications:



Construction Co-ax
Material Silver Plated OFC
Dielectric PEF (Foamed Polyethylene)
Screen OFC, 85%
Capacitance 63.03 pF/m
Inductance 0.3735 µH/m
Resistance 0.1612
Impedance
Outside Diameter 6.0mm
