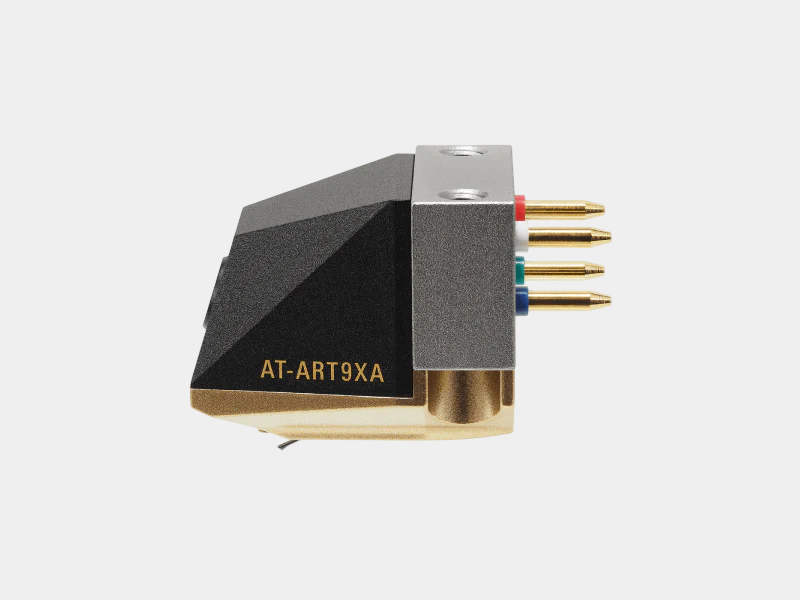

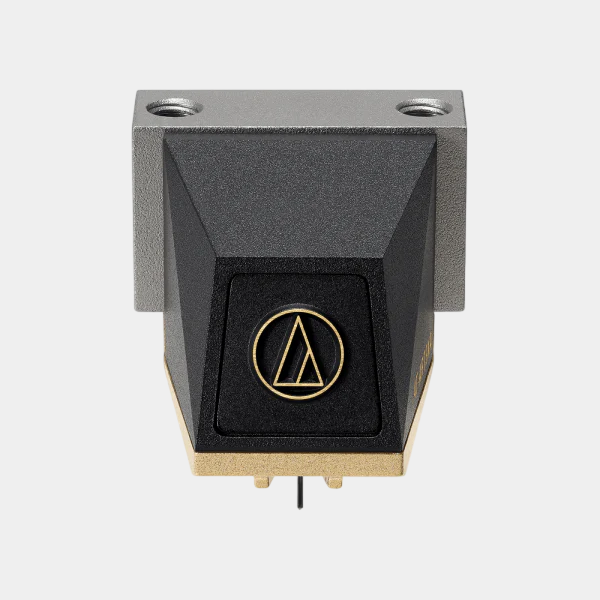

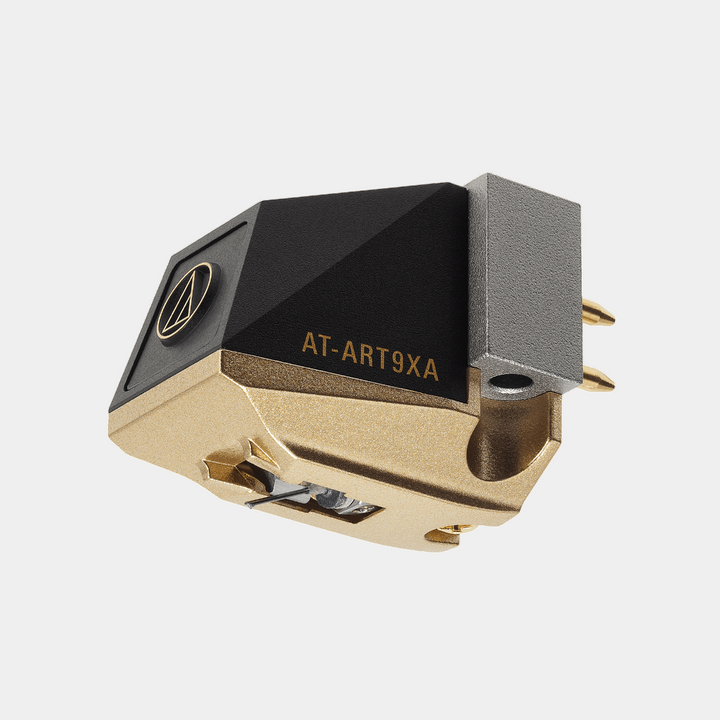

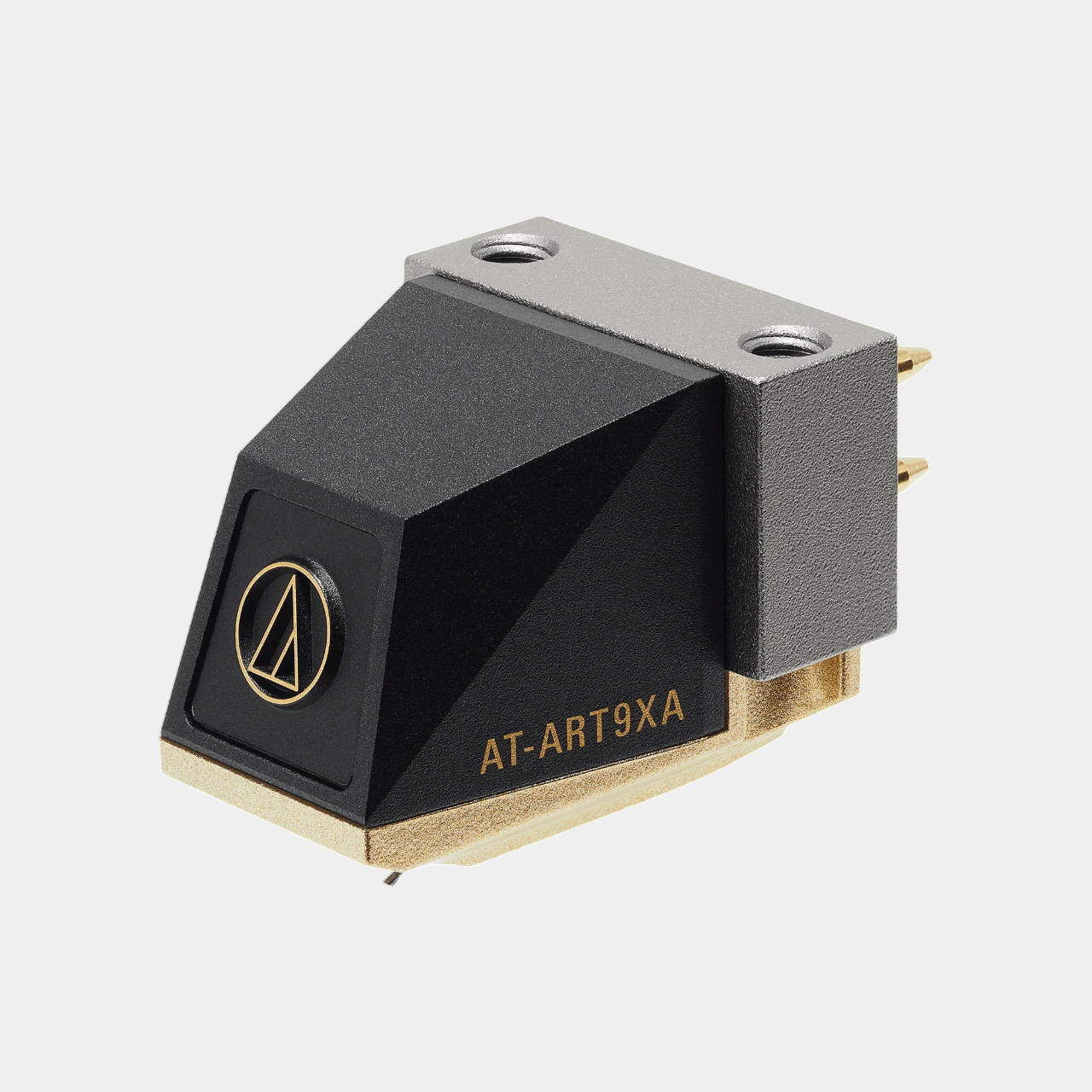

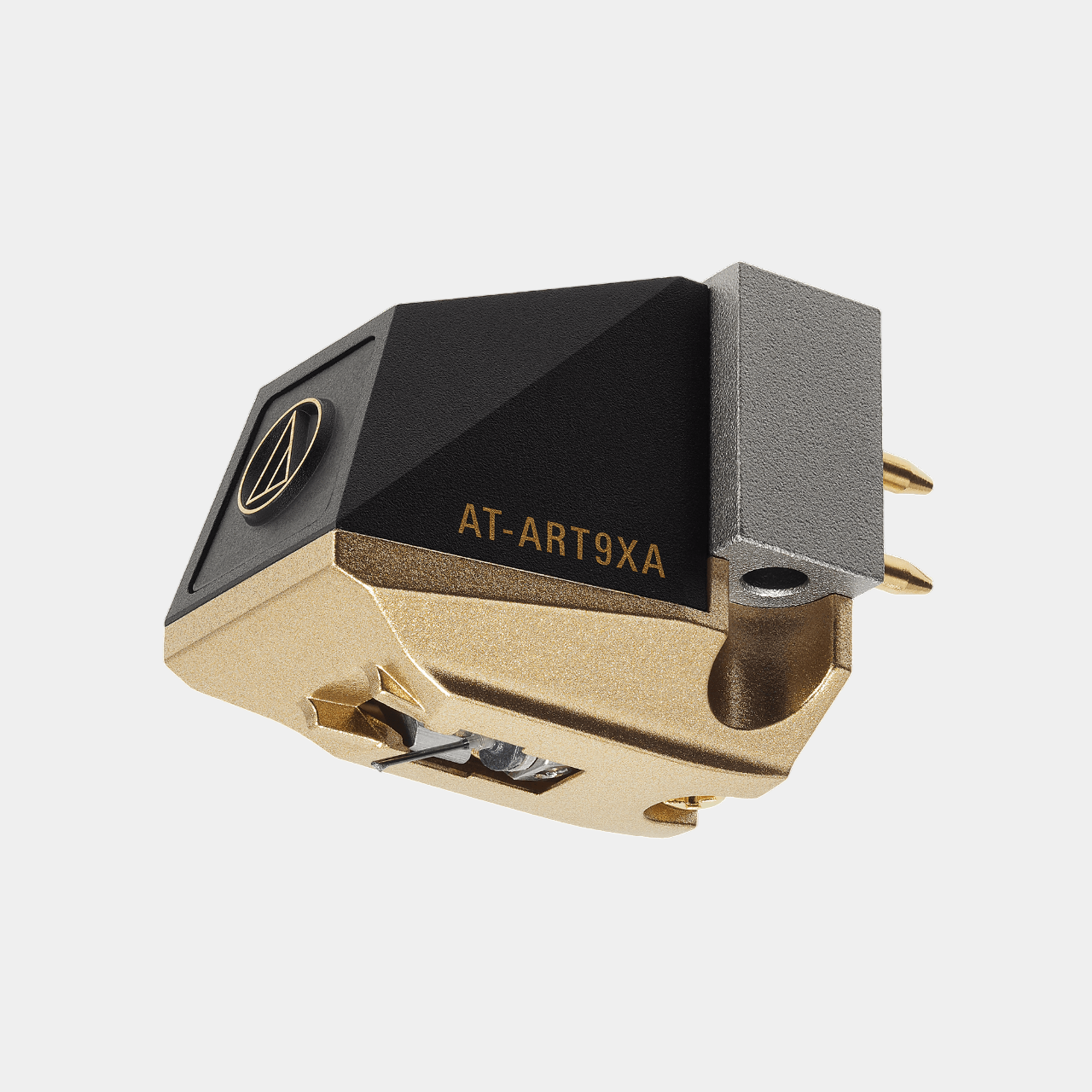

Audio Technica AT-ART9XA Moving Coil Cartridge
- Free Mainland UK Shipping on orders over £100
- Official Hi-Fi Retailer since 1973
- Usually in stock and dispatched in 1-5 working days
We offer free delivery on all orders over £100 to mainland UK. Orders under £100 are subject to a £5 shipping charge.
Delivery is available across mainland UK. If you are located outside mainland UK and would like a shipping quote, please get in touch before placing your order.
We aim to dispatch in-stock items as soon as possible provided that we physically have the stock - but please note that sometimes we have to order from our supplier for certain products, in which case delivery should take place within 1-5 working days of the order being placed.
Tracking details or estimated delivery timescales will be provided once your order has been processed. If there are any delays due to stock availability, we will contact you as soon as possible with the option to wait or receive a full refund.
Please note that certain products may be subject to specific distance selling or delivery regulations. If you are unsure about a product or its delivery terms, we recommend contacting us before purchase.
You can cancel your order within 14 days of receiving your goods, in line with UK distance selling regulations. Once you’ve notified us, you have a further 14 days to return the item. Please contact us by email, phone or in writing before sending anything back.
Items must be returned in original condition and packaging, including all accessories, manuals and any promotional items. The cost of return is your responsibility and we strongly recommend insuring the goods, as refunds cannot be issued for damaged or incomplete returns. If items show excessive handling, are missing components, or cannot be resold as new, a reasonable deduction may be made.
Please note that used headphones (for hygiene reasons) and custom or special-order items cannot be returned. If you need assistance arranging a return, we’re always happy to help.
Product Summary
The Audio-Technica AT-ART9XA is a high-end dual moving-coil phono cartridge designed for audiophiles seeking exceptional accuracy and natural analogue sound reproduction. Part of Audio-Technica’s flagship ART (Audio-Technica Reference Transducer) series, it represents the company’s commitment to advanced cartridge engineering and premium materials.
The cartridge features a Shibata stylus mounted on a 0.28 mm solid boron cantilever, providing excellent response and precise groove tracing. This design allows highly accurate reproduction of both high-frequency detail and subtle mid-range information.
The AT-ART9XA uses a non-magnetic core moving-coil design, which helps reduce magnetic distortion and produce a more natural tonal balance with improved spatial representation. Dual moving coils arranged in an inverted V configuration provide high channel separation and a wide, stable stereo soundstage.
A machined aluminium base and hybrid body structure help minimise unwanted resonance while supporting stable playback performance. Threaded mounting holes also simplify installation on standard headshells and tonearms.
Key Benefits
- High-end dual moving-coil phono cartridge
- Shibata stylus for highly accurate groove tracking
- Solid boron cantilever for excellent responsiveness
- Non-magnetic core design reduces magnetic distortion
- Dual moving coils arranged in an inverted V configuration
- PCOCC coils for high-fidelity signal transmission
- Machined aluminium base for improved playback stability
- Hybrid body construction reduces unwanted resonance
- Threaded mounting holes simplify installation
- Designed for high-resolution analogue playback systems
Technical Specifications
Cartridge & Stylus
- Type: Dual Moving Coil (MC)
- Stylus Shape: Shibata
- Cantilever: Solid boron
- Stylus Construction: Nude square shank
Performance
- Frequency Response: 15 – 50,000 Hz
- Output Voltage: 0.2 mV (1 kHz, 5 cm/sec)
- Channel Separation: approx. 30 dB (1 kHz)
- Channel Balance: approx. 0.5 dB
- Vertical Tracking Angle: approx. 20°
- Recommended Tracking Force: 1.6 g
- Tracking Force Range: 1.4 – 1.8 g
Electrical
- Load Impedance: 100 Ω (recommended)
- DC Resistance: approx. 12 Ω
- Coil Material: PCOCC copper
Physical
- Mount Type: Standard ½-inch mount
- Dimensions (H × W × D): approx. 17.3 × 16.8 × 25.0 mm
- Weight: approx. 8.5 g
- Colour: Black cartridge body
What’s in the Box
- Audio-Technica AT-ART9XA moving-coil cartridge
- Cartridge installation screws
- Washers
- Non-magnetic screwdriver
- Stylus protector
- Cleaning brush
- Product documentation
