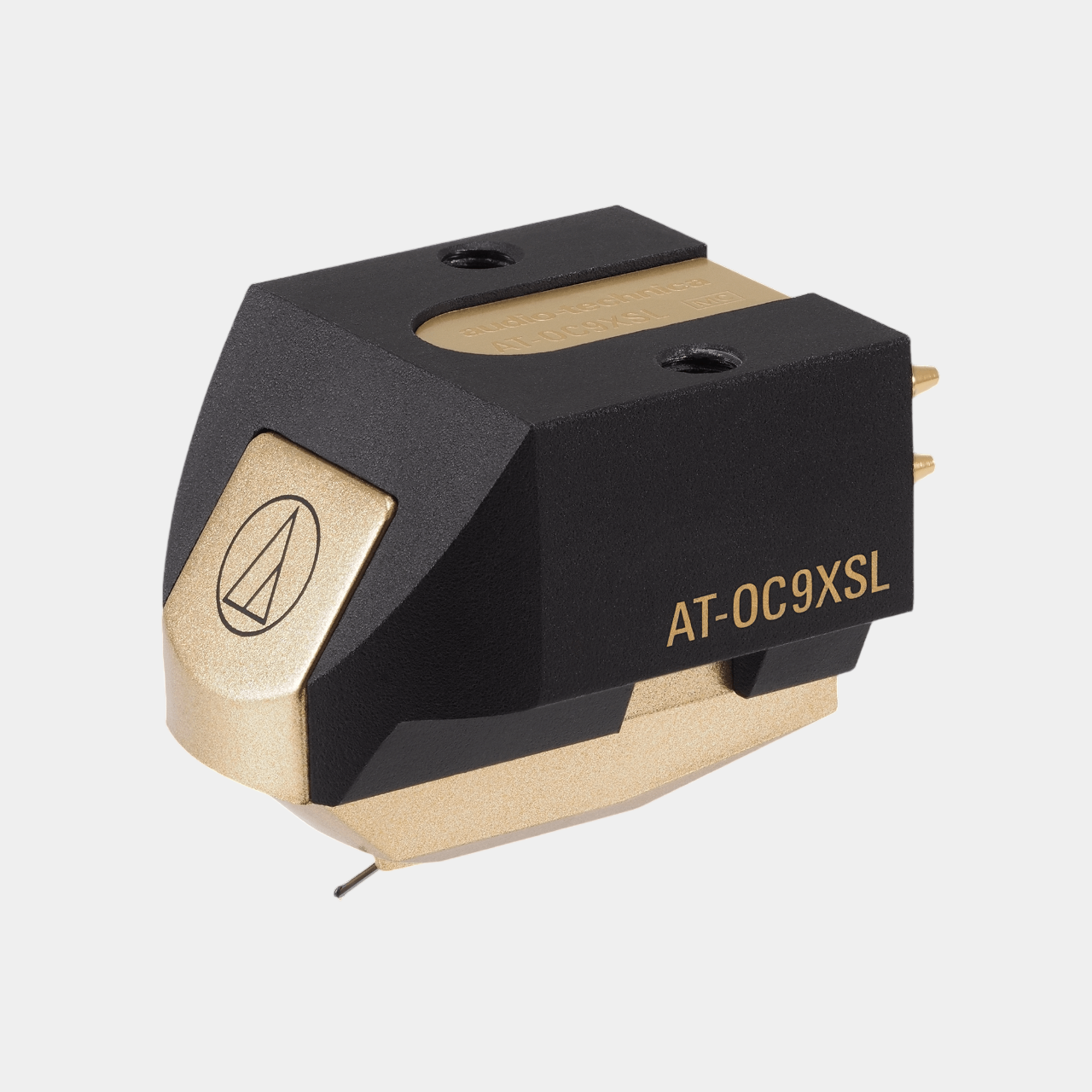

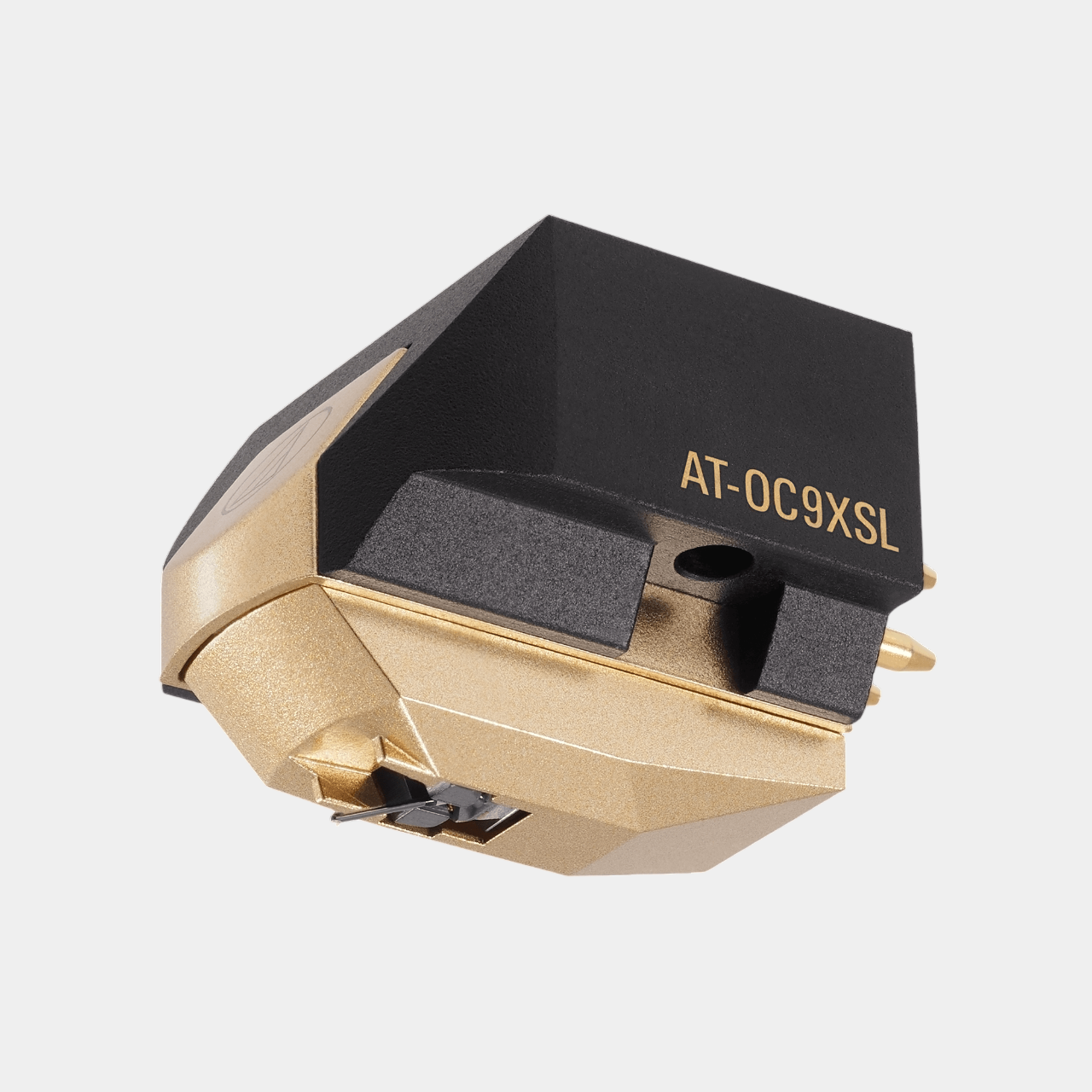

Audio Technica AT-OC9XSL Moving Coil Cartridge
- Free Mainland UK Shipping on orders over £100
- Official Hi-Fi Retailer since 1973
- Usually in stock and dispatched in 1-5 working days
We offer free delivery on all orders over £100 to mainland UK. Orders under £100 are subject to a £5 shipping charge.
Delivery is available across mainland UK. If you are located outside mainland UK and would like a shipping quote, please get in touch before placing your order.
We aim to dispatch in-stock items as soon as possible provided that we physically have the stock - but please note that sometimes we have to order from our supplier for certain products, in which case delivery should take place within 1-5 working days of the order being placed.
Tracking details or estimated delivery timescales will be provided once your order has been processed. If there are any delays due to stock availability, we will contact you as soon as possible with the option to wait or receive a full refund.
Please note that certain products may be subject to specific distance selling or delivery regulations. If you are unsure about a product or its delivery terms, we recommend contacting us before purchase.
You can cancel your order within 14 days of receiving your goods, in line with UK distance selling regulations. Once you’ve notified us, you have a further 14 days to return the item. Please contact us by email, phone or in writing before sending anything back.
Items must be returned in original condition and packaging, including all accessories, manuals and any promotional items. The cost of return is your responsibility and we strongly recommend insuring the goods, as refunds cannot be issued for damaged or incomplete returns. If items show excessive handling, are missing components, or cannot be resold as new, a reasonable deduction may be made.
Please note that used headphones (for hygiene reasons) and custom or special-order items cannot be returned. If you need assistance arranging a return, we’re always happy to help.
Product Summary
The Audio-Technica AT-OC9XSL is a premium dual moving coil cartridge designed for highly accurate, detailed vinyl playback. As part of the acclaimed OC9X series, it combines advanced cartridge engineering with carefully selected materials to deliver excellent channel separation, low distortion and a refined analogue presentation.
The cartridge uses a nude Special Line Contact stylus mounted on a boron cantilever. This advanced stylus profile is designed to trace groove information with exceptional precision, helping reveal fine musical detail, spacious imaging and strong transient response across the frequency range.
Audio-Technica’s dual moving coil generator uses independent left and right channel coils arranged in a reverse V formation. This design helps reduce unwanted stylus pressure while improving channel separation and stereo stability for a more open and focused soundstage.
A rigid aluminium body helps control unwanted resonance, while high-purity PCOCC coils, a neodymium magnet and a premium permendur yoke all contribute to clean signal transfer and high magnetic efficiency. Threaded mounting holes also make installation simpler on standard headshells and tonearms.
Key Benefits
- Premium dual moving coil cartridge for high-resolution vinyl playback
- Nude Special Line Contact stylus for highly accurate groove tracing
- Boron cantilever for fast response and excellent detail retrieval
- Independent dual moving coils for strong channel separation
- Reverse V coil arrangement helps reduce distortion
- PCOCC coils for pure signal transmission
- Neodymium magnet and permendur yoke for improved magnetic efficiency
- Rigid aluminium body helps reduce unwanted resonance
- Threaded body allows easier installation without separate nuts
- Made in Japan
Technical Specifications
Cartridge & Stylus
- Type: Dual Moving Coil (MC)
- Stylus Shape: Nude Special Line Contact
- Cantilever: Boron
- Mounting Feature: Threaded body
Performance
- Frequency Response: 20 – 47,000 Hz
- Output Voltage: 0.4 mV (1 kHz, 5 cm/sec)
- Channel Separation: 28 dB (1 kHz)
- Channel Balance: 0.5 dB (1 kHz)
- Vertical Tracking Angle: 20°
- Recommended Tracking Force: 2.0 g
- Tracking Force Range: 1.8 – 2.2 g
- Static Compliance: 40 × 10⁻⁶ cm/dyne
- Dynamic Compliance: 16 × 10⁻⁶ cm/dyne (100 Hz)
Electrical
- Coil Impedance: 12 Ω (1 kHz)
- DC Resistance: 12 Ω
- Recommended Load Impedance: Min 100 Ω
- Coil Inductance: 25 μH (1 kHz)
Physical
- Mount Type: Standard ½-inch mount
- Dimensions (H × W × D): 17.3 × 16.8 × 25.7 mm
- Weight: 7.6 g
- Colour: Black
What’s in the Box
- Audio-Technica AT-OC9XSL moving coil cartridge
- Cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm × 2, 12 mm × 2)
- Washers
- Non-magnetic screwdriver
- Stylus protector
- Cleaning brush
- Product documentation
