Product Summary

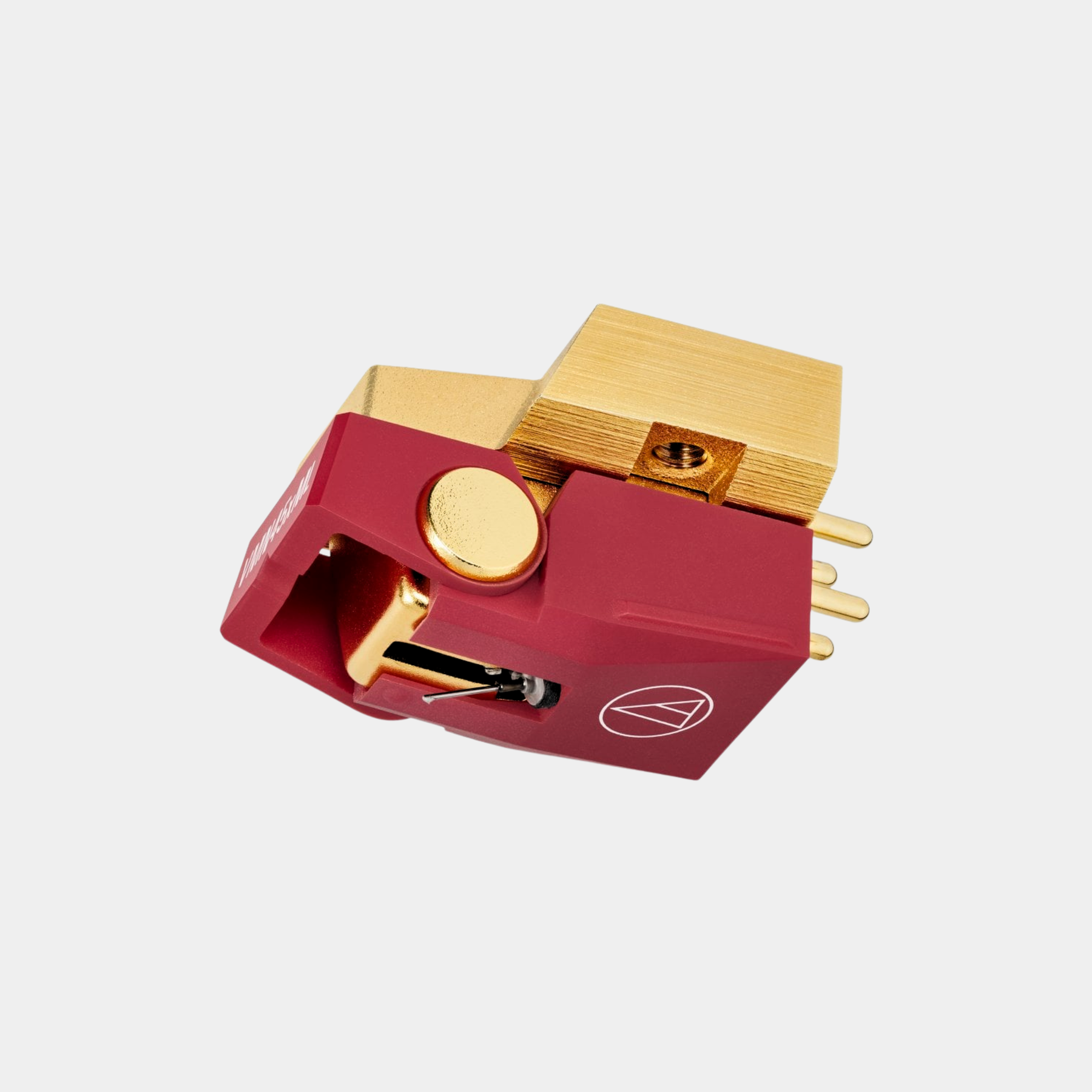

The Audio-Technica AT-VM745xML is a premium dual moving magnet phono cartridge from the latest AT-VMx Series, combining a nude Microlinear stylus with a solid boron cantilever for highly accurate and detailed vinyl playback.
Its Microlinear stylus has a very small 2.2 x 0.12 mil curvature radius, allowing it to follow the intricate modulations of the record groove with exceptional precision. Compared with conventional elliptical or conical profiles, the Microlinear design is able to retrieve fine high-frequency information while maintaining accurate tracking across the record, including demanding inner grooves.
The AT-VM745xML distinguishes itself with a 0.28mm solid boron cantilever. Boron combines extremely low mass with excellent rigidity, allowing stylus movement to be transmitted rapidly and accurately to the cartridge generator. This contributes to improved transient response, fine detail retrieval and a clean, responsive presentation.
Audio-Technica’s dual moving magnet VM design mirrors the arrangement of the cutter head used to create a stereo record. Two magnets are positioned to correspond with the left and right groove walls, helping provide excellent channel separation and a stable, precisely defined stereo image.
The updated VMx generator employs paratoroidal coils, with two coils used for each channel to improve generating efficiency. A central shielding plate separates the left and right channels to reduce electrical crosstalk, while PCUHD® (Pure Copper Ultra High Drawability) wire is used for the coils to support highly responsive and nuanced signal transmission.

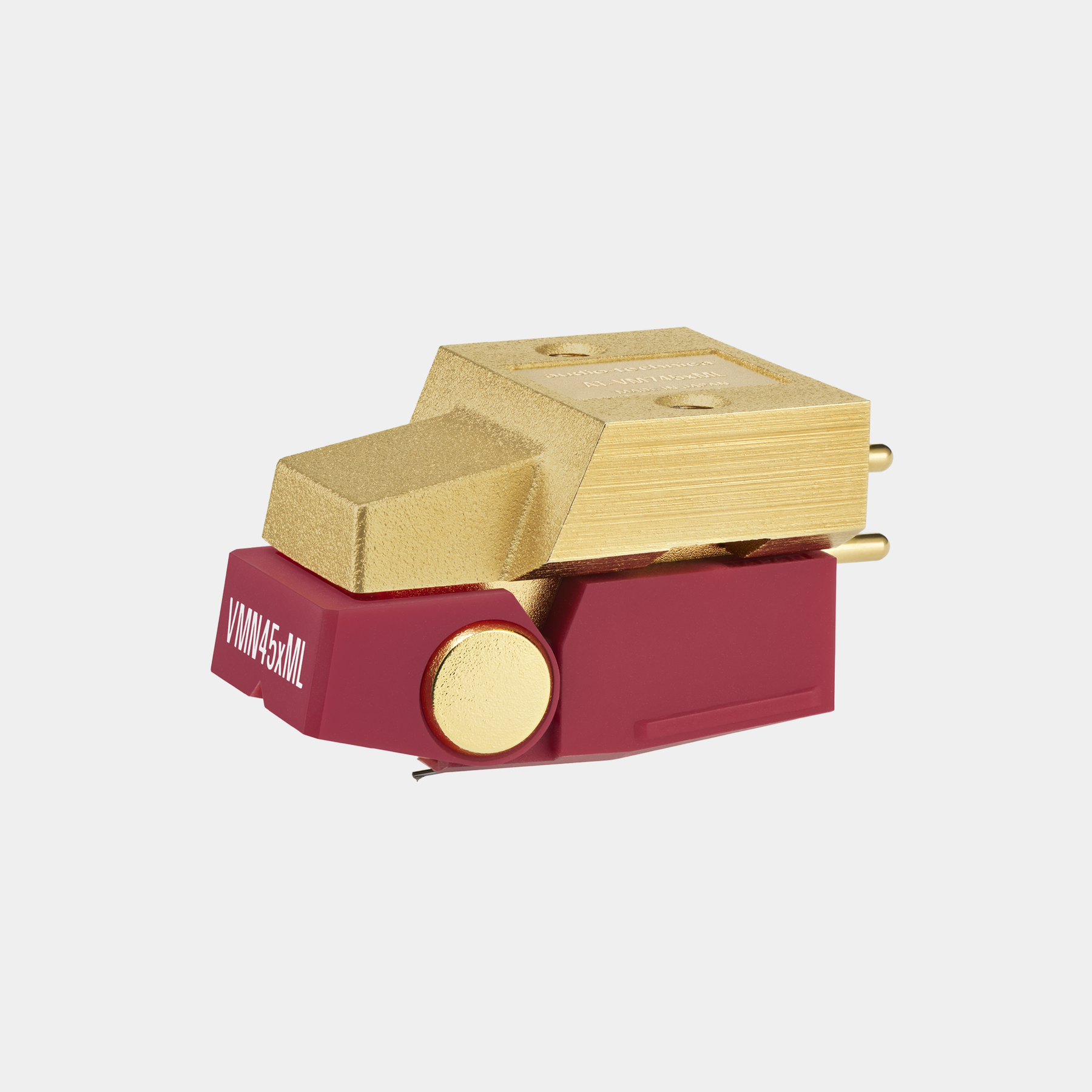

A rigid die-cast aluminium cartridge body helps suppress unwanted vibration and resonance. Threaded mounting holes are integrated into the body, allowing installation with two screws without the need to hold separate nuts underneath the headshell, making cartridge fitting and alignment considerably easier.
The redesigned flip-up stylus protector incorporates a V-shaped cut-out, providing a clearer view of the stylus position when lowering the cartridge onto a record.
With a 3.7mV output and standard 47kΩ recommended load impedance, the AT-VM745xML is designed for use with conventional moving-magnet phono stages. Its combination of advanced groove tracing, a boron cantilever and Audio-Technica’s refined VMx generator makes it an excellent choice for listeners seeking a significant upgrade in resolution, stereo imaging and musical detail.
Key Benefits
- Premium AT-VMx Series dual moving magnet cartridge
- Nude Microlinear stylus for exceptionally accurate groove tracing
- 2.2 x 0.12 mil stylus curvature radius
- 0.28mm solid boron cantilever combines low mass with excellent rigidity
- Extended 20Hz - 27kHz frequency response
- 3.7mV output suitable for standard moving-magnet phono stages
- 26dB channel separation at 1kHz
- Paratoroidal coil construction improves generating efficiency
- PCUHD® high-purity copper coil wire
- Central shielding plate helps reduce crosstalk between channels
- Dual magnet architecture mirrors the geometry of a stereo record cutting head
- Die-cast aluminium body helps control unwanted vibration and resonance
- Threaded cartridge mounting holes simplify installation
- V-cut flip-up stylus protector improves visibility during cueing
- Recommended tracking force of 2.0g
- User-replaceable AT-VMN45xML stylus
- Compatible with standard 1/2-inch cartridge mounting systems
- 2 years manufacturers warranty
Technical Specifications
Cartridge Design
- Type: VM dual moving magnet stereo cartridge
- Series: Audio-Technica AT-VMx Series
- Cartridge Body: Die-cast aluminium
- Threaded Mounting Holes: M2.6 x 2
- Weight: 8.8g
Stylus & Cantilever
- Stylus Type: Nude Microlinear
- Stylus Curvature Radius: 2.2 x 0.12 mil
- Cantilever: 0.28mm diameter solid boron
- Vertical Tracking Angle: 20°
- Replacement Stylus: AT-VMN45xML
Performance
- Frequency Response: 20Hz - 27,000Hz
- Output Voltage: 3.7mV at 1kHz, 5cm/sec
- Channel Separation: 26dB at 1kHz
- Output Balance: 1.0dB at 1kHz
Electrical Specifications
- Recommended Load Impedance: 47kΩ
- Recommended Load Capacitance: 150 - 250pF
- Coil Impedance: 3.2kΩ at 1kHz
- DC Resistance: 750Ω
- Coil Inductance: 480mH at 1kHz
- Coil Wire: PCUHD® Pure Copper Ultra High Drawability
Tracking & Compliance
- Tracking Force Range: 1.8 - 2.2g
- Recommended Tracking Force: 2.0g
- Static Compliance: 20 x 10⁻⁶ cm/dyne
- Dynamic Compliance: 7 x 10⁻⁶ cm/dyne at 100Hz
Dimensions
- Height: 17.5mm
- Width: 18.3mm
- Depth: 29.0mm
- Weight: 8.8g
Phono Stage Compatibility
- Designed for moving-magnet phono inputs
- Recommended Input Load: 47kΩ
- Recommended Capacitance: 150 - 250pF
What’s in the Box
- 1 x Audio-Technica AT-VM745xML cartridge
- 2 x 10mm M2.6 cartridge installation screws
- 2 x 8mm M2.6 cartridge installation screws
- 2 x 5mm M2.6 cartridge installation screws
- 2 x washers
- 1 x non-magnetic screwdriver
- 1 x stylus cleaning brush
