Product Summary

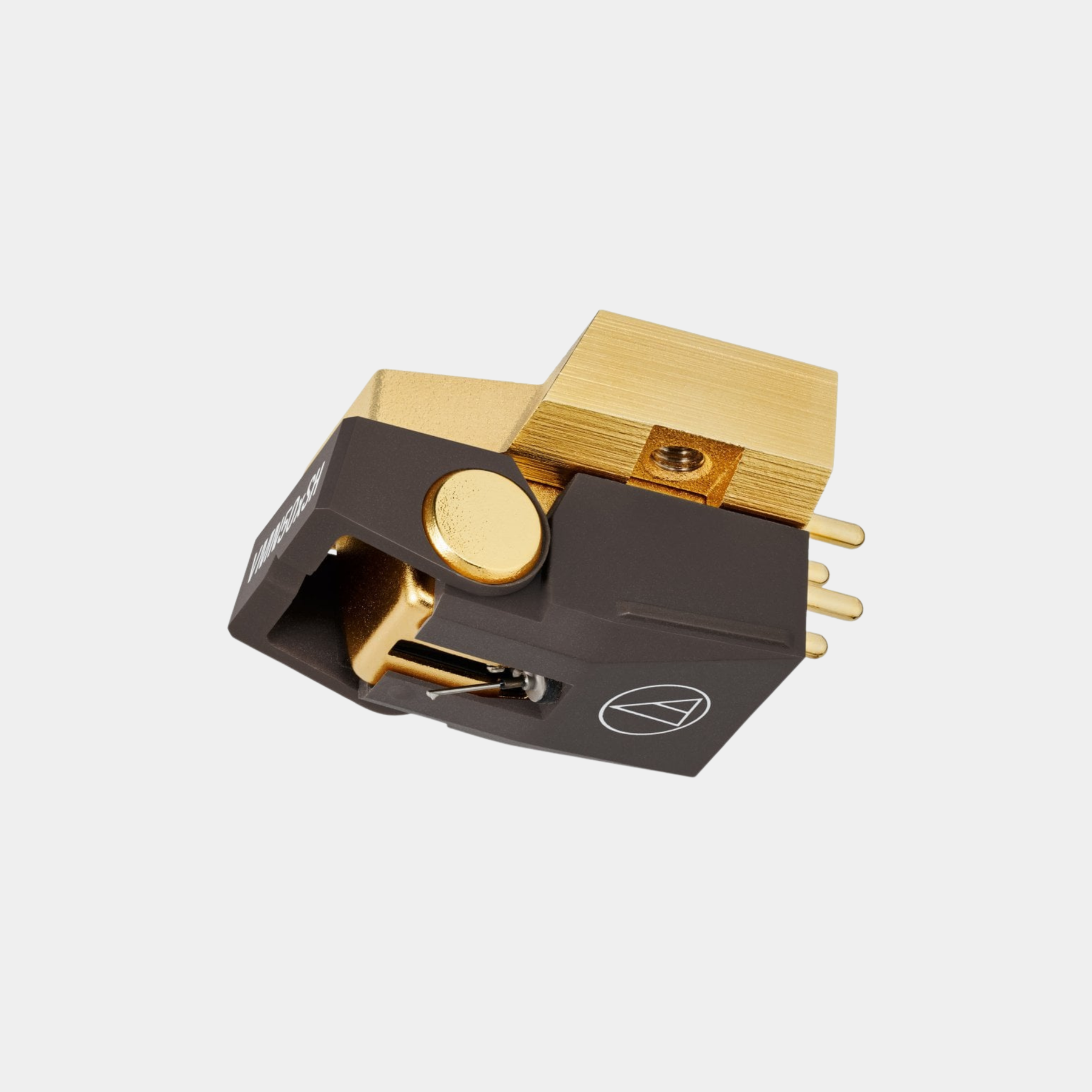

The Audio-Technica AT-VM750xSH is a premium VM dual moving magnet phono cartridge from the latest VMx Series, combining a nude Shibata stylus with a solid boron cantilever for highly detailed, dynamic vinyl playback. The cartridge is designed to deliver a rich and spacious presentation, with particularly strong mid-to-low frequency reproduction and precise stereo imaging.
Its nude Shibata stylus provides a large contact area with the record groove, allowing it to trace fine musical information while helping to minimise wear. The advanced line-contact profile is paired with a 0.28mm solid boron cantilever, selected for its rigidity and ability to transmit stylus movement rapidly and accurately to the cartridge generator.
The AT-VM750xSH uses Audio-Technica’s dual magnet VM architecture, with magnets positioned to correspond with the left and right channels of the stereo record groove. Paratoroidal coils improve generating efficiency, while a centre shield plate helps reduce crosstalk between the two channels for cleaner stereo separation.
Audio-Technica also uses PCUHD® (Pure Copper Ultra High Drawability) for the cartridge’s coil conductors. Combined with a reduced number of coil turns, this is designed to provide powerful bass, an expansive soundstage and improved transient response.
With a 3.7mV output and recommended 47kΩ load impedance, the AT-VM750xSH is designed for use with conventional moving-magnet phono stages. Its recommended load capacitance is 150 to 250pF, helping provide straightforward system matching with a wide variety of quality integrated amplifiers and standalone phono preamplifiers.
Installation is simplified by threaded M2.6 mounting holes built into the cartridge body, allowing the cartridge to be attached to a compatible headshell or integrated tonearm using screws without requiring separate nuts. The redesigned flip-up stylus protector also incorporates a V-shaped cut-out that helps indicate the stylus tip position when cueing a record.
The AT-VM750xSH accepts the replaceable AT-VMN50xSH stylus, making it possible to renew the stylus assembly without replacing the complete cartridge body.
Key Benefits
- Premium VM dual moving magnet stereo cartridge
- Nude Shibata line-contact stylus for detailed and accurate groove tracing
- 2.2 x 0.26mil stylus specification
- 0.28mm solid boron cantilever for rapid vibration transmission
- PCUHD® high-purity copper coil conductors
- Paratoroidal coil construction improves generating efficiency
- Centre shield plate helps reduce left/right channel crosstalk
- Designed for rich mid-to-low frequency reproduction and a broad soundstage
- 20Hz - 27kHz frequency response
- 3.7mV output suitable for standard moving-magnet phono stages
- 26dB channel separation at 1kHz
- Recommended tracking force of 2.0g
- Threaded mounting holes simplify cartridge installation
- V-cut flip-up stylus protector helps identify stylus position when cueing
- User-replaceable AT-VMN50xSH stylus
- 2 years manufacturers warranty
Technical Specifications
Cartridge Design
- Type: VM dual moving magnet stereo cartridge
- Mounting: Standard cartridge mounting with threaded M2.6 holes
- Weight: 8.8g
Stylus & Cantilever
- Stylus Type: Nude Shibata
- Stylus Size: 2.2 x 0.26mil
- Cantilever: 0.28mm diameter solid boron
- Vertical Tracking Angle: 20°
- Replacement Stylus: AT-VMN50xSH, sold separately
Electrical Performance
- Frequency Response: 20Hz - 27,000Hz
- Output Voltage: 3.7mV at 1kHz, 5cm/sec
- Channel Separation: 26dB at 1kHz
- Output Balance: 1.0dB at 1kHz
- Coil Impedance: 3.2kΩ at 1kHz
- DC Resistance: 750Ω
- Coil Inductance: 480mH at 1kHz
- Recommended Load Impedance: 47kΩ
- Recommended Load Capacitance: 150 - 250pF
Tracking & Compliance
- Tracking Force Range: 1.8 - 2.2g
- Recommended Tracking Force: 2.0g
- Static Compliance: 20 x 10⁻⁶cm/dyne
- Dynamic Compliance: 7 x 10⁻⁶cm/dyne at 100Hz
Generator Technology
- Dual magnet VM generator architecture
- PCUHD® coil conductors
- Paratoroidal coil construction
- Centre shield plate for reduced channel crosstalk
Dimensions
- Height: 29.0mm
- Width: 18.3mm
- Depth: 17.5mm
- Weight: 8.8g
- Threaded Holes: M2.6 x 2
Phono Stage Compatibility
- Designed for moving-magnet / MM phono inputs
- Recommended Load Impedance: 47kΩ
- Recommended Load Capacitance: 150 - 250pF
What’s in the Box
- 1 x Audio-Technica AT-VM750xSH cartridge
- 2 x 10.0mm M2.6 cartridge installation screws
- 2 x 8.0mm M2.6 cartridge installation screws
- 2 x 5.0mm M2.6 cartridge installation screws
- 2 x Washers
- 1 x Non-magnetic screwdriver
- 1 x Cleaning brush
