Product Summary

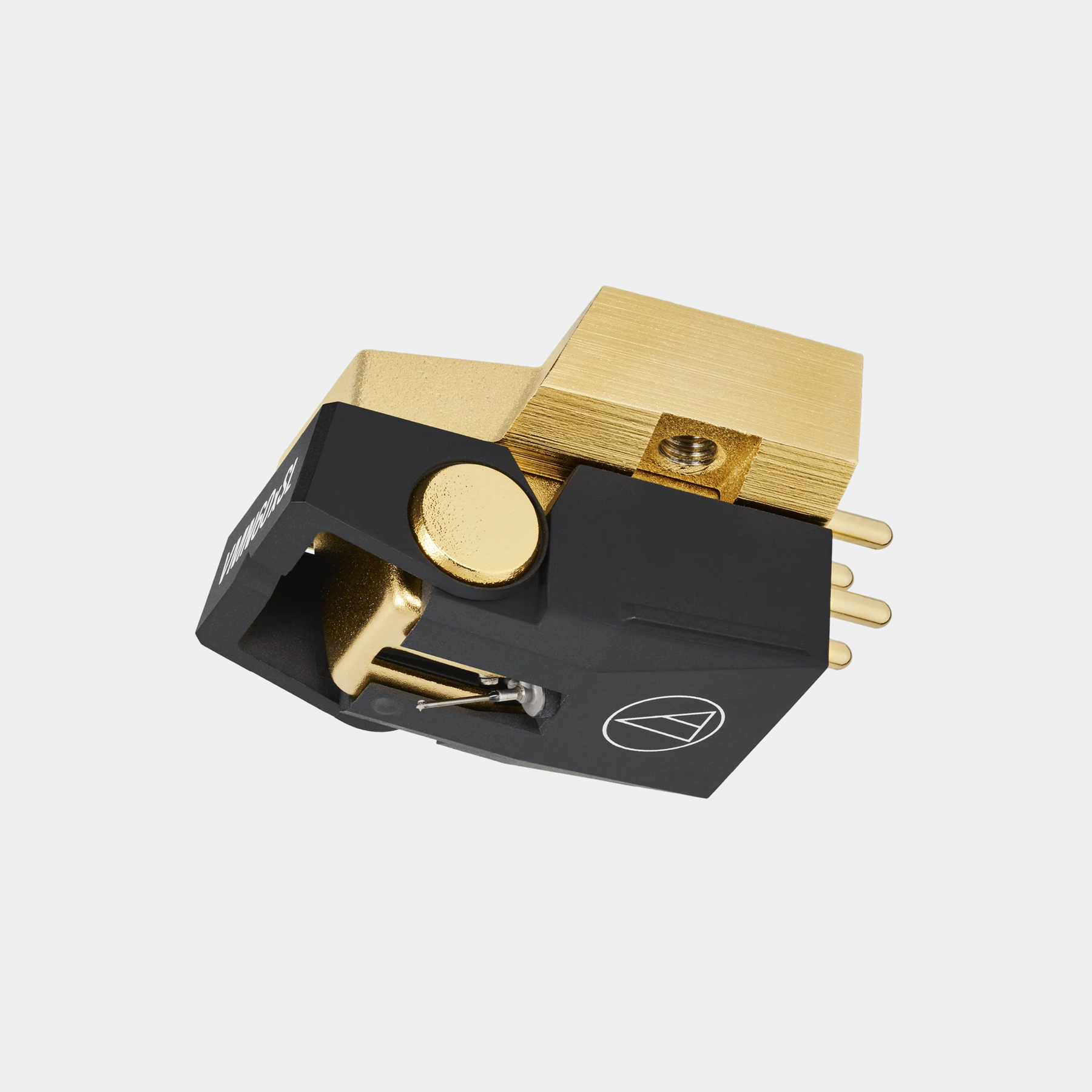

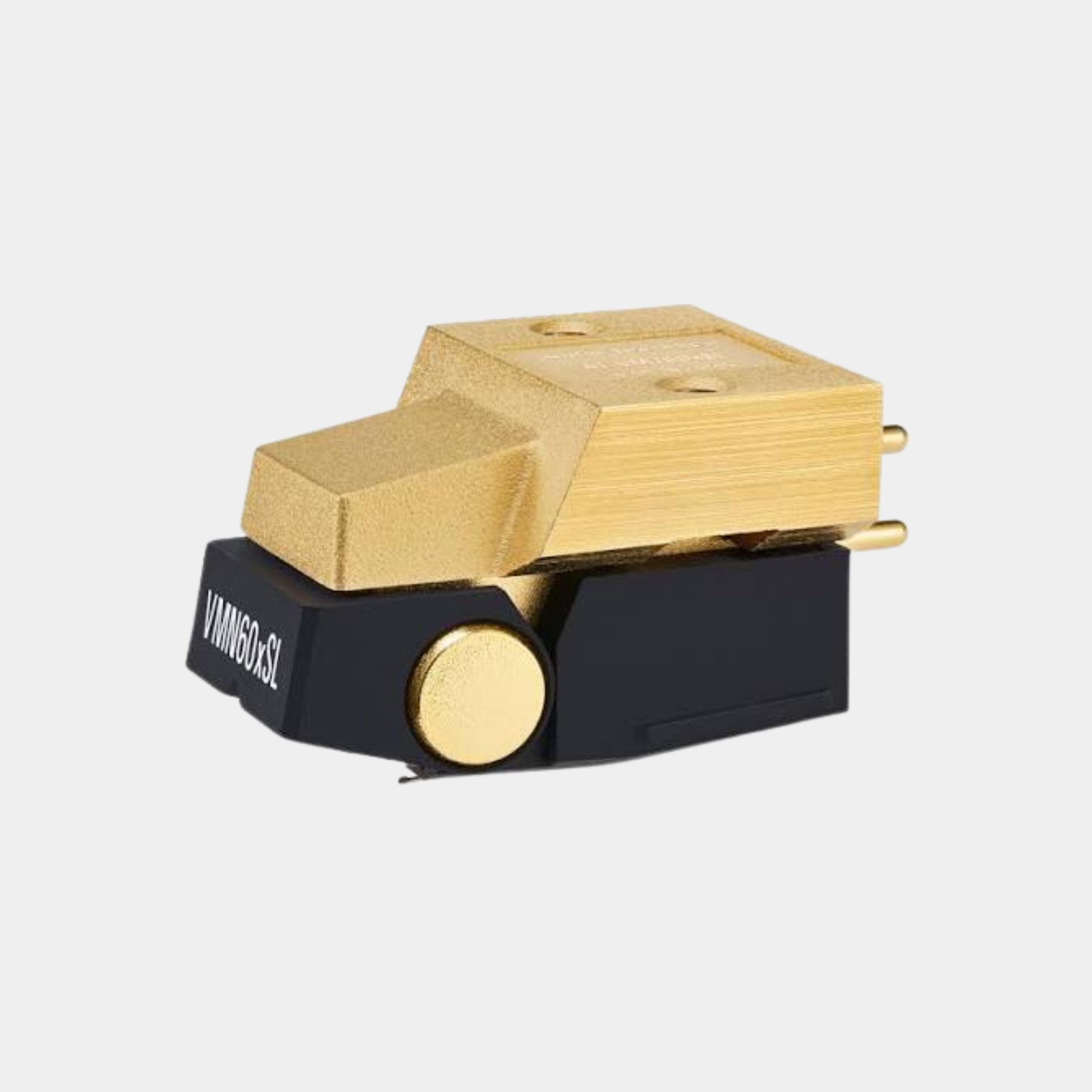

The Audio-Technica AT-VM760xSL is a premium dual moving magnet stereo cartridge designed to extract exceptional levels of detail, clarity and spatial information from vinyl records. Sitting at the top of Audio-Technica's AT-VMx stereo cartridge range, it combines a Special Line Contact stylus with a solid boron cantilever and an aluminium alloy cartridge body for highly precise groove tracking and refined analogue reproduction.
At the heart of the AT-VM760xSL is a nude Special Line Contact stylus. Its carefully shaped profile creates a large contact area with the record groove, allowing it to trace fine groove modulations with exceptional accuracy. This helps reveal subtle musical information while delivering extended high-frequency response, precise imaging and detailed spatial presentation.
The stylus is mounted to a 0.28mm diameter solid boron cantilever. Boron's high rigidity and excellent vibration transmission properties allow information picked up from the groove to be transferred rapidly and accurately to the cartridge generator, helping the AT-VM760xSL reproduce both delicate musical textures and fast dynamic changes with precision.
Audio-Technica has also upgraded the cartridge's internal generator system. PCUHD high-purity copper is used for the coil conductors, while a reduced number of coil turns helps improve responsiveness. The result is powerful low-frequency reproduction, an expansive soundstage and excellent transient performance.
A paratoroidal coil configuration uses two coils per channel to improve generating efficiency. A centre shield plate positioned between the left and right channels helps reduce electrical crosstalk, contributing to strong channel separation and a stable, clearly defined stereo image.
The cartridge body uses a die-cast aluminium alloy housing designed to suppress unwanted resonance and provide a rigid foundation for the high-performance stylus assembly. This allows the Special Line Contact stylus and boron cantilever to operate with greater accuracy and consistency.
Installation has also been improved across the AT-VMx generation. Threaded M2.6 mounting holes are built directly into the cartridge body, allowing the cartridge to be attached to compatible headshells or tonearms using screws without requiring separate mounting nuts. It is compatible with headshells and tonearms designed for standard 1/2-inch cartridge mounting.
A flip-up stylus protector incorporates a V-shaped guide that makes the stylus tip position easier to see when cueing a record. The replaceable stylus design also allows the AT-VM760xSL to accept compatible stereo replacement styli from the AT-VMx range, making future stylus replacement or experimentation straightforward.
Key Benefits
- Premium AT-VMx dual moving magnet stereo cartridge
- Nude Special Line Contact stylus for exceptionally accurate groove tracing
- Extended high-frequency response and detailed spatial reproduction
- Large stylus contact area helps reduce wear while maintaining precise tracking
- 0.28mm diameter solid boron cantilever
- Fast and accurate transmission of groove vibrations
- PCUHD high-purity copper coil conductors
- Reduced coil turns for improved response and transient performance
- Paratoroidal coil construction for high generating efficiency
- Centre shield plate helps minimise crosstalk between left and right channels
- Die-cast aluminium alloy body helps suppress unwanted resonance
- 26dB channel separation at 1kHz
- Frequency response from 20Hz to 30kHz
- 3.7mV output suitable for conventional moving magnet phono stages
- Standard 2.0g tracking force
- Threaded M2.6 mounting holes simplify cartridge installation
- Compatible with standard 1/2-inch cartridge mounting
- V-cut stylus protector provides a clear visual guide when cueing records
- Replaceable AT-VMN60xSL stylus
- Compatible with a range of stereo AT-VMx replacement styli
- 2 years manufacturer warranty
Technical Specifications
Cartridge
- Product Type: Stereo phono cartridge
- Cartridge Type: VM dual moving magnet
- Frequency Response: 20Hz - 30,000Hz
- Output Voltage: 3.7mV at 1kHz, 5cm/sec
- Channel Separation: 26dB at 1kHz
- Output Balance: 1.0dB at 1kHz
- Vertical Tracking Angle: 20°
Stylus & Cantilever
- Stylus Type: Special Line Contact
- Stylus Construction: Nude
- Stylus Curvature Radius: 1.5 × 0.28 mil
- Cantilever: 0.28mm diameter solid boron
- Replacement Stylus: AT-VMN60xSL, sold separately
Tracking & Compliance
- Tracking Force Range: 1.8 - 2.2g
- Recommended Tracking Force: 2.0g
- Static Compliance: 17.5 × 10-6 cm/dyne
- Dynamic Compliance: 7 × 10-6 cm/dyne at 100Hz
Electrical Specifications
- Recommended Load Impedance: 47k ohms
- Recommended Load Capacitance: 150 - 250pF
- Coil Impedance: 3.2k ohms at 1kHz
- DC Resistance: 750 ohms
- Coil Inductance: 480mH at 1kHz
- Coil Conductor: PCUHD high-purity copper
- Generator Construction: Paratoroidal coil design
Mounting
- Mounting Standard: 1/2-inch cartridge mounting
- Threaded Mounting Holes: M2.6 × 2
- Threaded cartridge body allows installation without separate mounting nuts
Dimensions & Weight
- Height: 17.5mm
- Width: 18.3mm
- Depth: 29.0mm
- Weight: 8.8g
What’s in the Box
- 1 x Audio-Technica AT-VM760xSL cartridge
- 2 x M2.6 cartridge installation screws - 10.0mm
- 2 x M2.6 cartridge installation screws - 8.0mm
- 2 x M2.6 cartridge installation screws - 5.0mm
- 2 x Washers
- 1 x Non-magnetic screwdriver
- 1 x Stylus brush
