Product Summary
The Eversolo AMP-F10 is a high-power Class AB stereo power amplifier designed to deliver exceptional drive, control and dynamic authority. Built as a natural partner for Eversolo’s premium streamers and preamplifiers, it combines substantial power reserves with flexible connectivity and a refined, low-distortion amplifier design.
In stereo mode, the AMP-F10 delivers 200 watts per channel into 8 ohms, 320 watts per channel into 4 ohms and up to 450 watts per channel into 2 ohms. For systems requiring even greater output, the amplifier can be switched into bridged-mono operation, producing up to 650 watts into 8 ohms or 950 watts into 4 ohms.
At the heart of the AMP-F10 is a 1000-watt dual-channel independent linear power supply. By supplying each channel separately, the design helps reduce interaction between the left and right channels while maintaining the current reserves needed for demanding loudspeakers and wide musical dynamics.
Five pairs of precision-matched high-current MOSFET output transistors are used for each channel. Combined with a damping factor greater than 600, ultra-low distortion and advanced dual-differential amplifier circuitry, the AMP-F10 is engineered to deliver powerful bass, clear detail and a stable, expansive stereo presentation.
Balanced XLR and unbalanced RCA inputs make the AMP-F10 easy to integrate into a wide range of hi-fi systems. Switchable 23dB and 29dB gain settings allow it to be matched more precisely with different preamplifiers, DACs and source components, while 12V trigger connectivity supports convenient system-wide power control.
Key Benefits
- High-power Class AB stereo power amplifier with Class A bias
- 200 watts per channel into 8 ohms
- 320 watts per channel into 4 ohms
- 450 watts per channel into 2 ohms
- Bridged-mono output of up to 650 watts into 8 ohms
- Bridged-mono output of up to 950 watts into 4 ohms
- 1000-watt dual-channel independent linear power supply provides substantial current reserves
- Five pairs of precision-matched high-current MOSFET output transistors per channel
- Damping factor greater than 600 helps provide excellent loudspeaker and bass control
- Advanced DC filtering helps reduce mains interference and transformer hum
- Dual-differential amplifier circuitry helps minimise noise and distortion
- Ultra-low 0.008% THD+N supports clean and accurate music reproduction
- Signal-to-noise ratio of up to 113dB preserves fine detail and dynamic contrast
- Balanced XLR and unbalanced RCA analogue inputs
- Switchable 23dB and 29dB gain settings for flexible system matching
- Switchable stereo and bridged-mono operating modes
- 12V trigger input and output for coordinated system power control
- Illuminated front-panel VU meters provide a clear visual indication of amplifier output

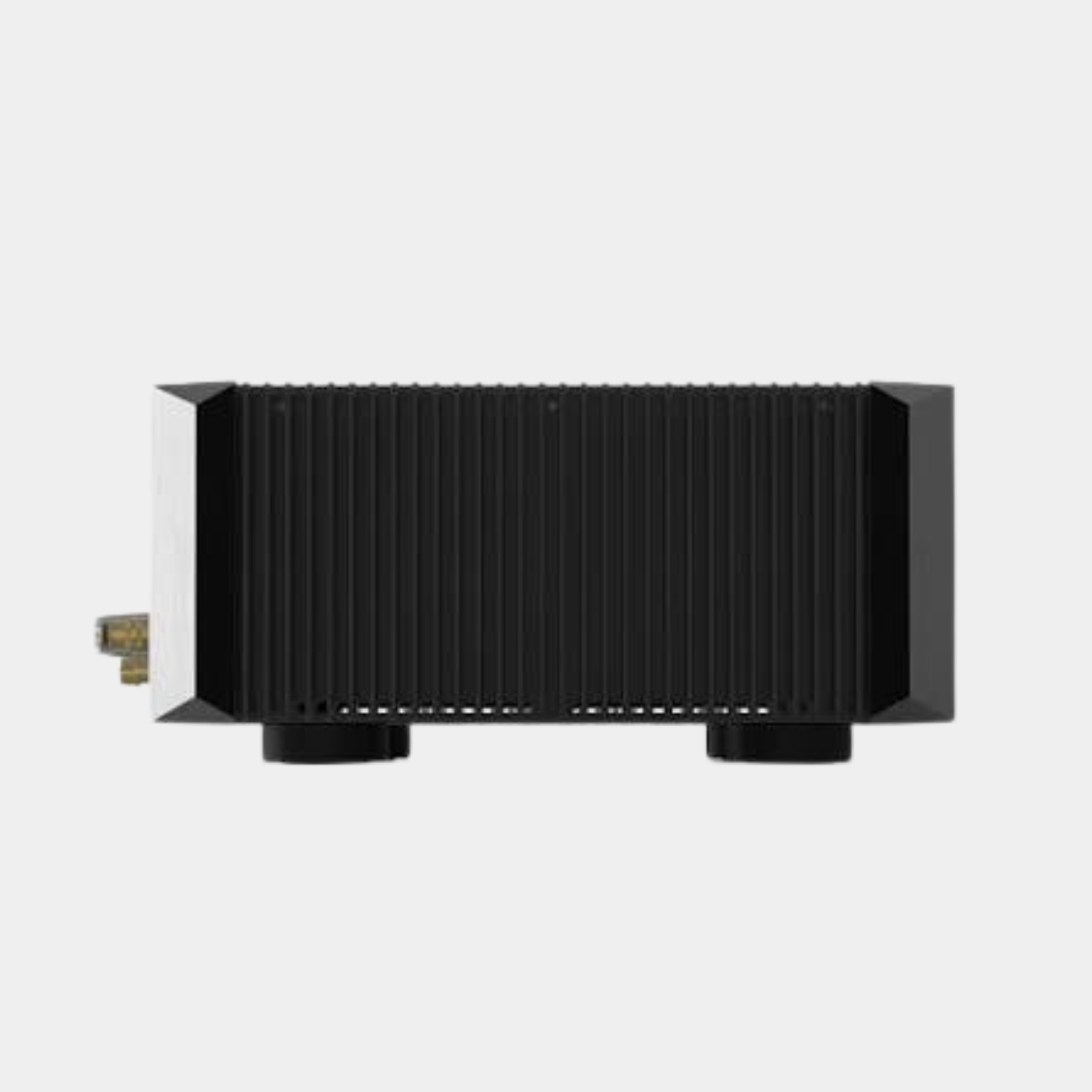

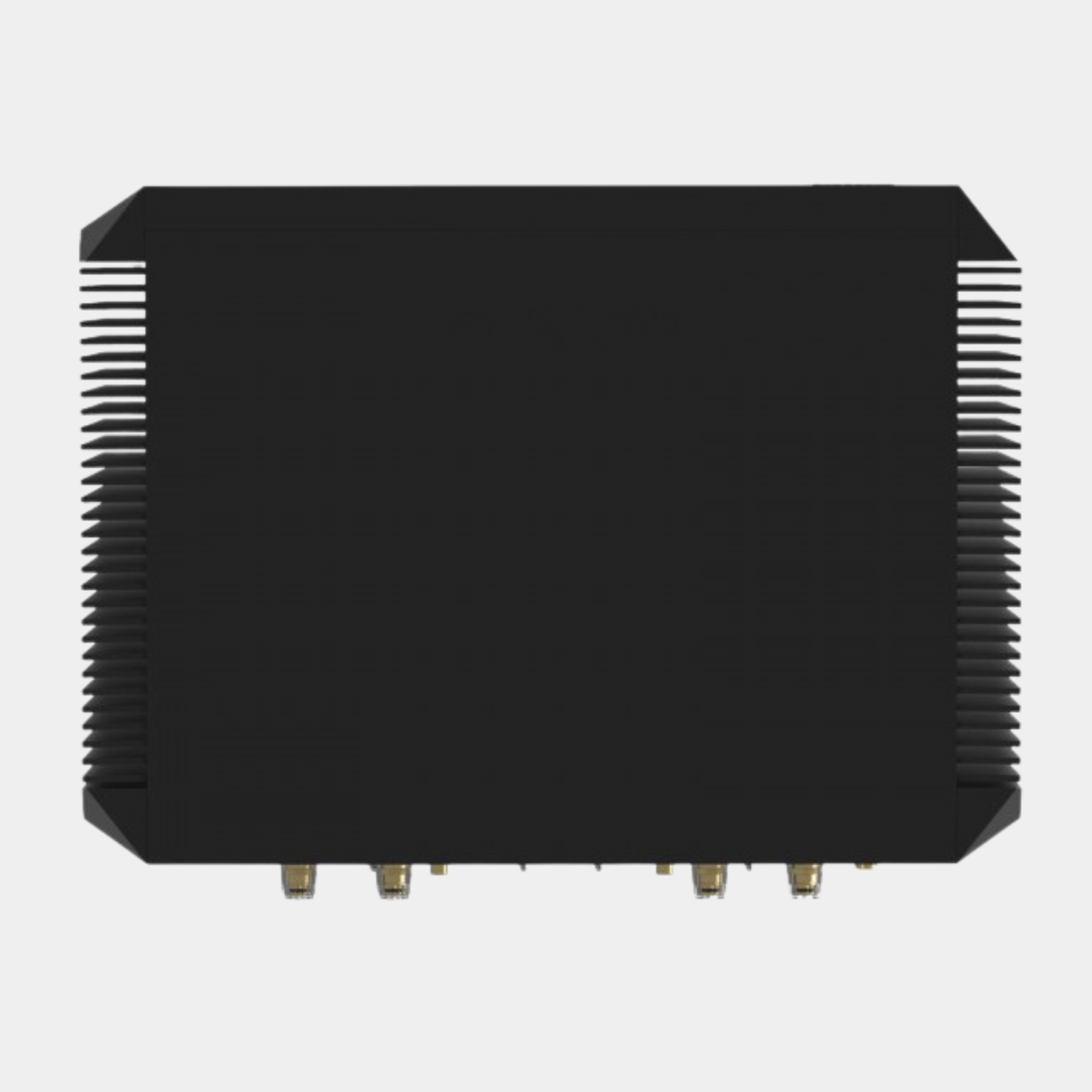

- Solid aluminium construction with substantial side-mounted heatsinks
Technical Specifications
Amplifier Section
- Product Type: Stereo and bridged-mono power amplifier
- Operating Mode: Class AB with Class A bias
- Stereo Power Output into 8 Ω: 2 x 200 W RMS
- Stereo Power Output into 4 Ω: 2 x 320 W RMS
- Stereo Power Output into 2 Ω: 2 x 450 W RMS
- Bridged-Mono Power Output into 8 Ω: 650 W RMS
- Bridged-Mono Power Output into 4 Ω: 950 W RMS
- THD+N: 0.008% at 1 kHz
- Frequency Response: 10 Hz - 30 kHz, ±0.5dB at 1 W into 8 Ω
- Damping Factor: Greater than 600 at 8 Ω, 1 kHz
- Crosstalk: Less than or equal to -95dB at 200 W into 8 Ω, 1 kHz
Signal-to-Noise Ratio
- 23dB Gain Setting: At least 113dB, A-weighted
- 29dB Gain Setting: At least 110dB, A-weighted

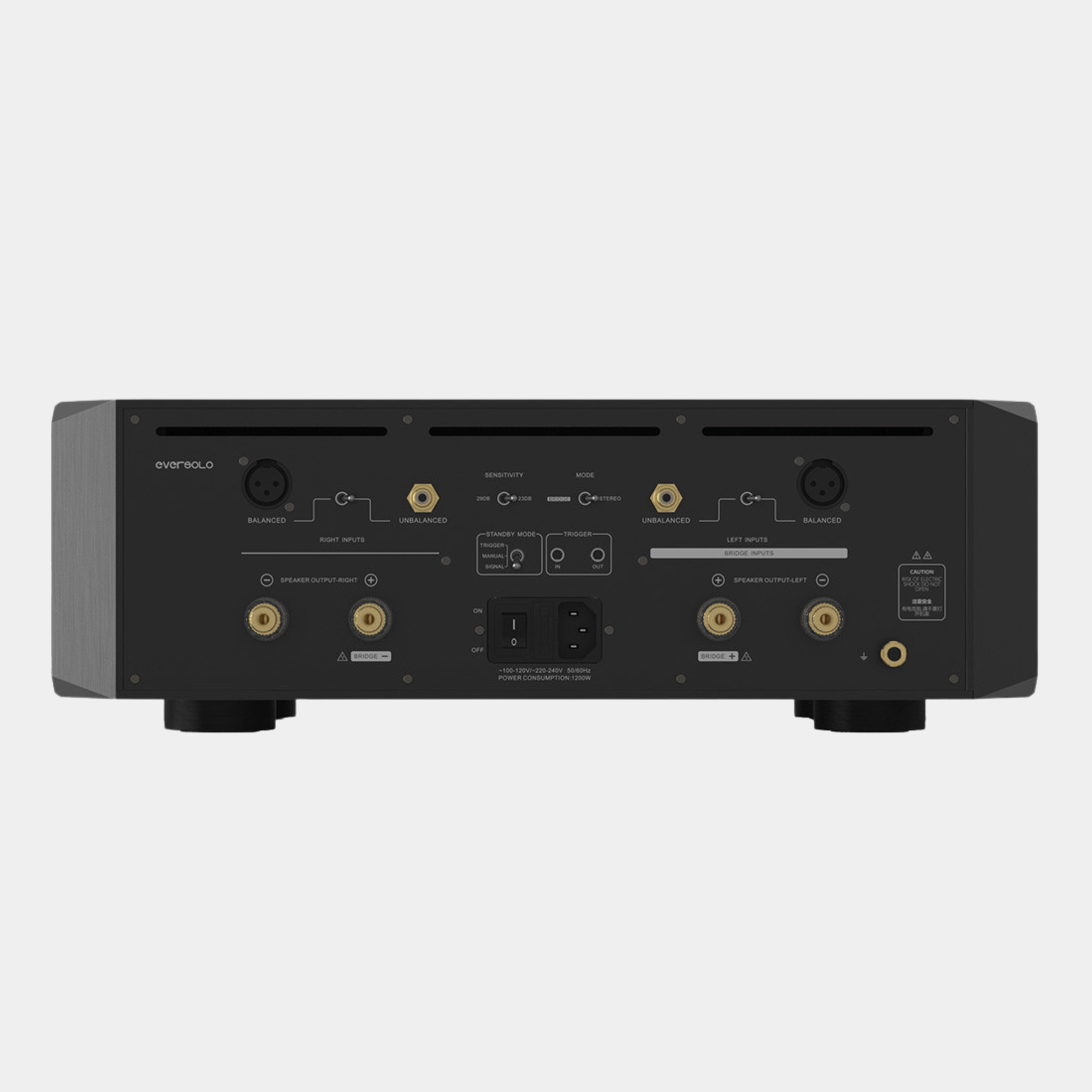

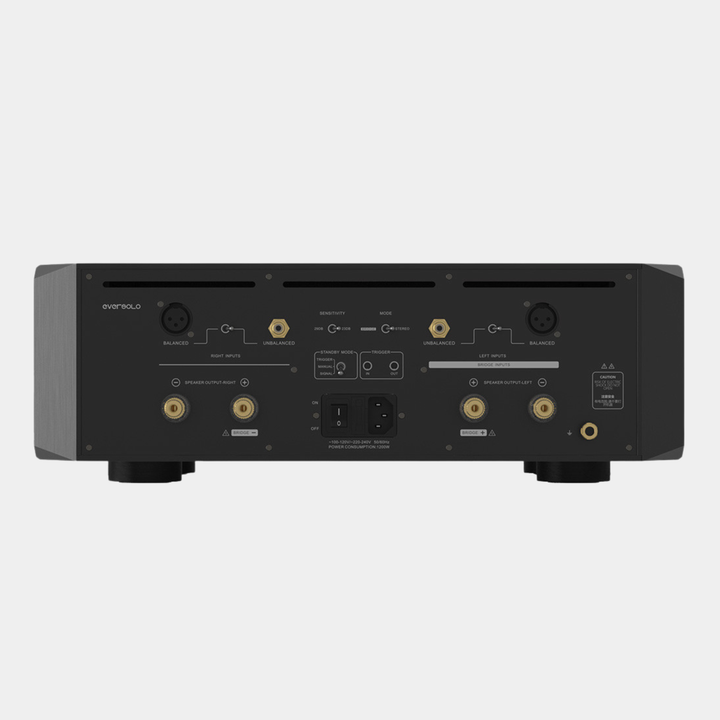

Inputs & System Connections
- Balanced Analogue Input: 1 x stereo XLR pair
- Unbalanced Analogue Input: 1 x stereo RCA pair
- Input Selection: Rear-panel XLR/RCA selector switch
- XLR Input Impedance: 10 kΩ
- RCA Input Impedance: 10 kΩ
- Gain Selection: 23dB or 29dB
- Operating Mode Selection: Stereo or bridged mono
- External Control: 12V trigger input and output
- Speaker Connections: Heavy-duty binding posts
Input Sensitivity
- XLR Input at 23dB Gain: 5.2V for 200 W into 8 Ω
- XLR Input at 29dB Gain: 2.4V for 200 W into 8 Ω
- RCA Input at 23dB Gain: 2.65V for 200 W into 8 Ω
- RCA Input at 29dB Gain: 1.3V for 200 W into 8 Ω
Power Supply & Amplifier Design
- Power Supply: 1000W dual-channel independent linear power supply
- Output Devices: Five pairs of precision-matched high-current MOSFETs per channel
- Amplifier Circuit: Advanced dual-differential design
- DC Filtering: Integrated mains DC filtering circuit
- Maximum Power Consumption: 1200 W
- Power Requirement: 110-120V AC, 60Hz or 220-240V AC, 50Hz
- Operating Voltage Selection: 115V/230V selector located beneath the amplifier

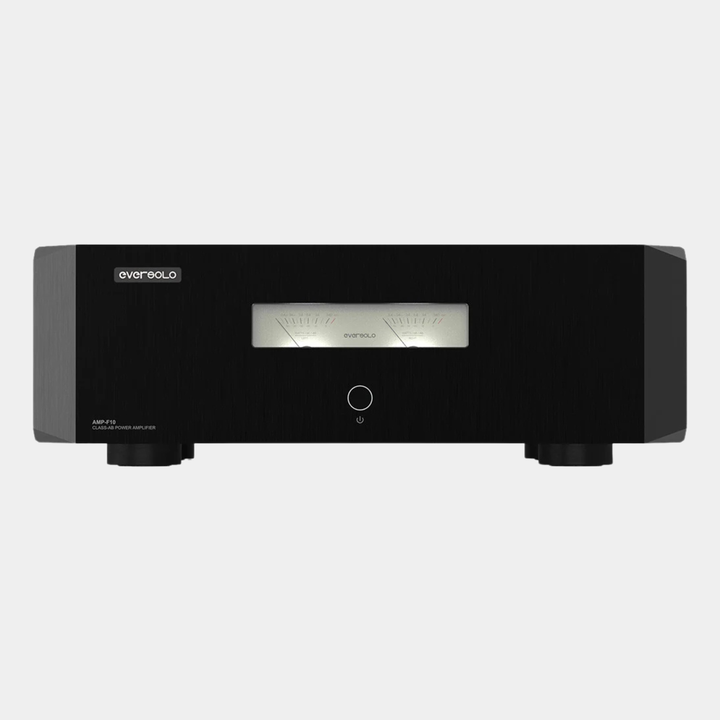

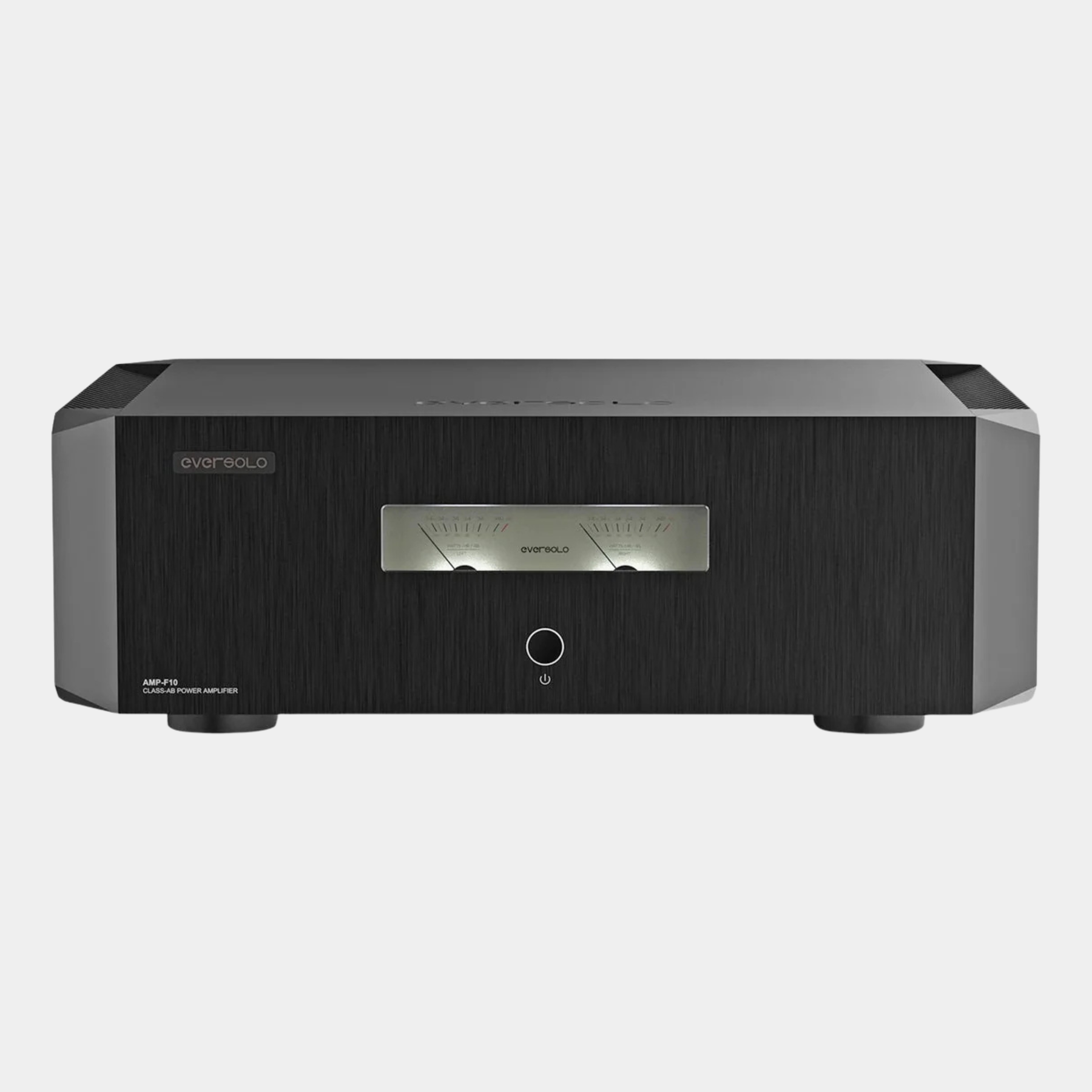

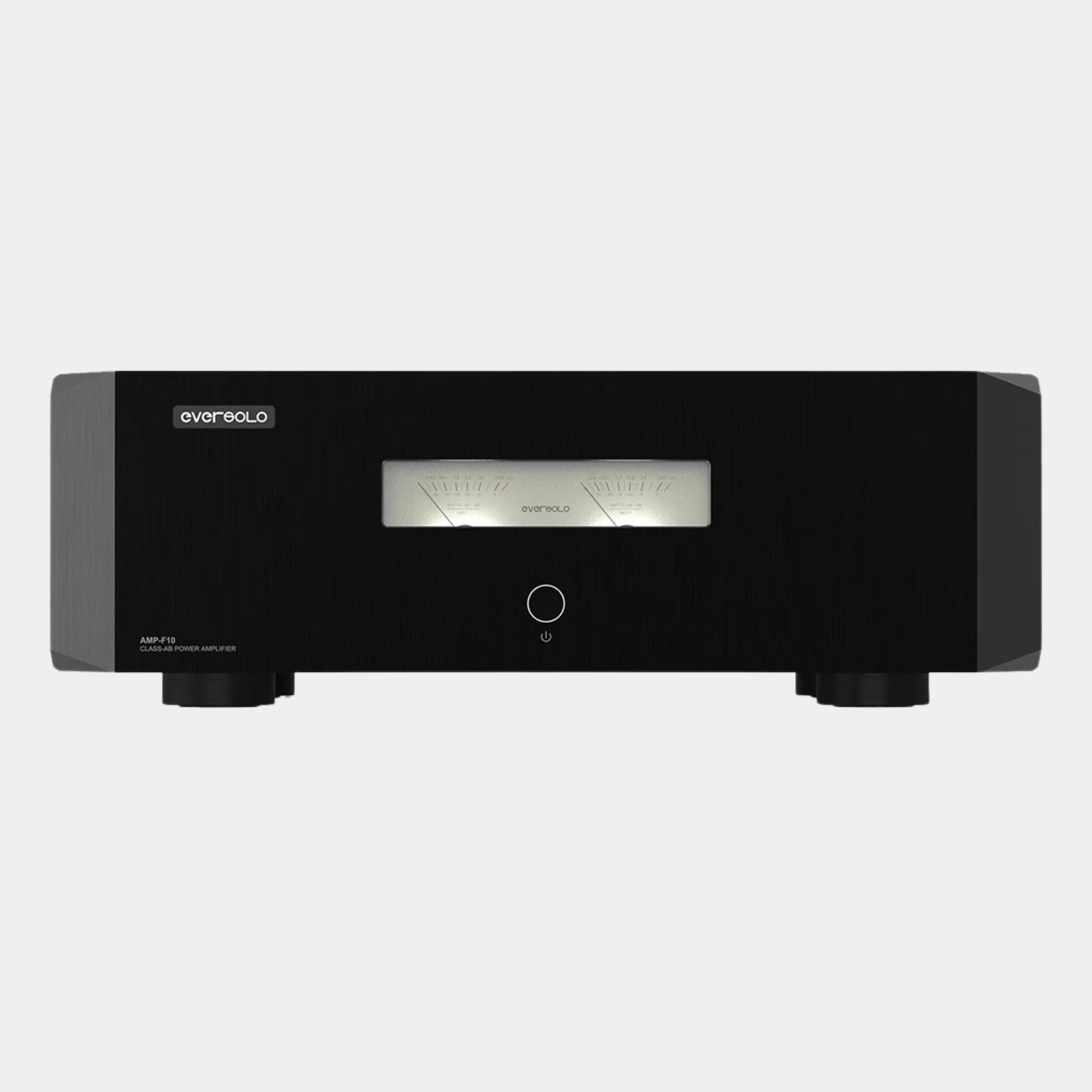

Front-Panel Features
- Illuminated analogue VU meters
- Front standby button
- Bi-colour operating-status indicator
- White Indicator: Amplifier operating
- Orange Indicator: Amplifier in standby
Dimensions & Weight
- Dimensions (W × D × H): 430 x 310 x 147 mm, including feet
- Net Weight: 18 kg
- Gross Weight: 21.5 kg
- Finish: Black
What’s in the Box
- Eversolo AMP-F10 power amplifier
- Power cable
- Trigger cable
- User manual
