Product Summary
The Eversolo DAC-Z10 is a flagship high-resolution digital-to-analogue converter, fully balanced analogue preamplifier and dedicated headphone amplifier designed to become the control centre of a premium audio system. It combines dual-mono AKM conversion, extensive digital and analogue connectivity, precision analogue volume control and advanced clock management within a substantial aluminium chassis.
Eversolo’s Fully Isolated Architecture separates the digital and analogue domains to help minimise interference and preserve signal purity. Three independent ultra-low-noise linear power supplies separately serve the left channel, system circuitry and right channel, providing each section with its own clean and stable power source.
The conversion stage uses two independent AKM decoding modules, with one AK4191 and AK4499 combination dedicated to each channel. This dual-mono arrangement maintains separation between the left and right signal paths from digital processing through conversion, helping achieve wide dynamic range, extremely low distortion and precise stereo imaging.
USB-B and IIS inputs support native DSD512 and PCM up to 768kHz/32-bit. Additional connectivity includes two optical inputs, two coaxial inputs, balanced AES/EBU, HDMI ARC, Bluetooth and an external clock input, making the DAC-Z10 suitable for computers, streaming transports, televisions and other digital sources.
The Eversolo Precision Core combines an OCXO temperature-controlled crystal oscillator, Phase-Locked Loop technology and FPGA clock reconstruction. External 10MHz and 25MHz master clocks are also supported, with selectable 50Ω or 75Ω input impedance.
A fully balanced analogue preamplifier provides both XLR and RCA inputs and outputs, with up to +10dB of analogue gain. Separate high-precision R2R resistor networks control the left and right channels in the analogue domain, helping preserve resolution, channel balance and phase accuracy throughout the volume range.
The dedicated 6.35mm headphone amplifier automatically detects connected-headphone impedance and provides low, medium and high gain settings. With output of up to 1 watt into both 16Ω and 32Ω loads, it can accommodate a broad selection of dynamic and planar-magnetic headphones.

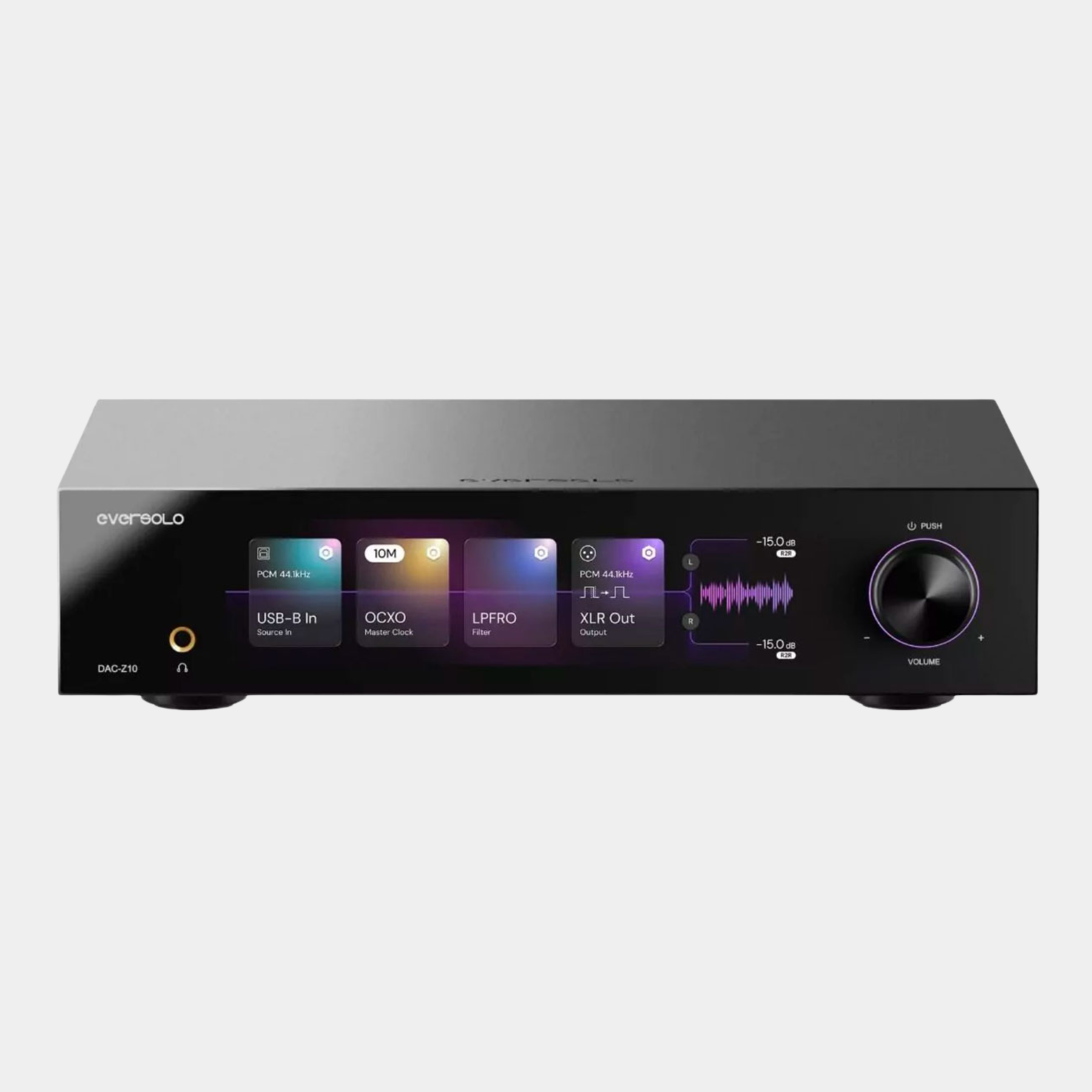

An 8.8-inch IPS touchscreen provides clear access to source selection, output settings, volume and system configuration. The DAC-Z10 can also be operated using the supplied remote control or the Eversolo mobile application.
Key Benefits
- Flagship digital-to-analogue converter, analogue preamplifier and headphone amplifier
- Eversolo Fully Isolated Architecture separates the digital and analogue domains
- Dual-mono conversion with an independent AK4191 and AK4499 DAC module for each channel
- AKM Velvet Sound architecture balances high resolution with a natural tonal presentation
- Three independent linear power supplies serve the left channel, system and right channel
- Specified power-supply noise as low as 42μV
- Fully balanced signal architecture
- OPA1612 operational-amplifier circuitry
- USB-B and IIS inputs support native DSD512 and PCM up to 768kHz/32-bit
- Eight configurable IIS input modes provide broad source compatibility
- Dual optical and dual coaxial digital inputs
- Balanced AES/EBU digital input
- HDMI ARC and eARC integration for compatible televisions
- Qualcomm QCC5125 Bluetooth 5.0 receiver
- OCXO temperature-controlled crystal oscillator
- Phase-Locked Loop and FPGA clock-reconstruction technologies
- External 10MHz and 25MHz master-clock support
- Selectable 50Ω and 75Ω external-clock impedance
- Fully balanced analogue preamplifier with XLR and RCA inputs
- Balanced XLR and unbalanced RCA preamplifier outputs
- Up to +10dB of analogue preamplifier gain
- Independent left- and right-channel R2R analogue volume-control networks
- Dedicated 6.35mm headphone-amplifier output
- Automatic headphone-impedance detection
- Low, medium and high headphone-gain settings
- Up to 1W headphone output into 16Ω or 32Ω
- Recommended for headphones with impedances from 16Ω to 300Ω
- 8.8-inch IPS touchscreen
- Touchscreen, remote-control and mobile-app operation
- Aviation-grade aluminium-alloy chassis
Technical Specifications
General
- Product Type: High-resolution DAC, analogue preamplifier and headphone amplifier
- Model: Eversolo DAC-Z10
- Display: 8.8-inch IPS touchscreen
- Chassis Material: Aluminium alloy
- Main Processor: DCP8568
- Left-Channel DAC Module: AKM AK4191 and AK4499
- Right-Channel DAC Module: AKM AK4191 and AK4499
- Operational Amplifier: OPA1612
- USB Audio Interface: Multi-core USB audio processor
- Architecture: Eversolo Fully Isolated Architecture
Power Supply
- Power-Supply Design: Three independent ultra-low-noise linear power supplies
- Independent Supply Sections: Left channel, system circuitry and right channel
- Transformers: Three independent toroidal transformers
- Specified Power-Supply Noise: As low as 42μV
Clock System
- Internal Clock: OCXO temperature-controlled crystal oscillator
- Clock Processing: Phase-Locked Loop technology
- Clock Reconstruction: FPGA-based clock reconstruction
- External Clock Frequencies: 10MHz and 25MHz
- External Clock Impedance: Selectable 50Ω or 75Ω
Digital Inputs
- USB-B Audio Input: 1
- USB-B Compatibility: Windows 10 and later, macOS, Android and iOS
- USB-B Maximum Resolution: Native DSD512 and PCM up to 768kHz/32-bit
- IIS Digital Input: 1
- IIS Input Modes: 8 configurable modes
- IIS Maximum Resolution: Native DSD512 and PCM up to 768kHz/32-bit
- AES/EBU Digital Input: 1
- AES/EBU Maximum Resolution: PCM up to 192kHz/24-bit and DSD64 through DoP
- Optical Digital Inputs: 2
- Optical Maximum Resolution: PCM up to 192kHz/24-bit and DSD64 through DoP
- Coaxial Digital Inputs: 2
- Coaxial Maximum Resolution: PCM up to 192kHz/24-bit and DSD64 through DoP
- HDMI ARC Input: Stereo PCM up to 192kHz/24-bit
Bluetooth Input
- Bluetooth Module: Qualcomm QCC5125
- Bluetooth Version: 5.0
- Supported Codecs: SBC and AAC
Analogue Inputs & Preamplifier
- Balanced Analogue Input: 1 x stereo XLR pair
- Unbalanced Analogue Input: 1 x stereo RCA pair
- Analogue Gain: Up to +10dB
- Volume Control: Independent left- and right-channel R2R resistor networks
- Preamplifier Architecture: Fully balanced
Analogue Outputs
- Balanced Preamplifier Output: 1 x stereo XLR pair
- Unbalanced Preamplifier Output: 1 x stereo RCA pair
- Headphone Output: 1 x 6.35mm single-ended connection
XLR Output Performance
- Output Level: 5Vrms at 0dBFS
- THD+N: 0.00008% at 1kHz, equivalent to -122dB
- Noise: Less than 1.2μVrms, unweighted
- Signal-to-Noise Ratio: 130dB, A-weighted
- Dynamic Range: 130dB, A-weighted
- Frequency Response: 20Hz - 20kHz, ±0.1dB
- Crosstalk: -130dB
RCA Output Performance
- Output Level: 2.5Vrms at 0dBFS
- THD+N: 0.000097% at 1kHz, equivalent to -120dB
- Noise: Less than 1.5μVrms, unweighted
- Signal-to-Noise Ratio: 128dB, A-weighted
- Dynamic Range: 128dB, A-weighted
- Frequency Response: 20Hz - 20kHz, ±0.1dB
- Crosstalk: -123dB
Headphone Amplifier
- Connection: 6.35mm single-ended
- Recommended Headphone Impedance: 16Ω - 300Ω
- Gain Settings: Low, medium and high
- Low-Gain Recommended Impedance: 16Ω - 32Ω
- High-Gain Recommended Impedance: 32Ω - 300Ω
- High-Gain Output Power into 16Ω: 1W
- High-Gain Output Power into 32Ω: 1W
- High-Gain Output Power into 300Ω: 0.16W
Headphone Performance - Low Gain
- Output Level: 4Vrms at 0dBFS
- THD+N: 0.0003% at 1kHz, equivalent to -110dB
- Noise: Less than 2.5μVrms, unweighted
- Signal-to-Noise Ratio: 124dB, A-weighted
- Dynamic Range: 124dB, A-weighted
- Frequency Response: 20Hz - 20kHz, ±0.1dB
Headphone Performance - Medium Gain
- Output Level: 5.6Vrms at 0dBFS
- THD+N: 0.00018% at 1kHz, equivalent to -115dB
- Noise: Less than 2.5μVrms, unweighted
- Signal-to-Noise Ratio: 126dB, A-weighted
- Dynamic Range: 126dB, A-weighted
- Frequency Response: 20Hz - 20kHz, ±0.1dB
Headphone Performance - High Gain
- Output Level: 7Vrms at 0dBFS
- THD+N: 0.00013% at 1kHz, equivalent to -118dB
- Noise: Less than 2.5μVrms, unweighted
- Signal-to-Noise Ratio: 127dB, A-weighted
- Dynamic Range: 127dB, A-weighted
- Frequency Response: 20Hz - 20kHz, ±0.1dB
Control & System Integration
- Front-Panel Control: 8.8-inch IPS touchscreen and control knob
- Remote Control: Included
- Mobile-App Control: Supported
- Trigger Integration: Supported
- Service USB Port: 1 x USB 2.0 for firmware updates
Power & Dimensions
- Power Requirement: AC 110-240V, 50/60Hz
- Rated Power Consumption: 32W
- Dimensions (W × D × H): 365 x 310 x 88 mm
What’s in the Box
- Eversolo DAC-Z10 digital-to-analogue converter
- Remote control
- Power cable
- USB data cable
- USB drive for firmware upgrades
- Trigger cable
- Polishing cloth
- User manual
