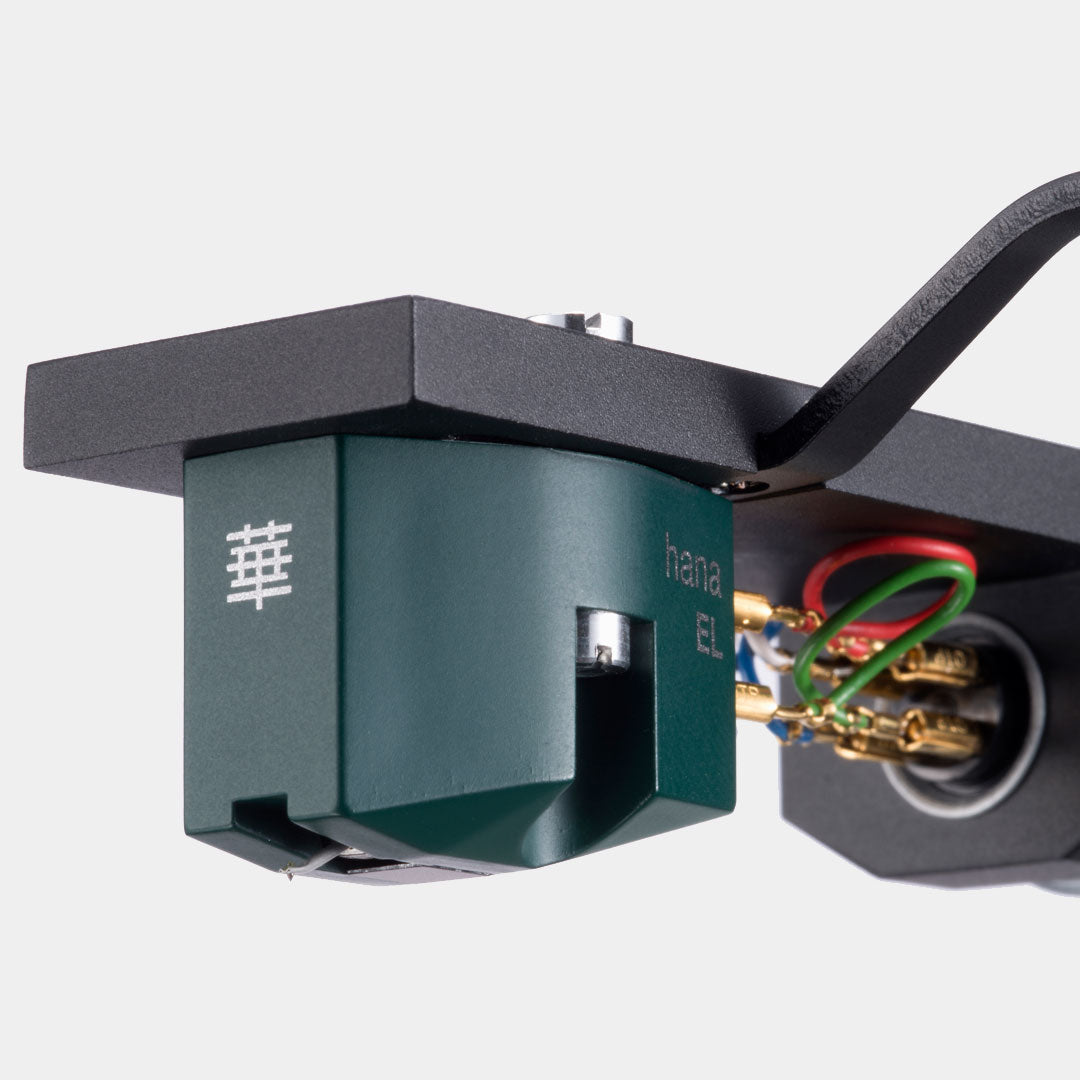

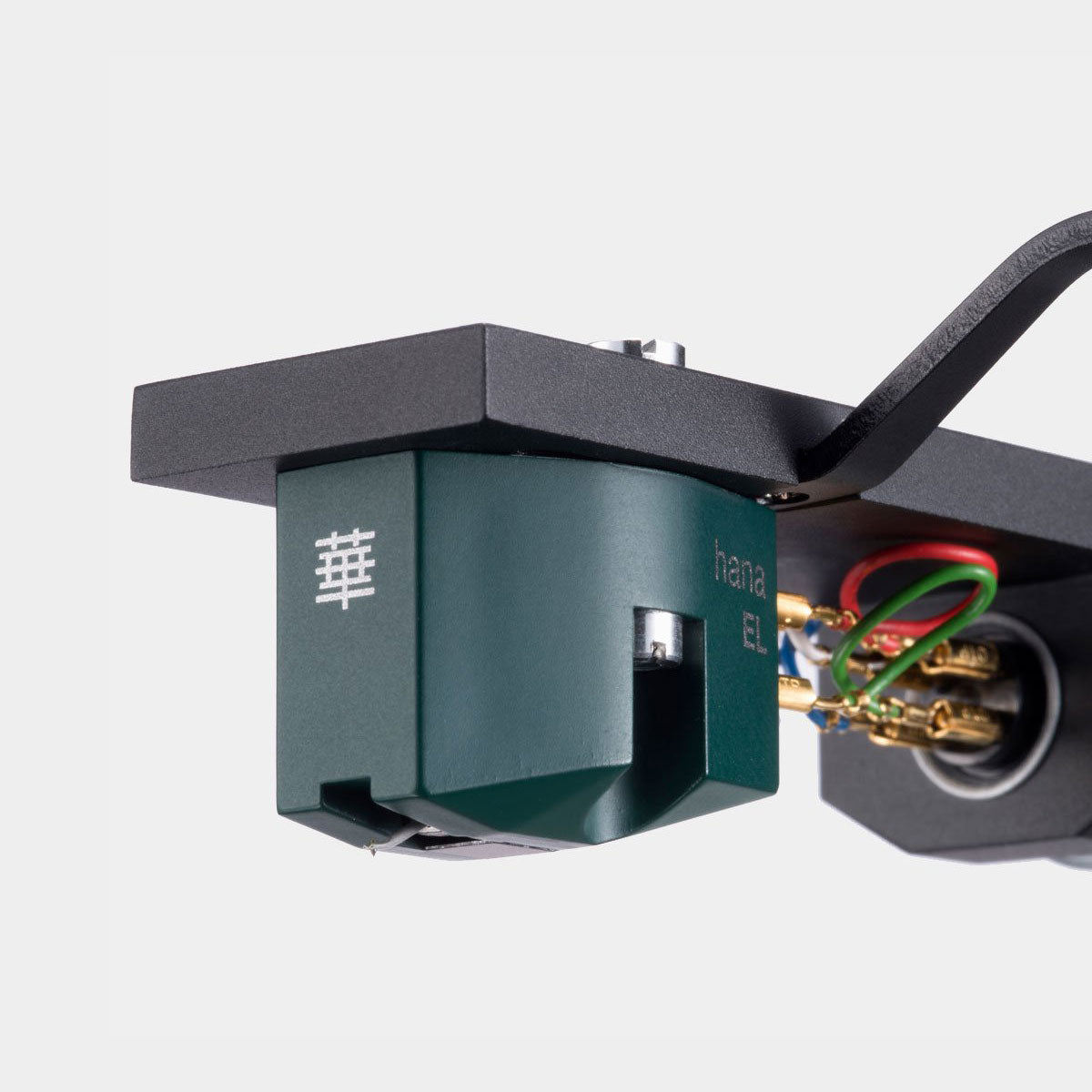

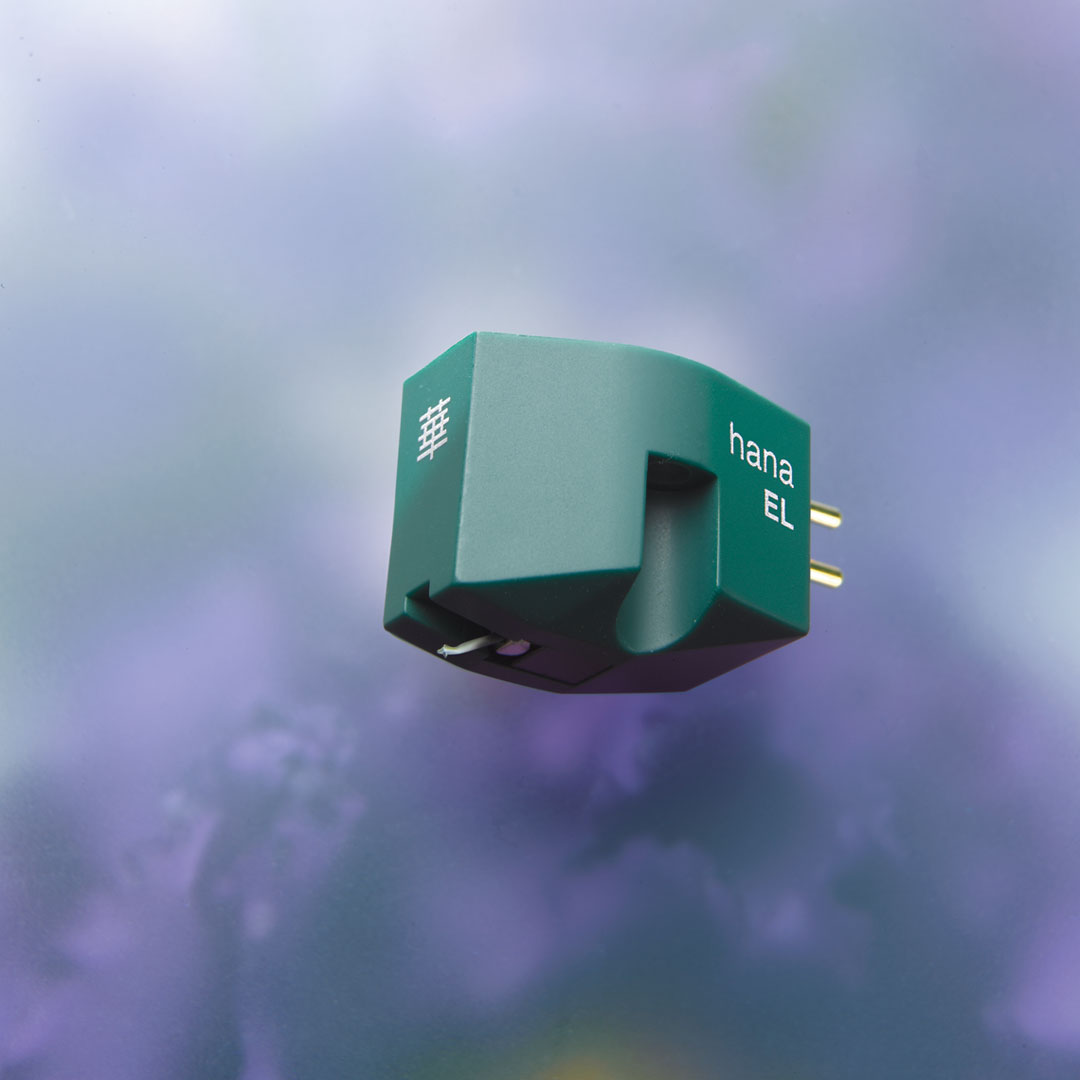

Hana EL Low-Output Moving Coil Cartridge
- UK Wide Shipping Available
- Long established Official Retailer
- Usually in stock and dispatched in 1-5 working days
The Hana EL cartridge has a synthetic Elliptical diamond stylus fitted to a high rigidity aluminum cantilever with cross-shaped armature, offering super transparency and excellent trackability. The body is manufactured from a composite low resonance plastic material in dark green.
This competitively priced Low output moving coil cartridge offers great quality sound referenced against similar priced cartridges. The EL (Elliptical Low output) offers 0.5mv/1KHz output.
SPECIFICATIONS
| Model No. | HANA-EL |
| Stylus | Synthetic Elliptical |
| Cantilever | Aluminum |
| Output level | 0.5mv/1KHz |
| Output balance | <2dB/1KHz |
| Vertical Tracking force | 2gr |
| Trackability | 70μm/2gr |
| Dynamic Compliance | 10 x 10 (-6) cm/dyne |
| Channel separation | 25dB/1KHz |
| Frequency response | 15-25,000Hz |
| Impedance | 30Ω/1KHz |
| Suggested load Impedance | >400Ω |
| Suggested capacitance load | 47pf (Change to 100,150,220pf, subject to your sound preference to reduce higher frequency level) |
| Cartridge weight | 5gr |
| Plastic Body Color | Moss Green |
