Product Summary

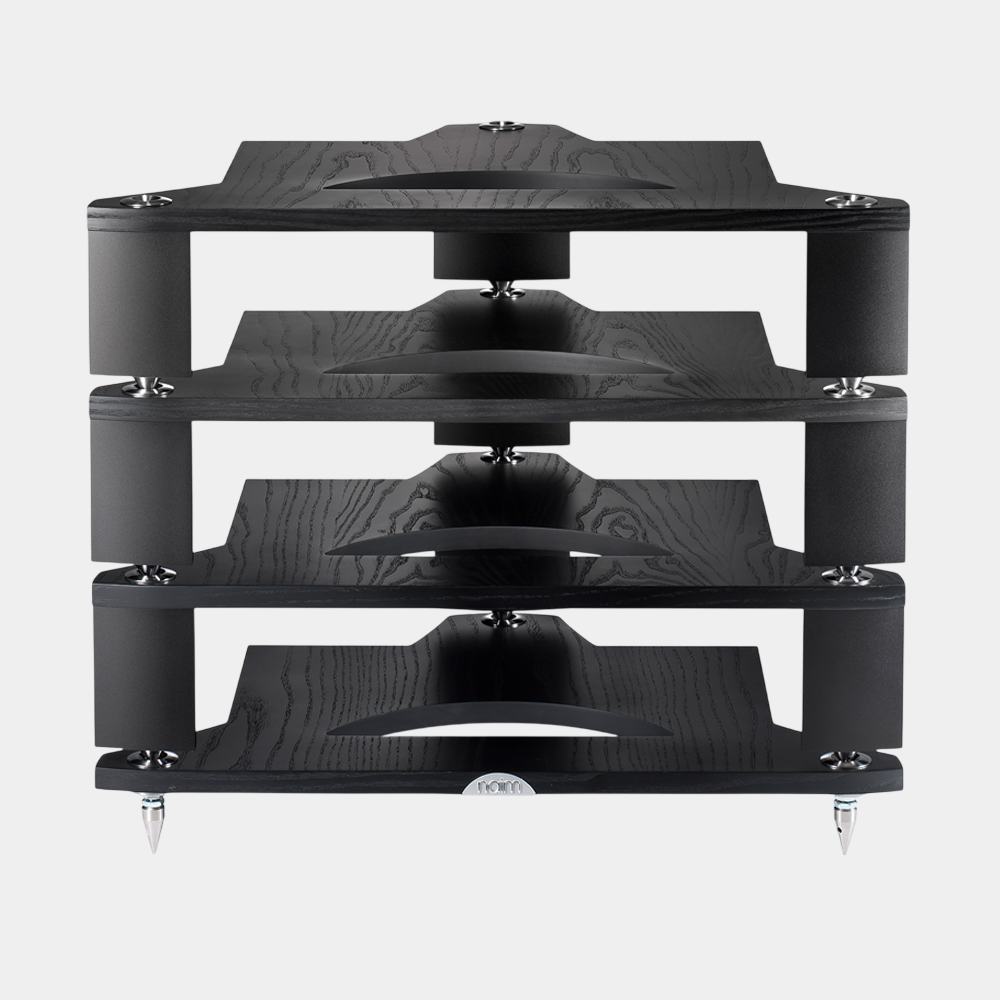

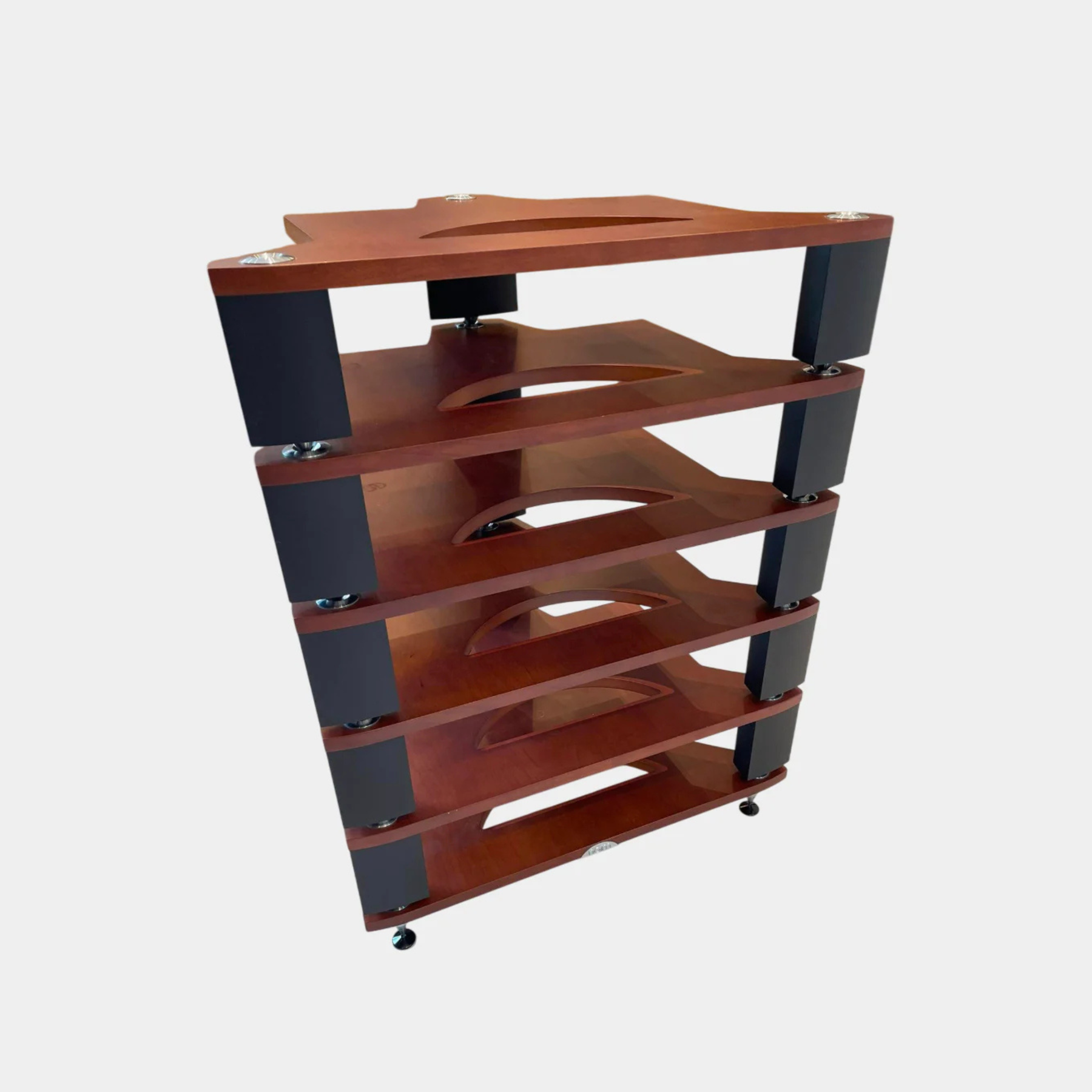

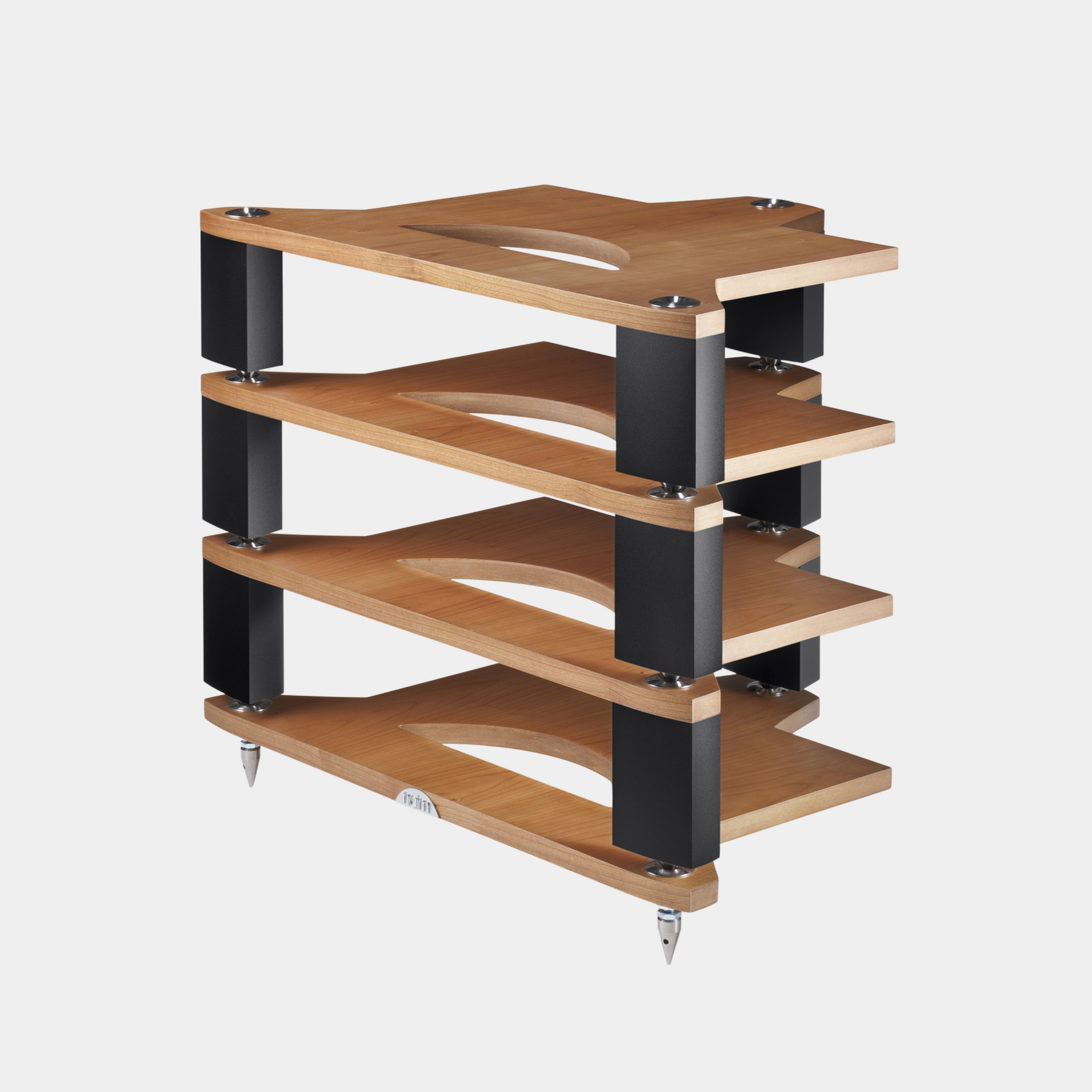

The Naim FraimLite is a premium modular hi-fi rack designed for customers who want much of the performance thinking behind Naim’s Fraim system in a simpler and more accessible form. Rather than being a generic equipment stand, it is engineered specifically to give hi-fi electronics a more stable, less vibration-prone environment so they can perform at a higher level.
A big part of FraimLite’s appeal is that it keeps the core isolation principles of Fraim while stripping the design back to the essentials. It uses the same inter-level cup-and-cone interfaces as Fraim, but supports equipment directly on veneered composite shelves instead of using Fraim’s glass sub-shelf and dual-layer base. The result is a support system that still focuses strongly on reducing microphony and unwanted mechanical interference, while remaining more affordable and easier to configure.
FraimLite is also highly modular, which makes it especially attractive for customers building systems over time. With a choice of wood finishes, silver or black uprights and multiple shelf spacing options, it can be tailored to fit your kit exactly.
Please get in touch for a quote or personalised checkout link for your specific configuration.
Key Benefits
- Purpose-built hi-fi support system designed to help audio equipment perform more cleanly and consistently
- Uses the same inter-level cup-and-cone isolation concept as Naim Fraim
- Modular design makes it easy to start small and expand as your system grows
- Optimised shelf spacing helps reduce magnetic interaction between components
- Direct equipment support on veneered composite shelves keeps the structure simpler while retaining strong performance focus
- Stainless-steel floor spikes help isolate the rack from the floor beneath
- Choice of shelf spacing options makes it easier to fit different Naim and non-Naim components neatly
- Multiple wood and upright finish choices make it easier to match the rack to your room and system
- Can be mixed with full Fraim levels, allowing a clear upgrade path over time
Technical Specifications
Finish & Configuration Options

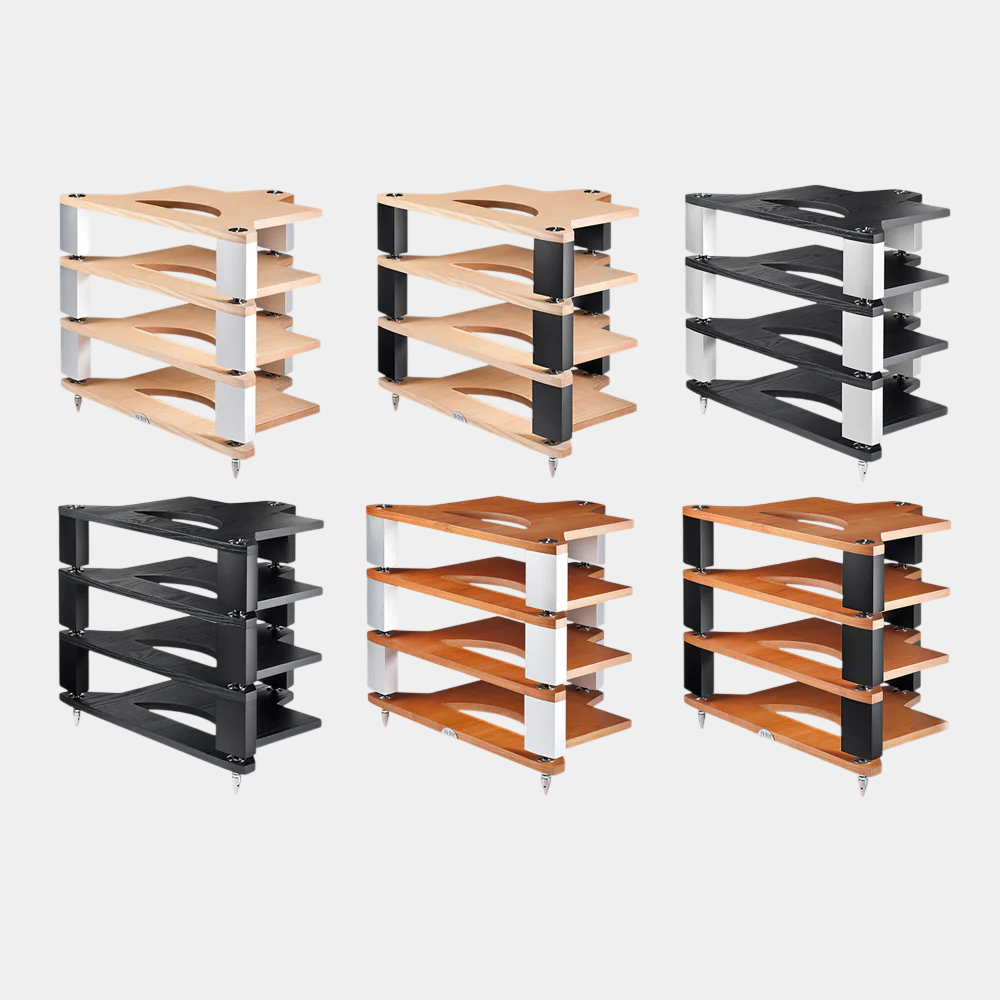

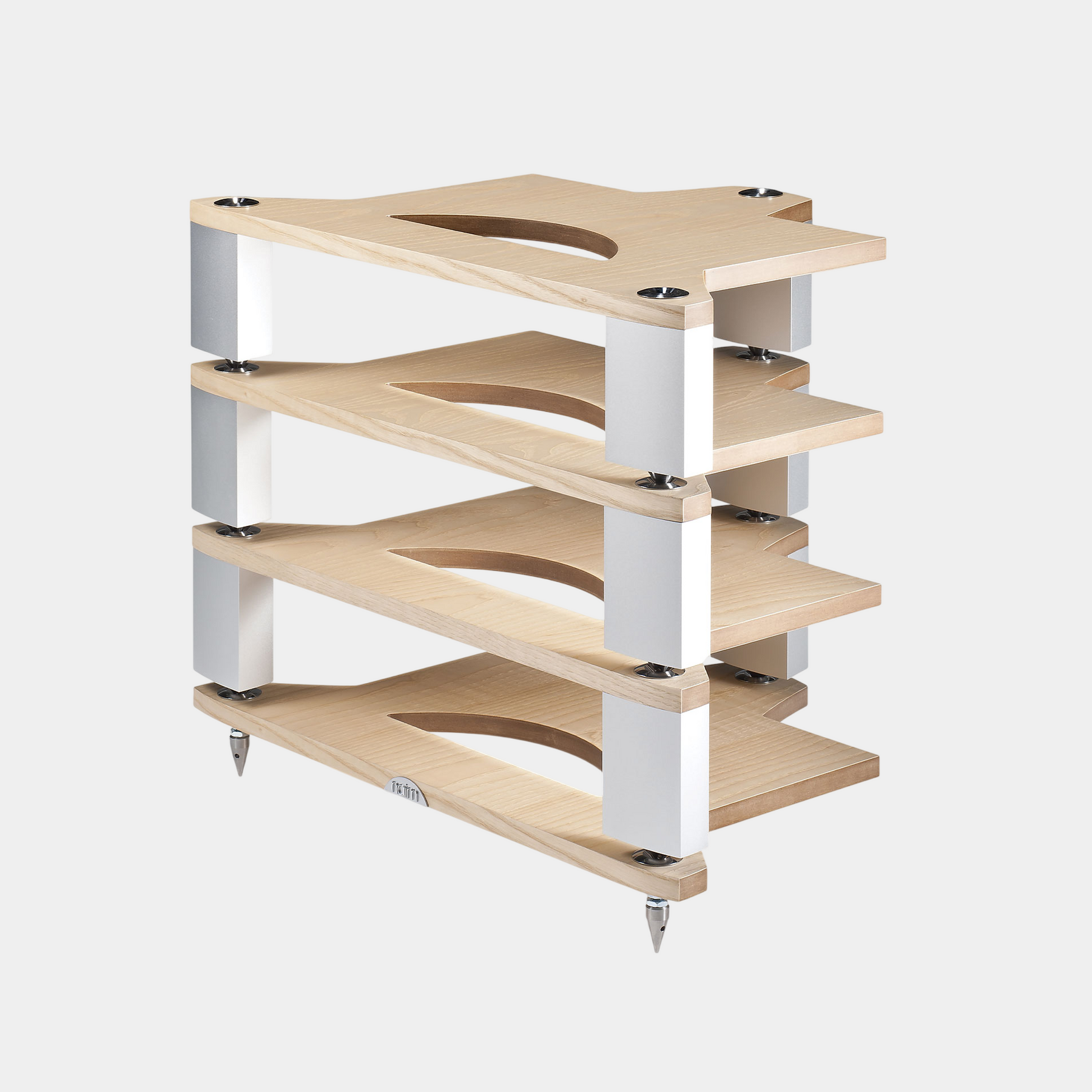

- Wood Finishes: Cherry Untinted, Cherry Tinted, Ash, Black Ash
- Column Finish Options: Silver or Black anodised aluminium
- Shelf Spacing Options: 115mm, 190mm, 264mm
- Configuration: Modular system with base level and additional shelf levels
- Custom Ordering: Can be configured to suit your equipment layout
Construction & Isolation
- Structure: Decoupled support system
- Inter-Level Isolation: Cup-and-cone interfaces underneath shelves
- Shelf Construction: Veneered composite panels
- Base Design: Single-element base level
- Floor Interface: Stainless-steel spikes
- Material Highlights: Stainless steel, anodised aluminium and veneered composite board
Physical Dimensions
- Overall Footprint: 643 x 442 mm (W x D)
- Shelf Size: 452 x 340 mm (W x D)
- Base Level Height: 79 mm
- Standard Level Height: 150 mm
- Medium Level Height: 225 mm
- Tall Level Height: 299 mm
- Available Height Per Level: 131 mm standard, 206 mm medium, 280 mm tall
Weight
- Base Level Weight: 2.8 kg
- Standard Level Weight: 3.5 kg
- Medium Level Weight: 4.1 kg
- Tall Level Weight: 4.75 kg
What’s Included
- Naim FraimLite base and/or shelf levels according to selected configuration
- FraimLite uprights/columns in selected height and finish
- Spikes and assembly hardware
- Product documentation
