Dynavector DRT XV-1s Low-Output Moving Coil Cartridge
- Free Mainland UK Shipping on orders over £100
- Official Hi-Fi Retailer since 1973
- Usually in stock and dispatched in 1-5 working days
We offer free delivery on all orders over £100 to mainland UK. Orders under £100 are subject to a £5 shipping charge.
Delivery is available across mainland UK. If you are located outside mainland UK and would like a shipping quote, please get in touch before placing your order.
We aim to dispatch in-stock items as soon as possible provided that we physically have the stock - but please note that sometimes we have to order from our supplier for certain products, in which case delivery should take place within 1-5 working days of the order being placed.
Tracking details or estimated delivery timescales will be provided once your order has been processed. If there are any delays due to stock availability, we will contact you as soon as possible with the option to wait or receive a full refund.
Please note that certain products may be subject to specific distance selling or delivery regulations. If you are unsure about a product or its delivery terms, we recommend contacting us before purchase.
You can cancel your order within 14 days of receiving your goods, in line with UK distance selling regulations. Once you’ve notified us, you have a further 14 days to return the item. Please contact us by email, phone or in writing before sending anything back.
Items must be returned in original condition and packaging, including all accessories, manuals and any promotional items. The cost of return is your responsibility and we strongly recommend insuring the goods, as refunds cannot be issued for damaged or incomplete returns. If items show excessive handling, are missing components, or cannot be resold as new, a reasonable deduction may be made.
Please note that used headphones (for hygiene reasons) and custom or special-order items cannot be returned. If you need assistance arranging a return, we’re always happy to help.
Product Summary

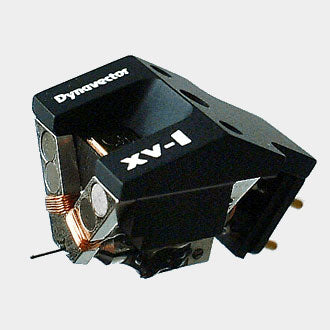

The Dynavector DRT XV-1s is a flagship low-output moving coil cartridge designed to deliver reference-level analogue performance. Building upon the legendary XV-1 design, the XV-1s incorporates advanced magnetic circuit engineering and premium materials to achieve exceptional clarity, dynamics and musical realism.
The cartridge employs a sophisticated multi-magnet design using eight precisely arranged Alnico magnets. This configuration creates an extremely stable and linear magnetic field, allowing the moving coil generator to operate with exceptional accuracy and minimal distortion.
A solid boron cantilever combined with Dynavector’s PF line-contact stylus allows extremely precise groove tracing and outstanding tracking ability. This design retrieves fine musical detail while maintaining smooth and natural high-frequency performance.
To further stabilise the magnetic system, Dynavector integrates an African ebony wood component within the cartridge body. This unique construction helps control resonance and contributes to the cartridge’s balanced tonal character and expansive soundstage.
Designed for use with high-quality moving coil phono stages or step-up transformers, the DRT XV-1s is widely regarded as one of Dynavector’s most accomplished cartridge designs, delivering exceptional imaging, deep bass authority and refined treble detail.
Key Benefits
- Reference-grade low-output moving coil phono cartridge
- Advanced multi-magnet design using eight Alnico magnets
- PF line-contact diamond stylus for precise groove tracing
- 6 mm solid boron cantilever for exceptional rigidity
- Dynavector magnetic flux damping technology
- Square-aperture magnetic circuit for improved coil stability
- African ebony wood stabiliser improves tonal balance
- Outstanding channel separation and stereo imaging
- Designed for high-end moving coil phono stages
- Precision Japanese engineering
Technical Specifications
Cartridge Design
- Type: Low output moving coil cartridge
- Magnet System: Multi-Alnico magnet design with flux damper
- Stylus: PF line-contact diamond (7 × 30 micron)
- Cantilever: 6 mm solid boron
- Coil Wire: High-purity PCOCC copper
Electrical Performance
- Output Voltage: 0.3 mV (1 kHz, 5 cm/sec)
- Internal Impedance: 6 Ohms
- Recommended Load Impedance: >30 Ohms
- Channel Separation: 30 dB (1 kHz)
- Channel Balance: 1.0 dB (1 kHz)
Playback Performance
- Frequency Response: 20 Hz – 20 kHz (±1 dB)
- Compliance: 10 mm/N
- Recommended Tracking Force: 1.8 – 2.2 g
Physical
- Weight: 12.6 g
- Mounting: Standard 1/2 inch headshell mount
- Threaded mounting holes
What’s in the Box
- Dynavector DRT XV-1s moving coil cartridge
- Stylus guard
- Mounting screws and hardware
- Lead wires
- Product documentation
