AT33EV Moving Coil Cartridge
The original model of this stereo cartridge is the AT33ANV, which was available as a special release to celebrate our 45th anniversary. The A33ANV was the first in the AN33 series to feature a Duralumin cantilever, which received wide acclaim for its sound quality. Retaining the basic specification, we present a further improved and evolved model.
The A33EV is a ½ inch, standard mount 0.3 x 0.7 mil elliptical cartridge featuring a tapered Duralumin cantilever which reduces the effective mass of the cartridge, resulting in a more durable cantilever. The Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with a neodymium magnet enhances magnetic energy and PCOCC wire for pure audio transmission.
- Elliptical stylus chip and durable duralumin tapered pipe cantilever
- 10O mid impedance specifications
- Dramatically increased magnetism with neodymium magnets and PCOCC as the coil
- High separation, wide-response dual moving coil
- VC Mold eliminates unnecessary vibrations
- "Hanenite" anti-vibration rubber eliminates unwanted vibrations

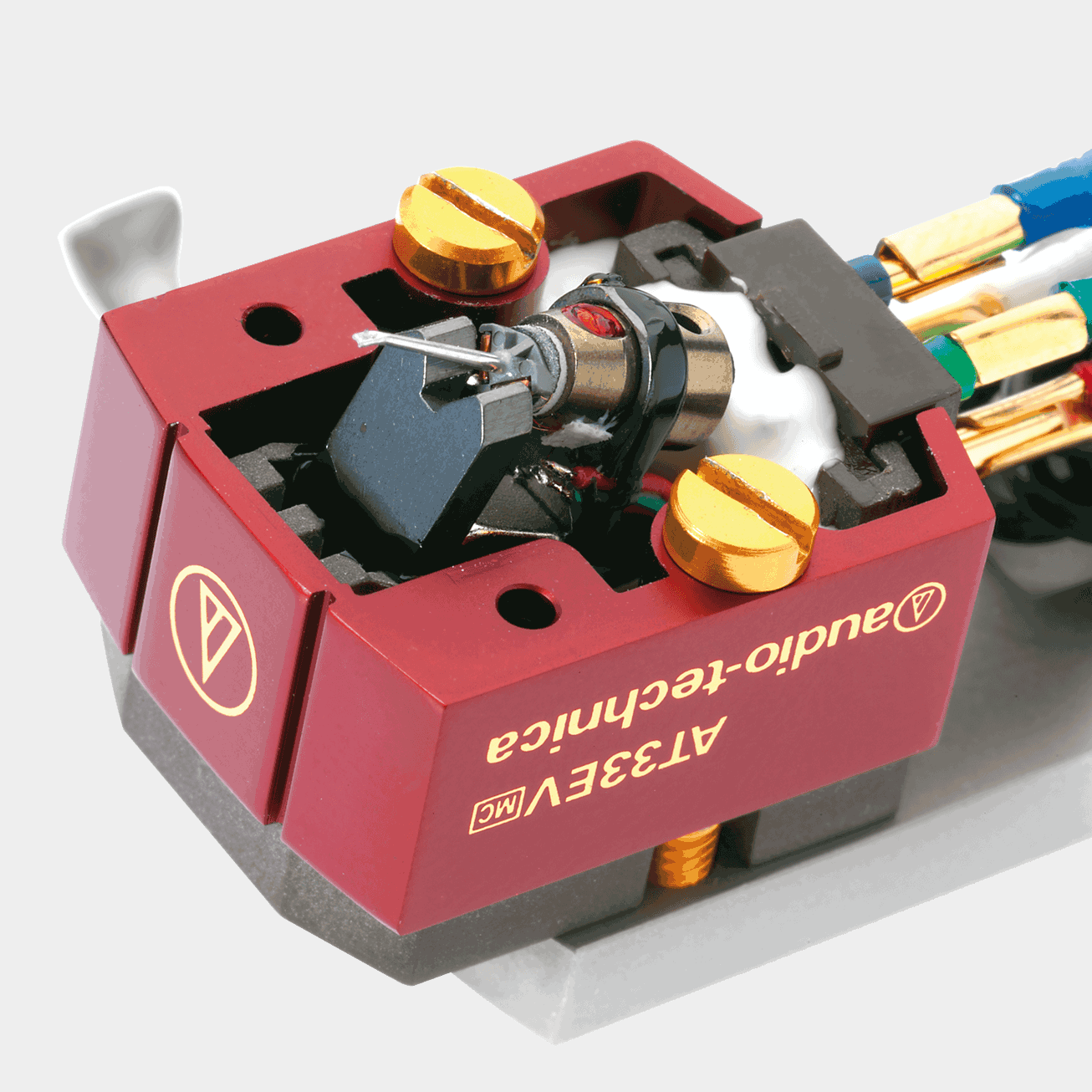

‘Hanenite’ is used in the housing interior and the cantilever fulcrum support to minimize unnecessary vibration, to allow the outstanding basic performance of the dual moving coil to fully express itself.
“Ability to richly reproduce sounds”
Elliptical stylus chip, embedded into a hard duralumin tapered pipe cantilever, has the ability to richly reproduce sounds in the medium and low ranges. With its outstanding machine strength, the duralumin cantilever is tough enough for the job and produces natural sounds without distortion.
SPECIFICATIONS
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 15 - 50,000Hz |
| Channel Separation | 30dB (1kHz) |
| Vertical Tracking Angle | 23° |
| Stylus Construction | Nude Square Shank |
| Recommended Load Impedance | More than 100Ω (when head amp connected) |
| Coil Impedance | 10Ω (1kHz) |
| DC Resistance | 10Ω |
| Coil Inductance | 22µH (1kHz) |
| Output Voltage | 0.3mV (1kHz and 3.54cm/sec.) |
| Output Channel Balance | 0.5dB (1kHz) |
| Stylus Shape | Elliptical |
| Cantilever | Duralumin |
| Static Compliance | 40×10-6cm/dyne |
| Dynamic Compliance | 10×10-6cm/dyne (100Hz) |
| Mounting | 1/2" Centers |
| Dimensions | H16×W16.6×D26.5mm |
| Accessories Included | Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1 |
| Body Material | Aluminium/Synthetic Resin |
| Stylus Curvature Radius | 0.3 x 0.7 mil |
| Terminal Pins | Brass |
| Type | Dual Moving Coil |
| Weight | 6.9g |
