Ortofon OM Replacement Stylus (Various)
- UK Wide Shipping Available
- Long established Official Retailer
- Usually in stock and dispatched in 1-5 working days

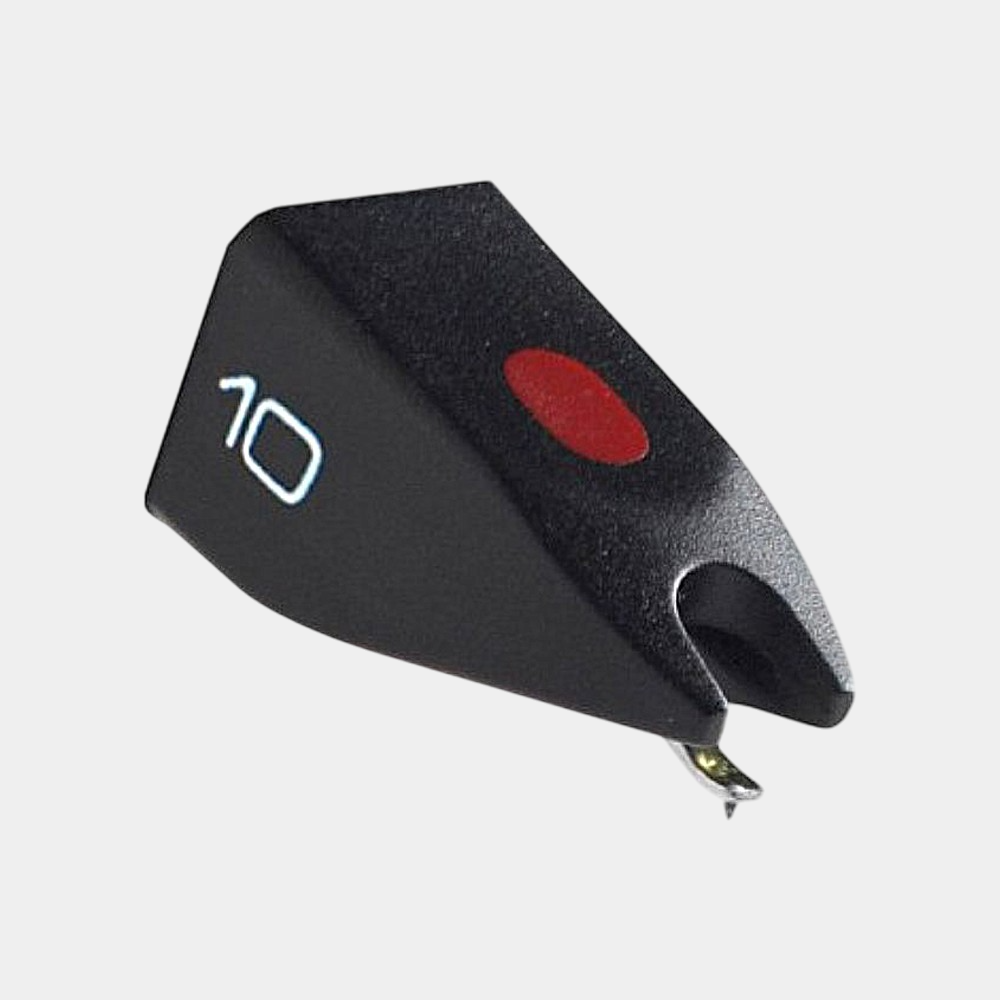

OM 10
Replacement stylus, recommended for the following cartridge models:
Super OM 10, OM 10, OMP 10, OMB 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, TM 10H, LMB 12, SMB 12, LMA 12
Please note, all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Specifications
-
Frequency Response+/− 3.0 dB
-
Tracking Ability (@ 315Hz at Recommended Tracking Force)60 μm
-
Compliance, Dynamic, Lateral20 μm
-
Stylus TypeTipped Elliptical
-
Tracking Force Range1.25 - 1.75 g
-
Recommended Tracking Force1.5 g
-
Tracking Angle20 °
-
Replacement Stylus ForOM 5S, OM 5E, OM 5 Super, OM 10, OM 10 Super, Concorde 10

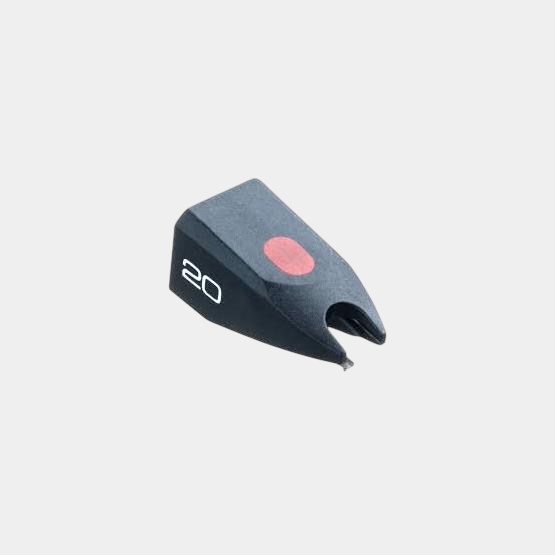

OM 20
Replacement stylus, recommended for the following cartridge models:
Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
Please note, all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Specifications
-
Frequency Response+2.0 | -3.0 dB
-
Tracking Ability (@ 315Hz at Recommended Tracking Force)70 μm
-
Compliance, Dynamic, Lateral25 μm
-
Stylus TypeNude Elliptical
-
Tracking Force Range1.25 - 1.75 g
-
Recommended Tracking Force1.5 g
-
Tracking Angle20 °
-
Replacement Stylus ForOM 5S, OM 5E, OM 5 Super, OM 10, OM 10 Super, Concorde 10, OM 20, OM 20 Super, Concorde 20

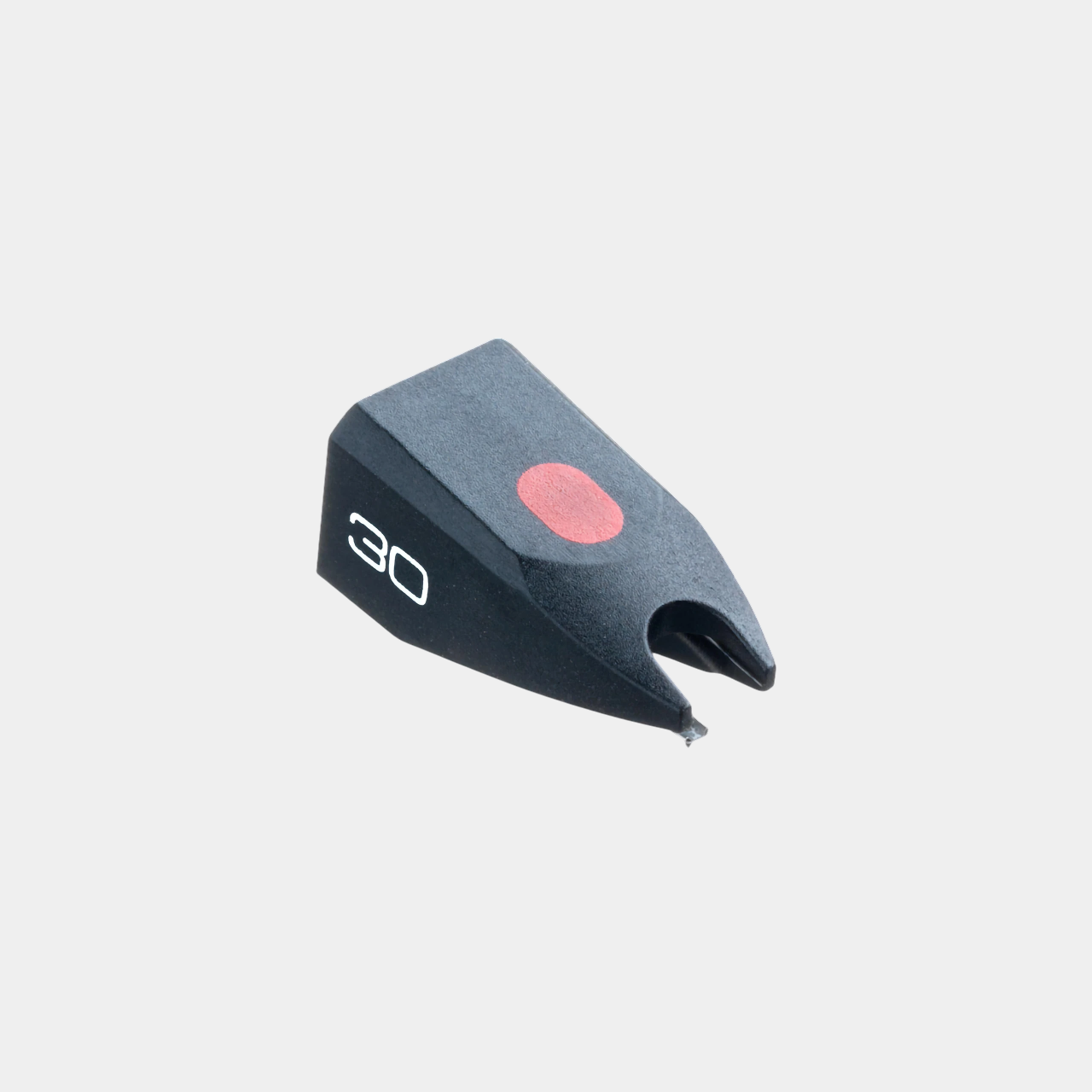

OM 30
Replacement stylus, recommended for the following cartridge models:
Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H,TM 30H
Please note, all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Specifications
-
Frequency Response+2.0 | -3.0 dB
-
Tracking Ability (@ 315Hz at Recommended Tracking Force)70 μm
-
Compliance, Dynamic, Lateral25 μm
-
Stylus TypeNude Fine Line
-
Tracking Force Range1.25 - 1.75 g
-
Recommended Tracking Force1.5 g
-
Tracking Angle20 °
-
Replacement Stylus ForOM 5S, OM 5E, OM 5 Super, OM 10, OM 10 Super, Concorde 10, OM 20, OM 20 Super, Concorde 20, OM 30, OM 30 Super, Concorde 30
OM 40
Replacement stylus, recommended for the following cartridge models:
OM 40, OM 40 GOLD
Please note, all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Specifications
-
Frequency Response+2.0 | -3.0 dB
-
Tracking Ability (@ 315Hz at Recommended Tracking Force)80 μm
-
Compliance, Dynamic, Lateral22 μm
-
Stylus TypeNude FG70
-
Tracking Force Range1.25 - 1.75 g
-
Recommended Tracking Force1.5 g
-
Tracking Angle20 °
-
Replacement Stylus ForOM 5S, OM 5E, OM 5 Super, OM 10, OM 10 Super, Concorde 10, OM 20, OM 20 Super, Concorde 20, OM 30, OM 30 Super, Concorde 30, OM 40, OM 40 Super, Concorde 40

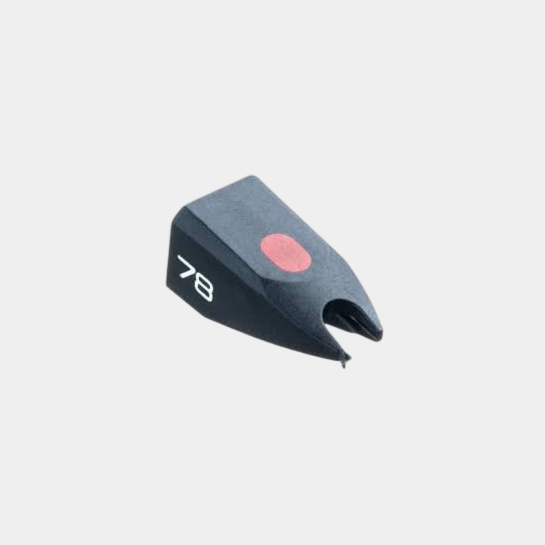

OM 78
Replacement stylus, recommended for the following cartridge models:
All Super OM, OM, OMP, TM, Concorde cartridges for playing 78 r.p.m. records
Please note, all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Specifications
-
Frequency Response+2.0 | -3.0 dB
-
Tracking Ability (@ 315Hz at Recommended Tracking Force)60 μm
-
Compliance, Dynamic, Lateral15 μm
-
Stylus TypeSpherical
-
Tracking Force Range1.75 - 2.25 g
-
Recommended Tracking Force2 g
-
Tracking Angle20 °
-
Replacement Stylus ForAll OM, OM Super and Concorde models
